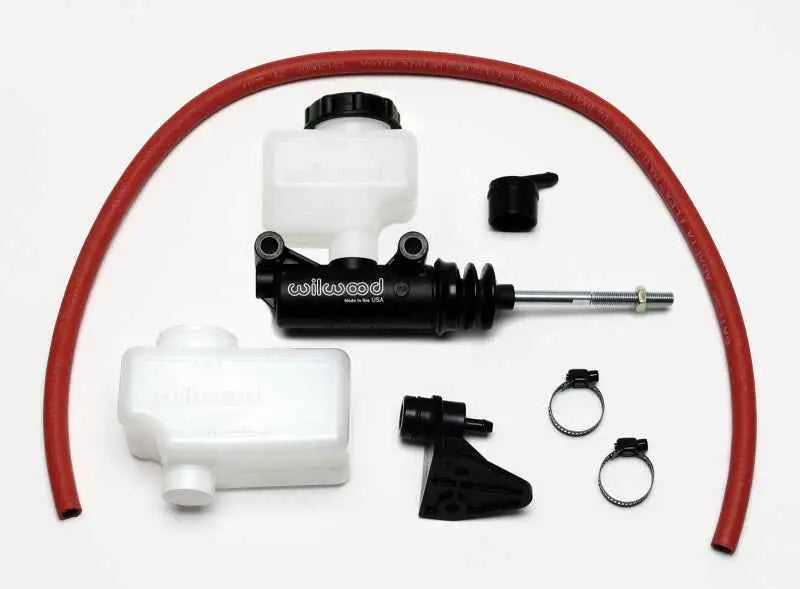

Wilwood Short Remote Side Mount M/C Kit 3/4in Bore

Experience unparalleled performance with the Wilwood Short Remote Side Mount M/C Kit, designed specifically for applications where space is at a premium. This master cylinder kit offers the robust output of a full-size master cylinder while maintaining a compact form factor.

Key Features:

• Ultra-Short Design: At just 3.37 inches, the compact body of the master cylinder allows for an impressive 2.16 inches of extra clearance between the mounting boss and the fluid outlet.
• Side Mounting Capability: The innovative design includes integral side mounting lugs with a 3.00-inch center distance, eliminating the need for a traditional mounting flange and enabling installation in tight spaces.
• Generous Stroke Capacity: With a piston stroke of 1.12 inches, this kit exceeds the stroke capacity of most standard master cylinders, providing reliable and consistent braking performance.
• Optimized Fluid Outlet Port: The 1/8" NPT fluid outlet port is strategically located at the top radius of the cylinder bore, significantly reducing the chances of trapped air in your braking system.
• Adaptable Reservoir Options: The enhanced fluid inlet port not only accommodates the included standard reservoir but also features 11/16-20 internal threads for custom reservoir arrangements.
• Durable Finish: Crafted from black E-Coated aluminum, the body of this master cylinder resists corrosion and ensures a long-lasting and robust finish.

Benefits:

• Perfect for racing or street applications where space constraints are a significant concern.
• Easy installation in various configurations, enhancing versatility and usability.
• Reliable performance under pressure, ensuring safety and responsiveness.

Use Cases:

This master cylinder kit is ideal for:

• Custom builds and performance vehicles
• Restoration projects with limited mounting space
• Applications requiring high-performance braking systems

Upgrade your vehicle's braking system with the Wilwood Short Remote Side Mount M/C Kit 3/4in Bore and experience the perfect blend of compact design and high performance. Don’t let limited space compromise your safety and control.
