Renogy Easy To Install Battery Monitor RBM500-G3-US - 500A Shunt

Renogy RBM500-G3-US Easy To Install

The Renogy Battery Monitor is designed to monitor performance for most kinds of batteries. Its high-precision measurements will eliminate the guesswork from battery usage and improve your battery bank's overall performance and longevity. It is a universal battery monitor that you can use with voltage ranging from 10 Volt to 120 Volt and up to 500 Ampere. Low power Consumption Design, The backlight will automatically shut down when the charging current is <100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off. This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

Features & Benefits

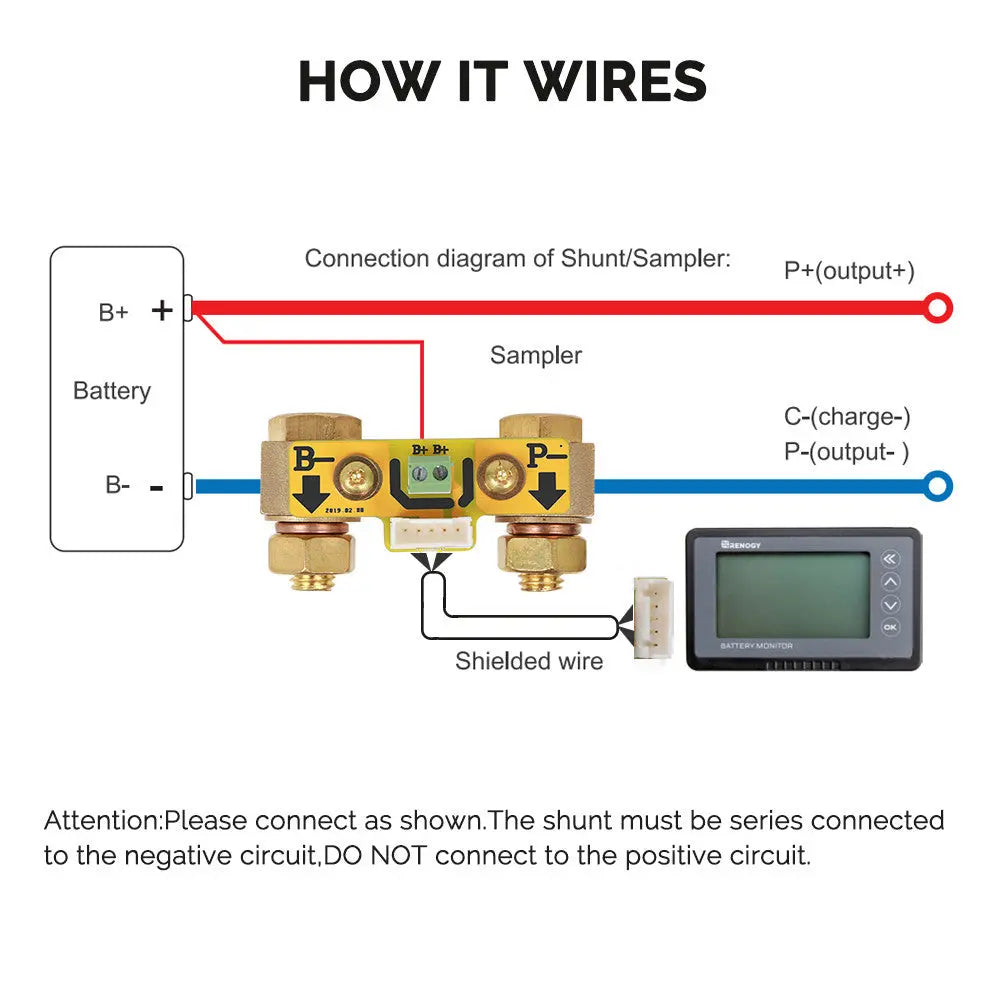

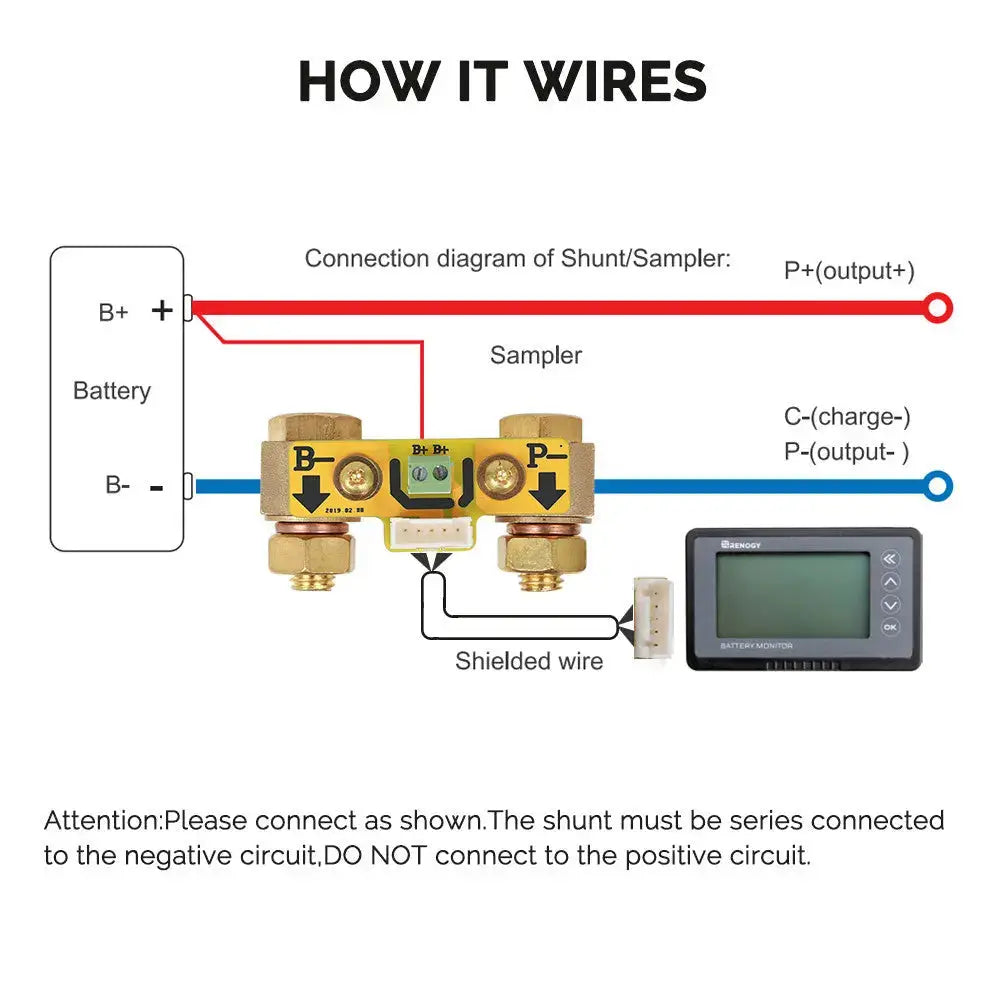

• Shunt type monitor design provides much more accurate real time voltage and current draw measurement
• With high and low capacity alarm functions, our battery monitor with shunt will alarm, and backlight and voltage value will flash simultaneously to protect the batteries from getting over discharged

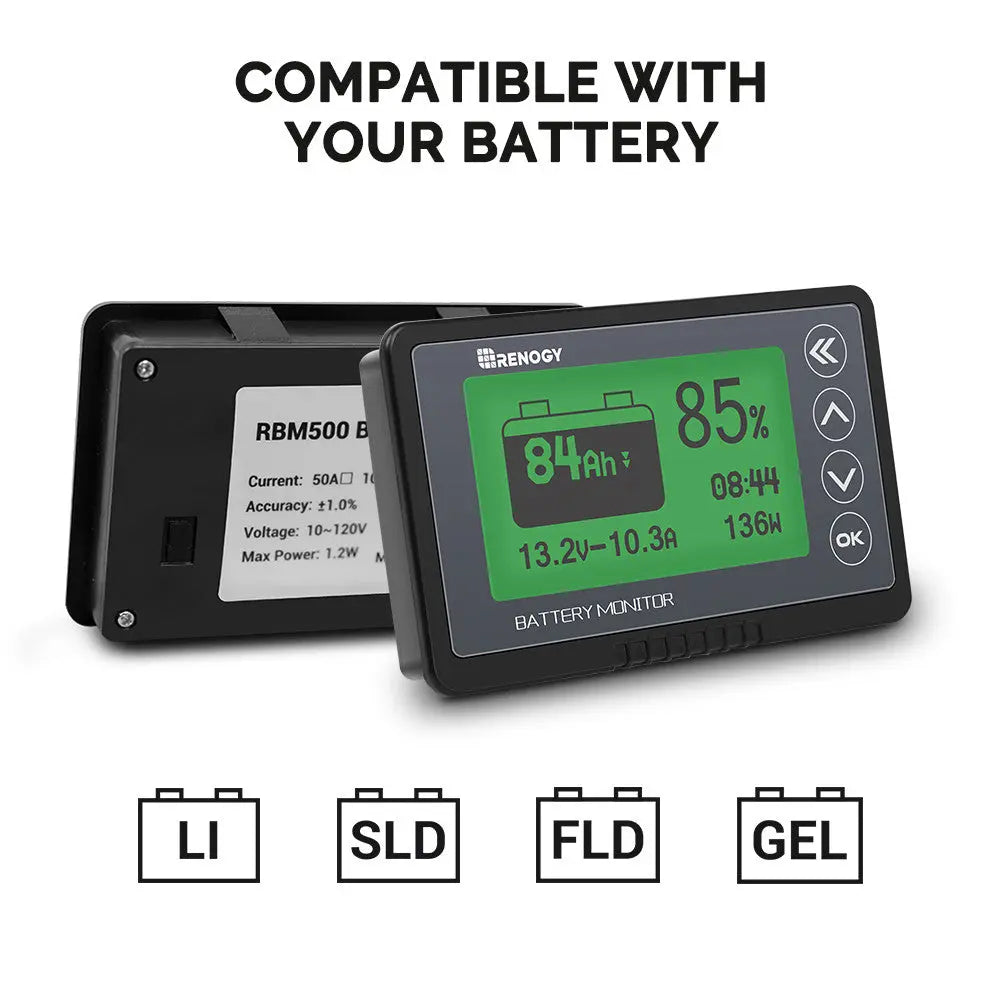

• Compatible with various battery types, offering lead acid (agm, gel), lithium iron phosphate, lithium-ion, nickel-metal hybrid

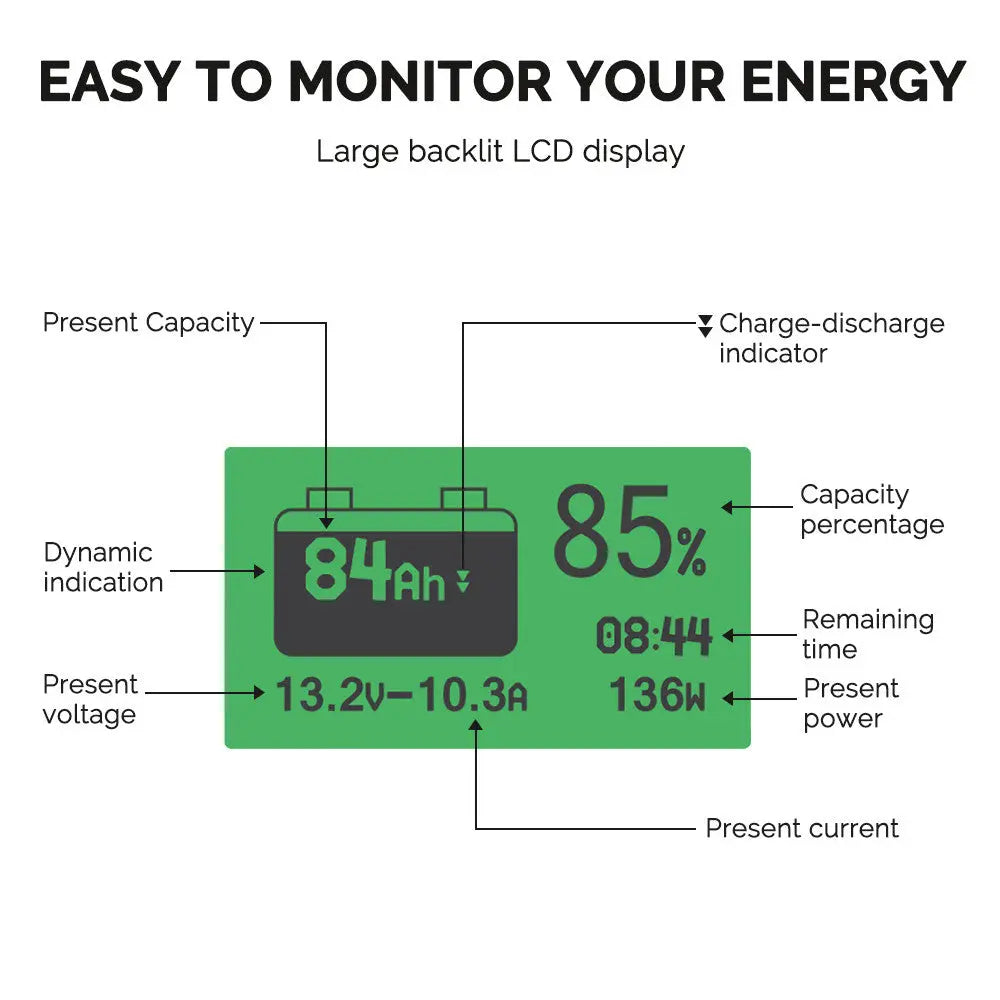

• Displays multiple electronic parameters, offering voltage, current, consumed power, battery capacity, and battery degradation rate with a customized brightness high-definition backlight display
• Transparent shunt holder makes it easier to mount the shunt and the 20 foot shielded cable allows to monitor the battery status from a distance
• Easy To Install
• Limited 2 year warranty

Specifications
