Parallel Diagnostic System 3x18 Pin Adapter

Parallel Diagnostic System 3x18 Pin Adapter

Unlock the full potential of your motorcycle's electronic systems with the Parallel Diagnostic System 3x18 Pin Adapter. This innovative diagnostic tool is specifically designed for precise measurement of input and output signals from the electronic fuel injection module (EFI) and various other modules, ensuring that you have the insights needed for optimal performance.

Key Features:

• Real-Time Diagnostics: Conduct measurements on running engines for immediate feedback on performance.

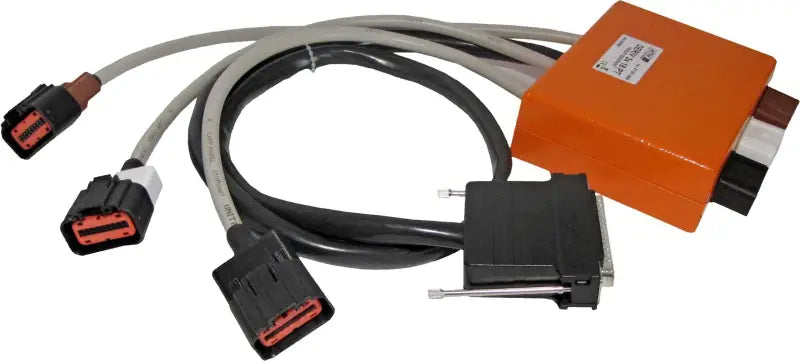

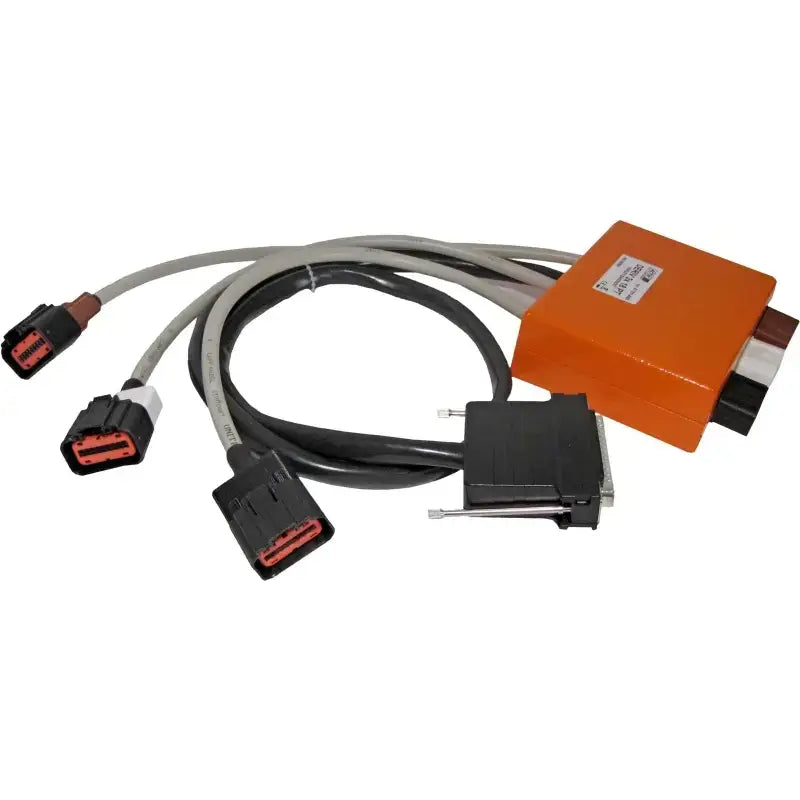

• Complete System Integration: The system includes a wiring harness adapter and a breakout box, allowing seamless integration with your motorcycle's existing wiring.
• Organized Monitoring: All connector pins of the EFI module are clearly laid out on the breakout box, making it easy to access critical monitoring points.
• Comprehensive Testing: Measure signals and waveforms from all systems and actuators, ensuring thorough diagnostics.
• Quick Wiring Checks: Disconnect the ECU from the breakout box for a rapid assessment of wiring harness integrity, including continuity and leakage current tests.

Benefits:

• Enhance the performance of your motorcycle by accurately diagnosing electronic issues.
• Save time and effort with straightforward installation and user-friendly design.
• Improve overall reliability with proactive monitoring of critical electrical systems.

Use Cases:

• Professional motorcycle mechanics looking for efficient diagnostic solutions.
• Enthusiasts and DIYers who wish to monitor and improve their bike’s electronic systems.
• Anyone needing reliable checks for wiring integrity and potential electrical issues.

Take the guesswork out of motorcycle diagnostics with the Parallel Diagnostic System 3x18 Pin Adapter. Equip yourself with the tools necessary to ensure your engine runs smoothly and efficiently.
