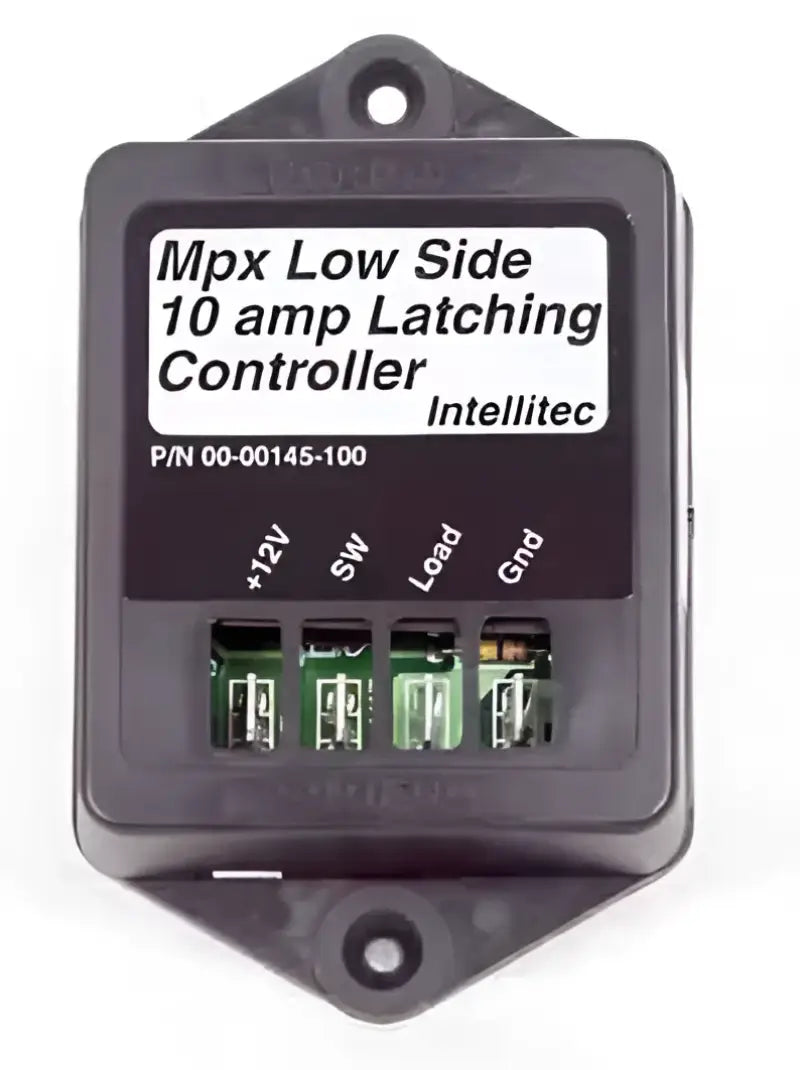

00-00145-100 Intellitec Fresh Water Pump Control Module

The 00-00145-100 Intellitec Fresh Water Pump Control Module is a versatile Monoplex water pump controller designed for 12 Volt DC systems. Primarily used to control the domestic water pump in RVs or boats, it can also be utilized for a wide range of applications such as lighting, other pumps, and fans, where switching on the ground side is convenient.

Key Features:

• Operates as a low side remote switch in 12 Volt DC systems
• Minimizes the use of heavy gauge wire throughout the coach
• Allows signaling from multiple points along the single wire
• Capable of operating multiple switch points
• Can accommodate up to two LED power indicators on the single wire
• Compatible with inexpensive switches providing momentary contact to ground
• Reduces standby current for superior performance
• Comes in a black color and is packaged in a plastic enclosure for easy mounting
• Compatible with domestic water pumps, lighting, and fans
• Operates within a voltage rating of 10 to 16 Volts

The Monoplex water pump control module significantly reduces labor and initial installation costs compared to conventional switching, making it a cost-effective and reliable choice for controlling various loads in your vehicle or vessel. Backed by a limited 90-day warranty, it offers a reliable solution for your control needs.
