GPI 142100-01

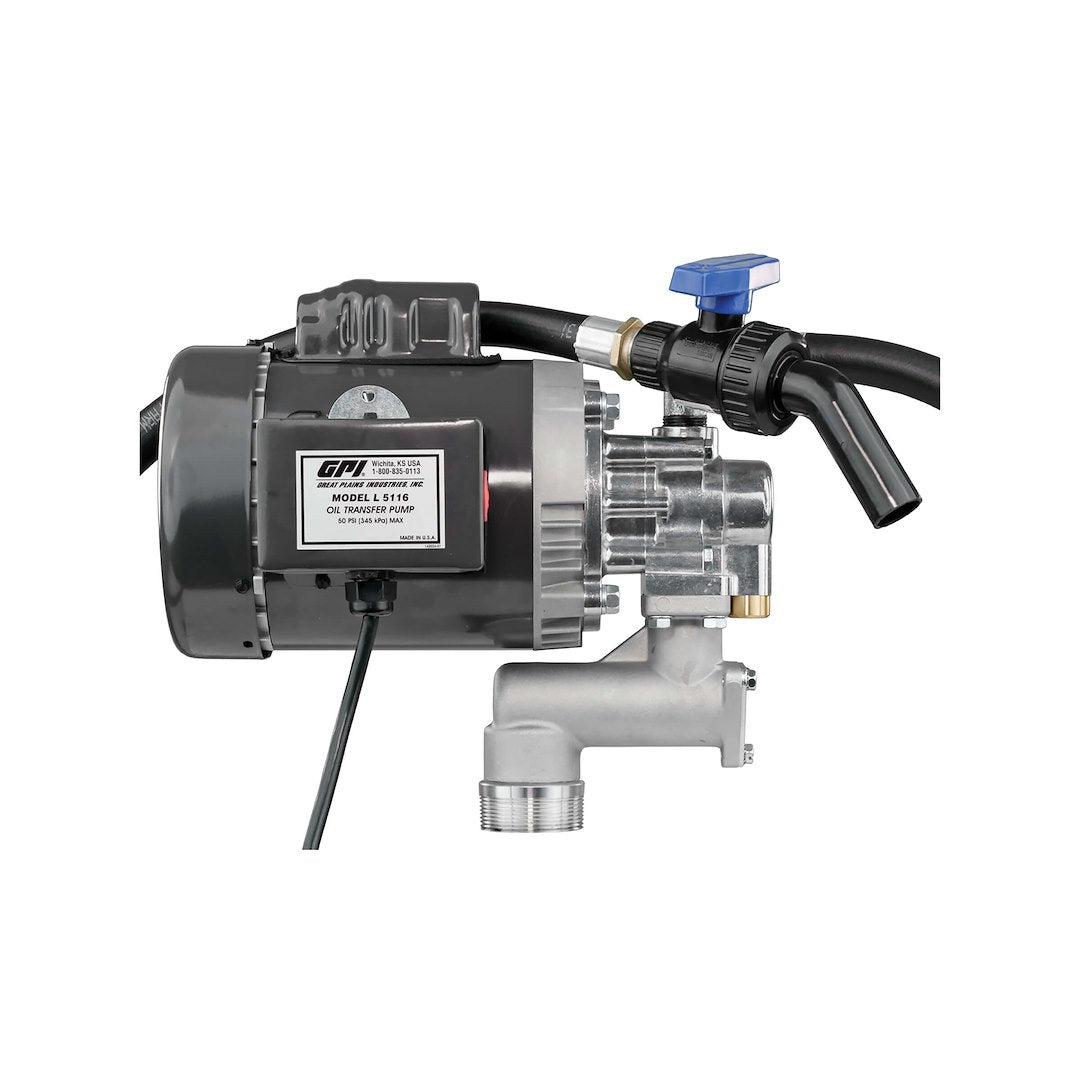

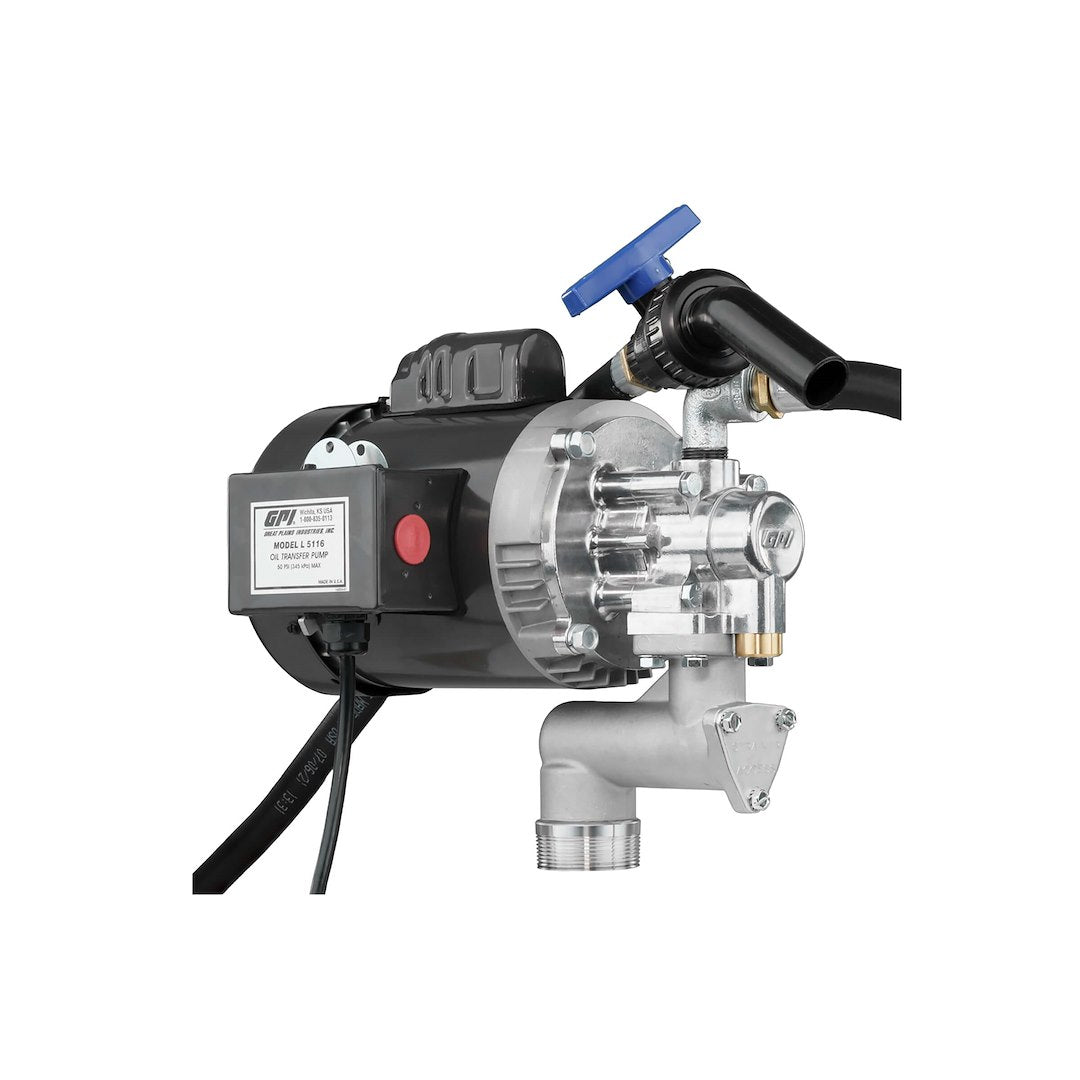

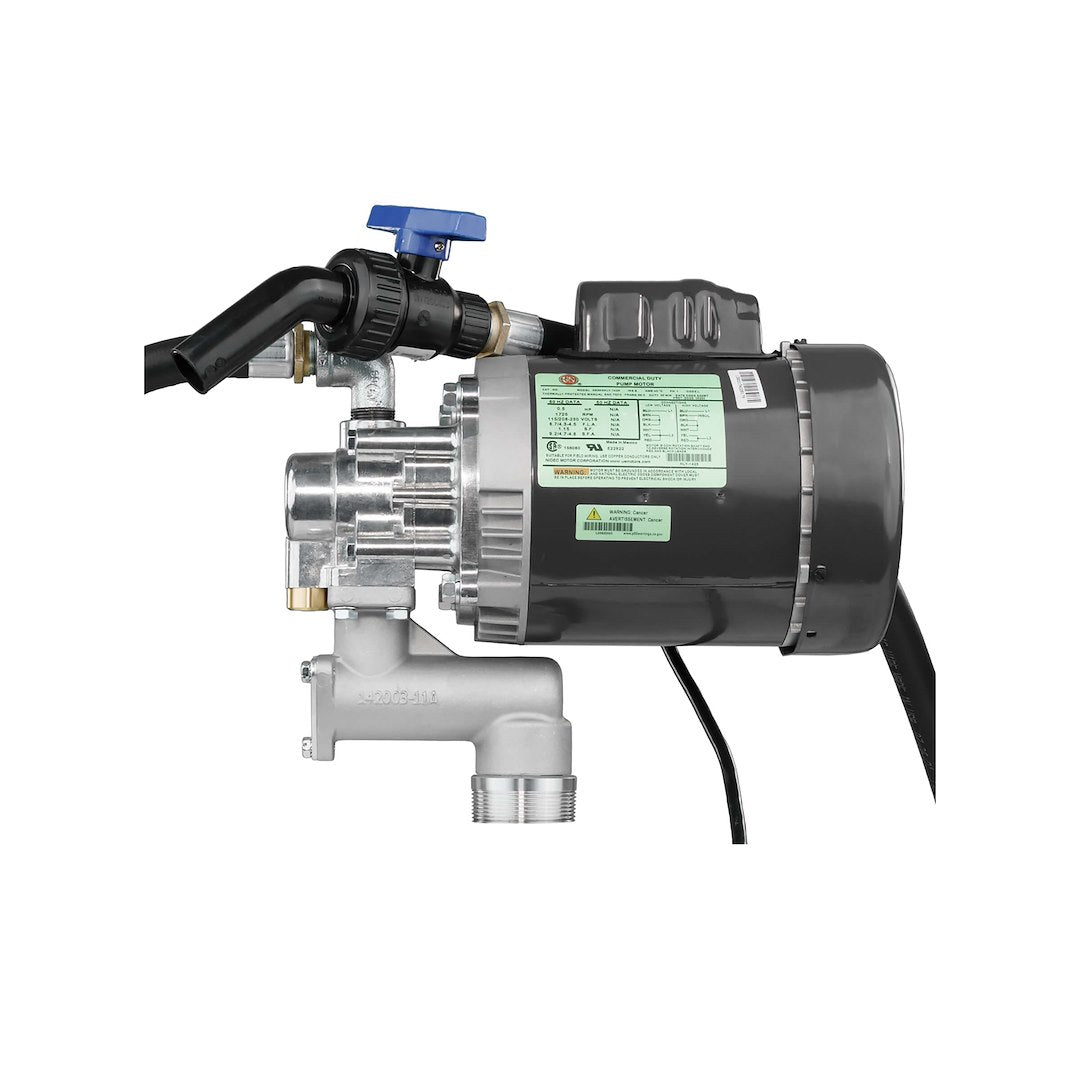

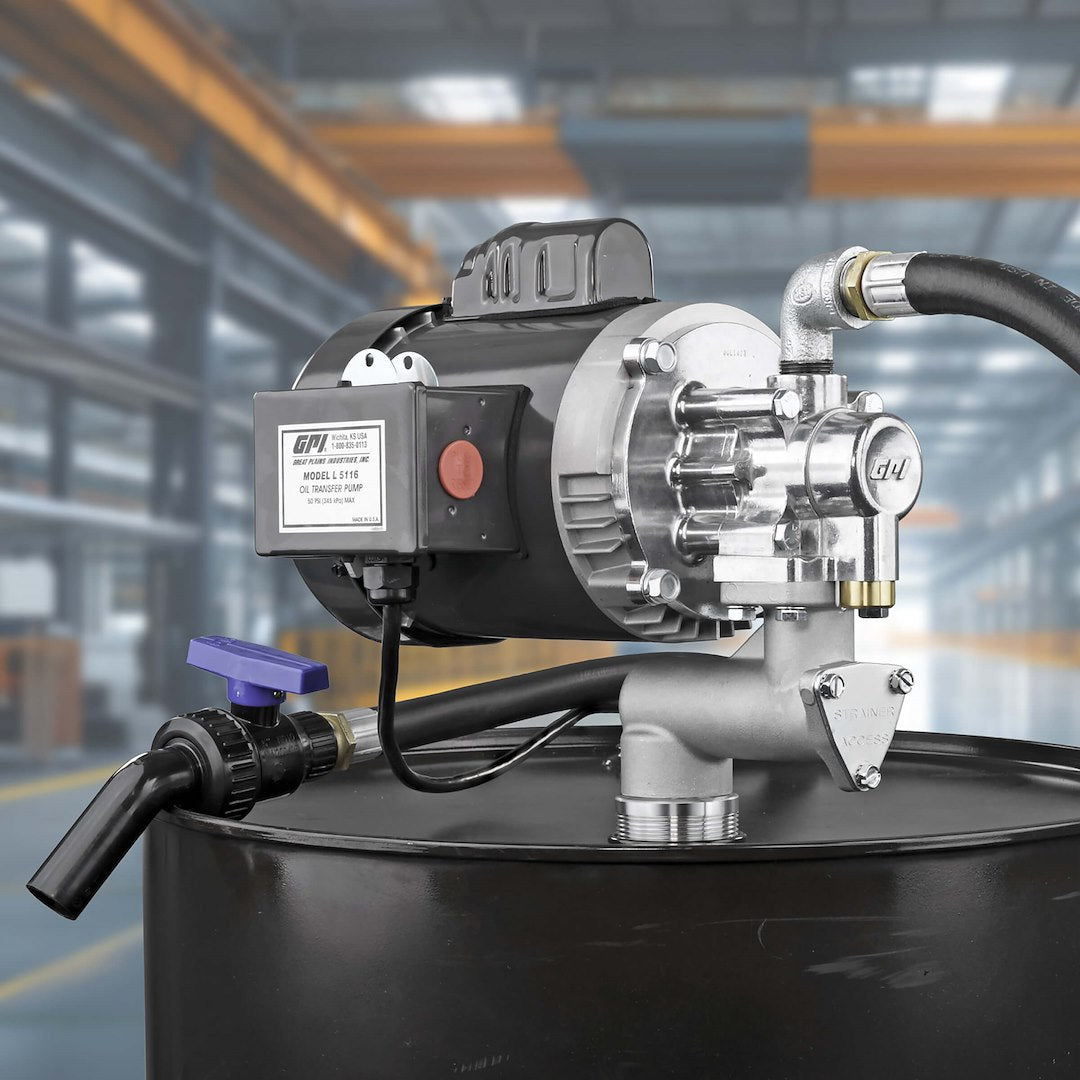

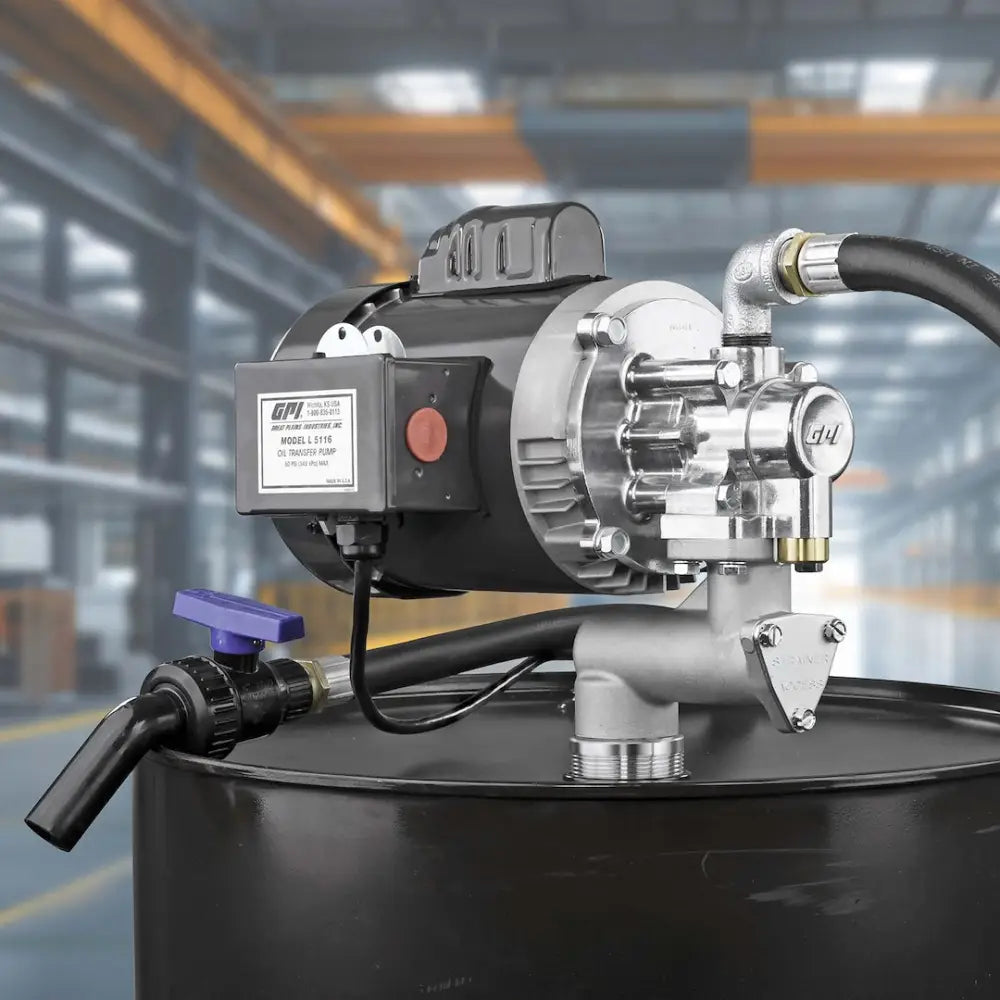

This GPI L5116 heavy duty oil pump features a gerotor gear design and durable, light weight cast aluminum housing. The rugged 115-VAC motor delivers flow rates up to 16 QPM (4 GPM) and is engineered for long life and limited maintenance. The GPI L5116 oil pump is ideal for use with new oil (up to 90 wt.), waste oil, hydraulic fluid, antifreeze or other non-flammable oil-based solvents. Comes complete with ball valve nozzle, hose, adjustable suction pipe and three-prong plug-in. Motor is a UL recognized component and CSA approved. 1-yr warranty.

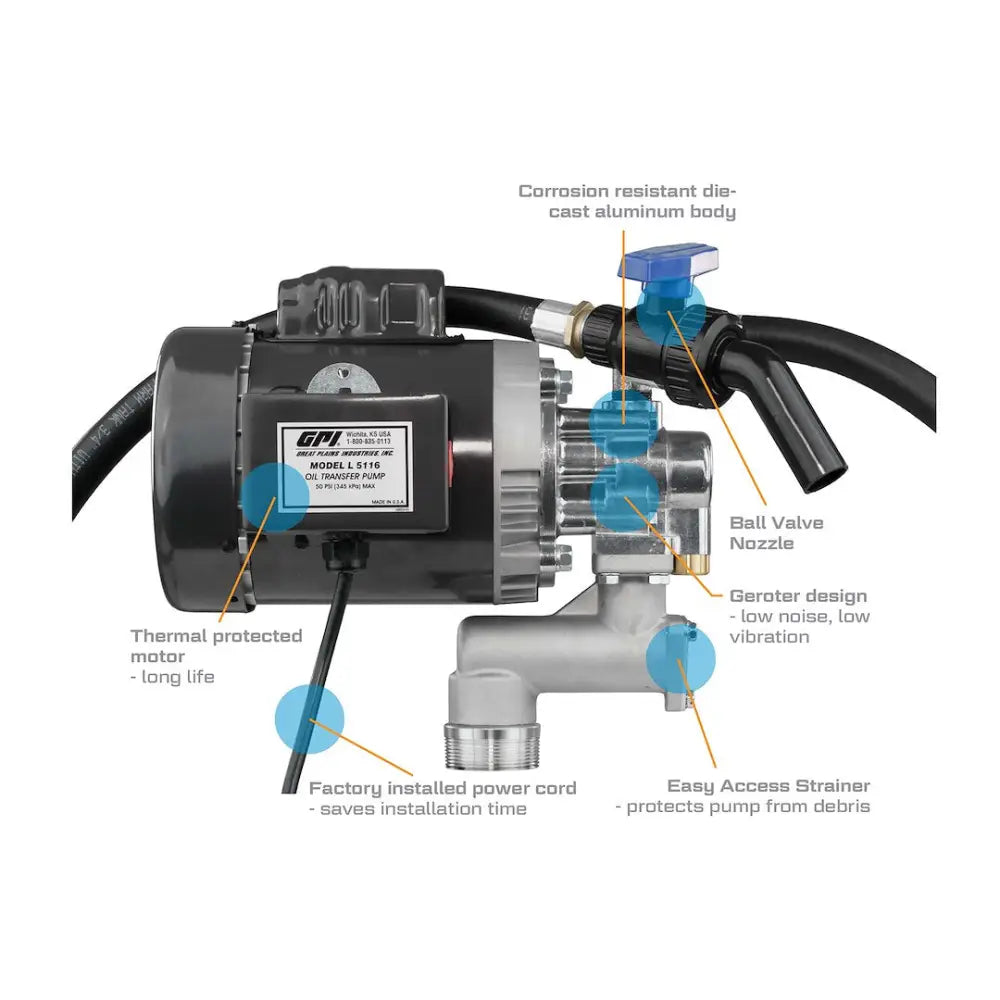

Features & Benefits

• Weather-resistant, thermally protected 05 horsepower motor is designed for long life and limited maintenance
• Specifically designed for use with high viscosity fluids
• Thermal limiting motor protection extends motor life
• Weight centering inlet base reduces tank stress includes pressure relief valve and provides easy strainer access
• Wetted materials: aluminum, stainless steel, brass, steel, nitrile rubber and zinc plated steel
• 075 inch ball valve nozzle, 075 inch x 8 foot hose, 3 foot power cord with three-prong grounded plug, adjustable suction pipe (15 inch to 40 inch) and 90 degree street elbow
• For use with oil (up to 90 weight), waste oil, hydraulic fluid, antifreeze and non-flammable oil-based solvents
• Motor is ul recognized component and csa approved
• Pre-installed power cord greatly reduces assembly and installation time
• Limited 1 year warranty

Specifications
