Factor 55 0005407 Crossbeam Shackle Orange for Maximum Strength
Factor 55 0005407 Crossbeam Shackle Orange for Maximum Strength
Available in stock (22)
Couldn't load pickup availability

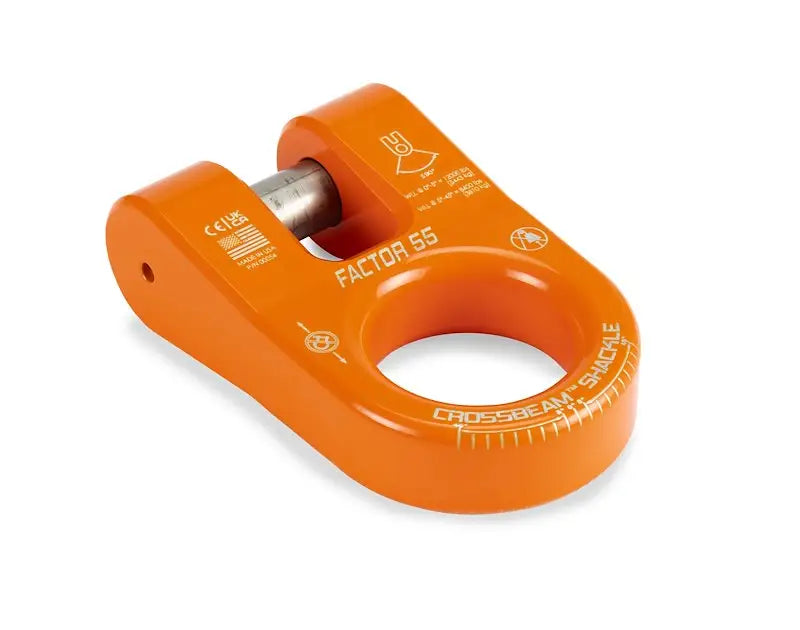

The Crossbeam Shackle is Factor 55’s dedicated rigging attachment point, machined in the USA from T6-6061 Kaiser billet aluminum. This one is the orange version; Factor 55 offers the same shackle in eight colours so it can be matched to the rest of a recovery kit.
It carries two working load limits, and which one applies depends on the angle of the pull. Between 0 and 5 degrees the working load limit is 12,000 lb (5,443 kg). Between 5 and 45 degrees it is 8,400 lb (3,810 kg). Both figures are set with a 5:1 safety factor. Factor 55 laser-engraves the angle chart and the working load limits onto the shackle itself, so the numbers can be read while rigging rather than looked up. Work to the limit for the angle you are actually pulling at, not the straight-line figure.
The large circular hole takes synthetic rigging such as soft shackles, and a flat inner edge suits steel shackles. It is sized for hooks as well, including the Factor 55 UltraHook. A snap-ring attachment holds the shackle semi-permanently in place once mounted. Factor 55 gives the weight as 39 ounces (1,106 grams) and states the shackle is CE and UKCA compliant.
The packed carton weighs 2.44 pounds and measures 7.75 × 5.5 × 2.25 inches. Those are shipping-package figures rather than the shackle’s own dimensions.
Features & Benefits
- Working load limit 12,000 lb (5,443 kg) for pulls between 0 and 5 degrees
- Working load limit 8,400 lb (3,810 kg) for pulls between 5 and 45 degrees
- Both working load limits set with a 5:1 safety factor
- Angle chart and working load limits laser-engraved on the shackle
- T6-6061 Kaiser billet aluminum, machined in the USA
- Snap-ring attachment for semi-permanent mounting
- Large circular hole for synthetic soft shackles, with a flat inner edge for steel shackles
- Sized for hook attachment, including the Factor 55 UltraHook
- CE and UKCA compliant
Specifications
| Brand | Factor 55 |
|---|---|
| Manufacturer Part Number | 0005407 |
| Colour | Orange |
| Working Load Limit (0–5°) | 12,000 lb (5,443 kg) |
| Working Load Limit (5–45°) | 8,400 lb (3,810 kg) |
| Safety Factor | 5:1 |
| Material | T6-6061 Kaiser billet aluminum |
| Shackle Weight | 39 oz (1,106 g) |
| Attachment | Snap ring |
| Compliance | CE / UKCA |
| Country of Manufacture | United States |
| UPC | 012748116479 |
| Package Weight | 2.44 lb |
| Package Dimensions | 7.75 × 5.5 × 2.25 in |
Frequently Asked Questions
What is the working load limit of the Crossbeam Shackle?
There are two, and the pull angle decides which applies. Factor 55 rates it at 12,000 lb (5,443 kg) for pulls between 0 and 5 degrees and 8,400 lb (3,810 kg) for pulls between 5 and 45 degrees. Both are set with a 5:1 safety factor.
Does the colour change the rating?
No. Factor 55 publishes the same two working load limits for every colour in the Crossbeam range, and the orange shackle carries the same 12,000 lb (5,443 kg) and 8,400 lb (3,810 kg) limits as the rest. Colour is there so the shackle can be matched to the other Factor 55 gear on the vehicle.
Why is the angled working load limit lower?
A pull that is off-axis loads the shackle differently from a straight-line pull, so Factor 55 publishes a separate limit for it. The angle chart is laser-engraved on the shackle next to the working load limits, so you can check it against the rigging in front of you.
What can be attached to it?
The large circular hole is sized for synthetic rigging such as soft shackles, and the flat inner edge suits steel shackles. It also takes hooks, including the Factor 55 UltraHook.
How is it mounted?
With a snap ring, which holds it semi-permanently in place on the mounting point rather than needing to be threaded on and off each time.
What do the 2.44-pound and 7.75 × 5.5 × 2.25-inch figures describe?
Those are the packed carton. Factor 55 gives the shackle’s own weight as 39 ounces (1,106 grams).
