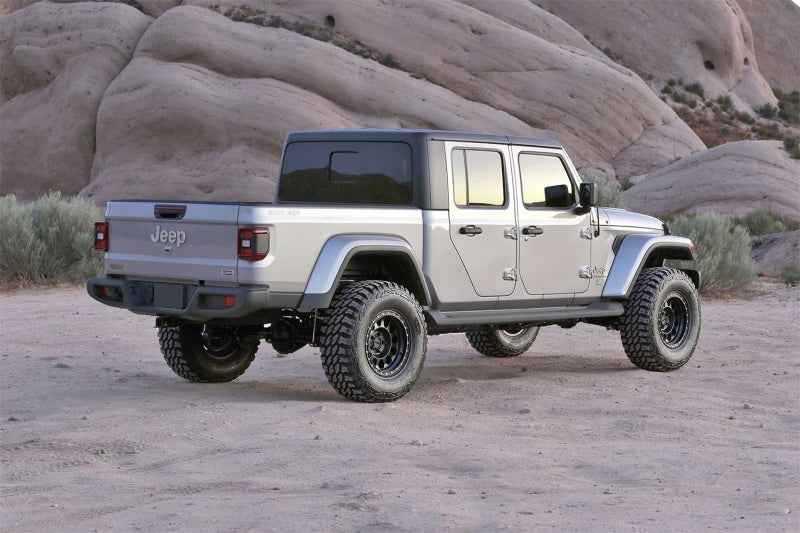

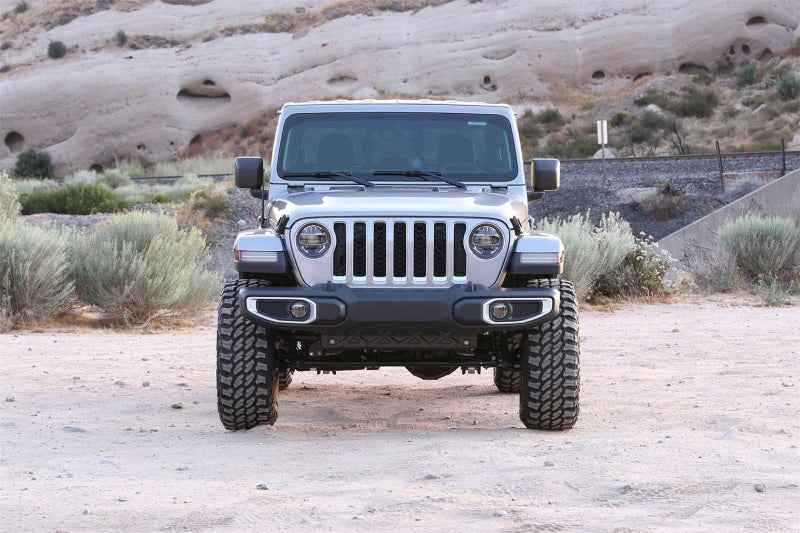

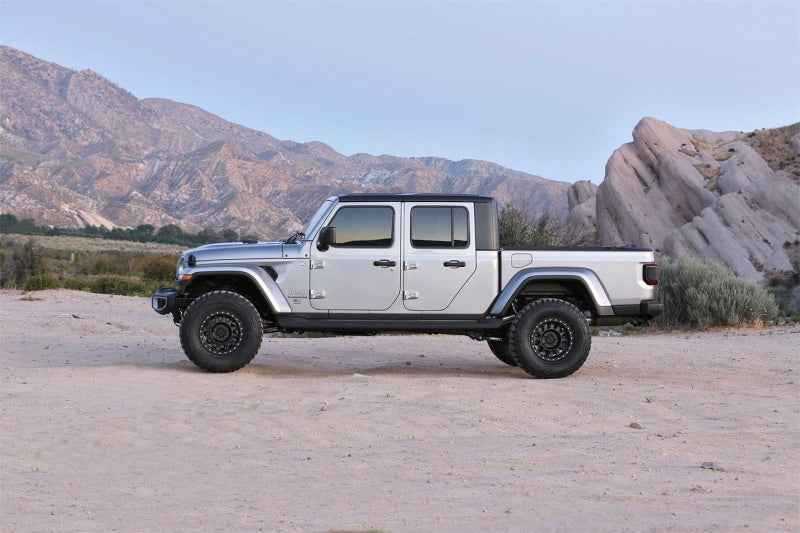

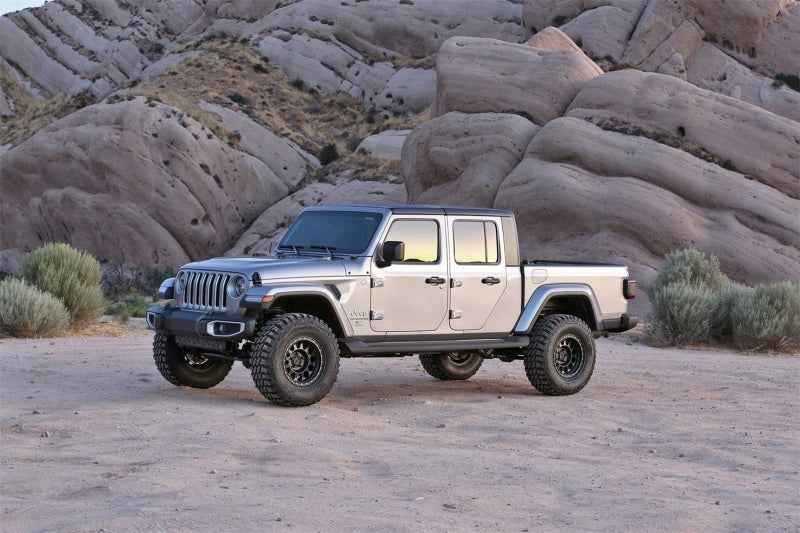

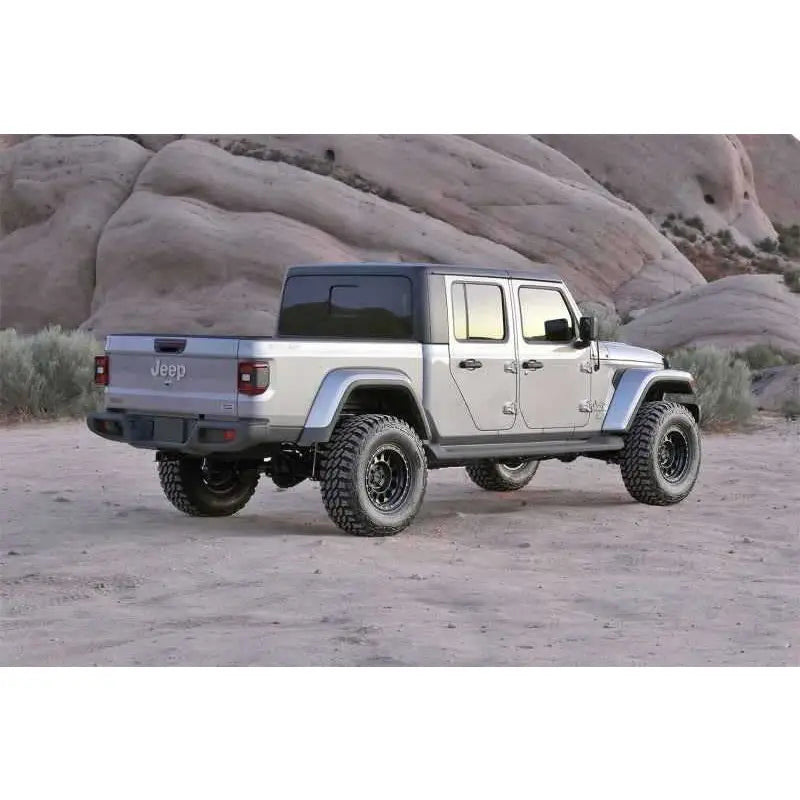

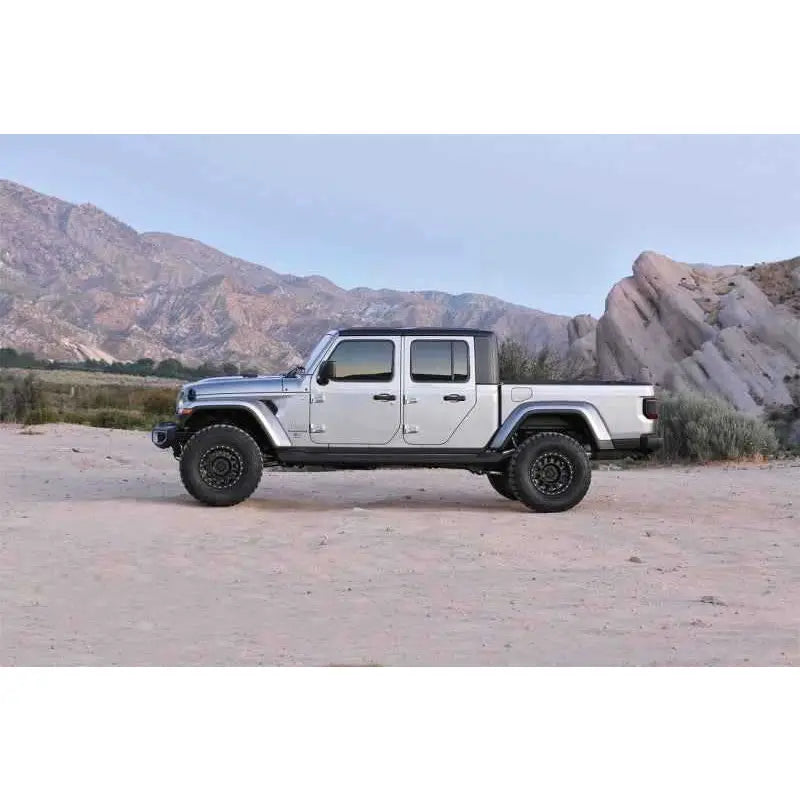

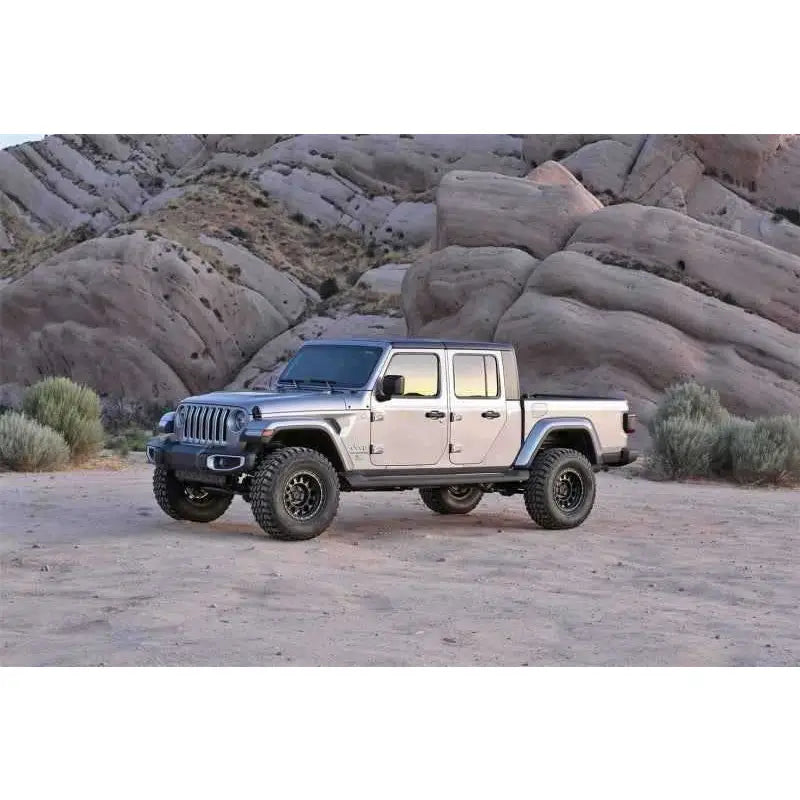

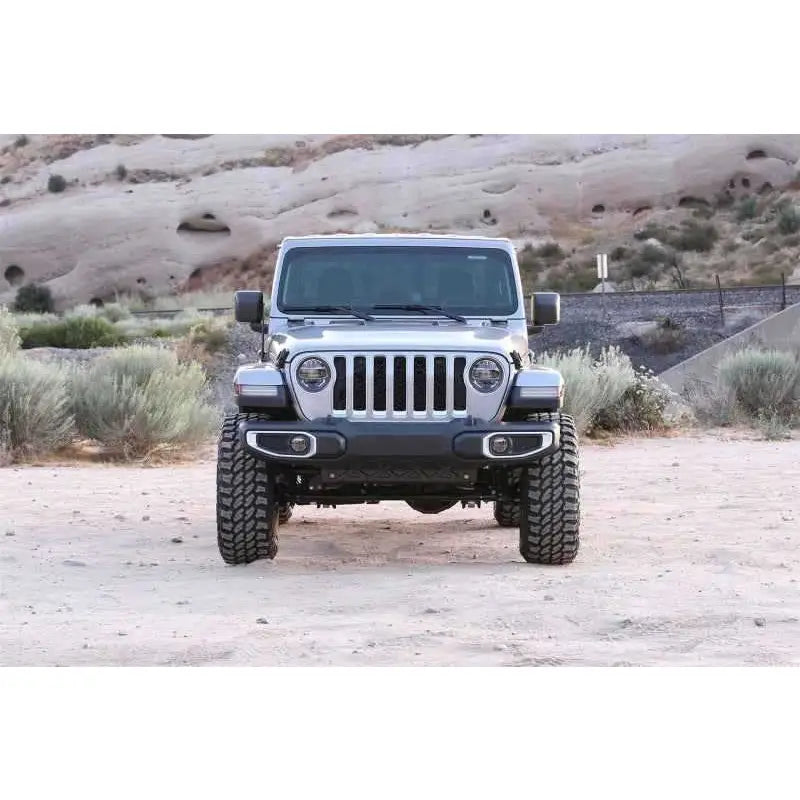

Fabtech 2020 Jeep Gladiator JT 6 Cyl 4WD 3in Sport System w/DL 2.25 Resi Shocks

Fabtech 2020 Jeep Gladiator JT 6 Cyl 4WD 3in Sport System w/DL 2.25 Resi Shocks

Elevate your off-road experience with the Fabtech Sport Lift Kit, specifically designed for the 2020 Jeep Gladiator JT 6 Cyl 4WD. This popular system not only enhances your vehicle's ride height but also significantly improves suspension performance, all while maintaining affordability.

Key Features and Benefits:

• Easy Installation: Designed for a straightforward setup that can be completed in just a few hours.
• American-Made Front Coil Springs: Features a dual-rate design that allows for extended suspension travel, ensuring a smooth ride on highways and rugged terrains.
• Payload and Impact Absorption: The second stage of the coil springs effectively handles vehicle payload and absorbs large impacts at higher speeds.
• Rear Coil Spring Spacers: Keep your factory ride quality while leveling the stance of your vehicle with a spacer height of 1-3/4".
• Bump Stop Extensions: Utilize factory bump stops for compliant cushioning during full compression, preventing over-cycling of the suspension and driveline.
• Extended Sway Bar Links: Features urethane bushings which reposition the bars to function within factory operating planes, reducing sway bar binding at full extension.
• Stainless Steel Dirt Logic Shocks: Provides enhanced damping for off-road adventures while maintaining a plush on-road ride quality.
• Compatible Tire Sizes: Accommodates larger tires, enhancing off-road capability without sacrificing highway performance.

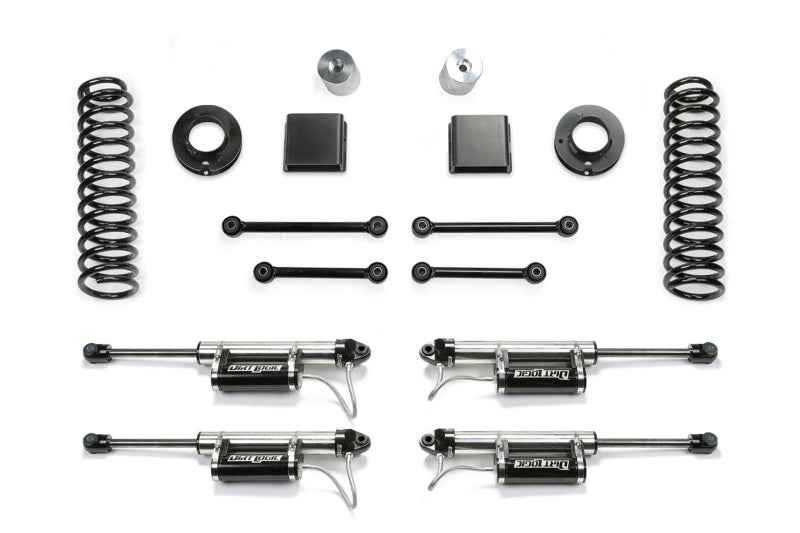

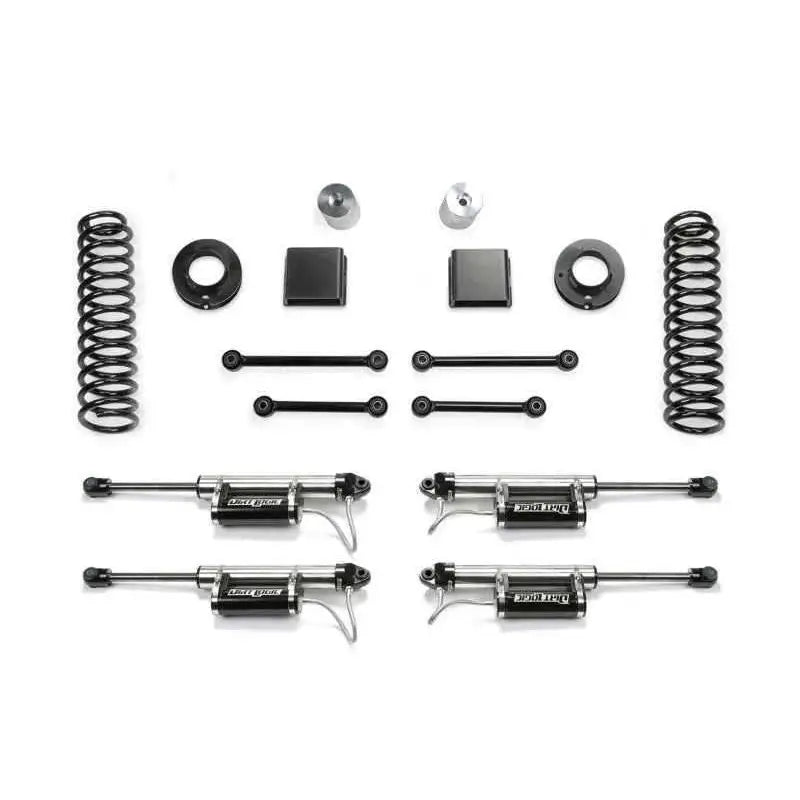

What’s Included in the System:

• Front Dual Rate Coil Springs
• Rear Coil Spacers
• Front & Rear Sway Bar Links
• Front & Rear Bump Stop Brackets
• Free 5-Year 60,000 Mile Powertrain Warranty

Tire and Wheel Compatibility:

This lift kit is designed to fit various tire and wheel combinations:

• 35/12.5R17 on 17X9 with 4.5" BS (with minor trimming)
• 35/12.5R18 on 18X9 with 4.5" BS (with minor trimming)
• 325/65R18 on 18X9 with 4.5" BS (with minor trimming)
• 35/12.5R20 on 20X9 with 5" BS (with minor trimming)
• 325/60R20 on 20X9 with 5" BS (with minor trimming)
• 37/12.5R17 on 17X9 with 4.5" BS (with cutting)
• 37/12.5R18 on 18X9 with 4.5" BS (with cutting)
• 37/12.5R20 on 20X9 with 5" BS (with cutting)

Note: This lift kit is compatible with 6 Cyl models only.
