Fabtech 2019 Ford F450/550 4WD 6in Radius Arm System w/Perf. Shocks

Fabtech 2019 Ford F450/550 4WD 6in Radius Arm System w/Perf. Shocks

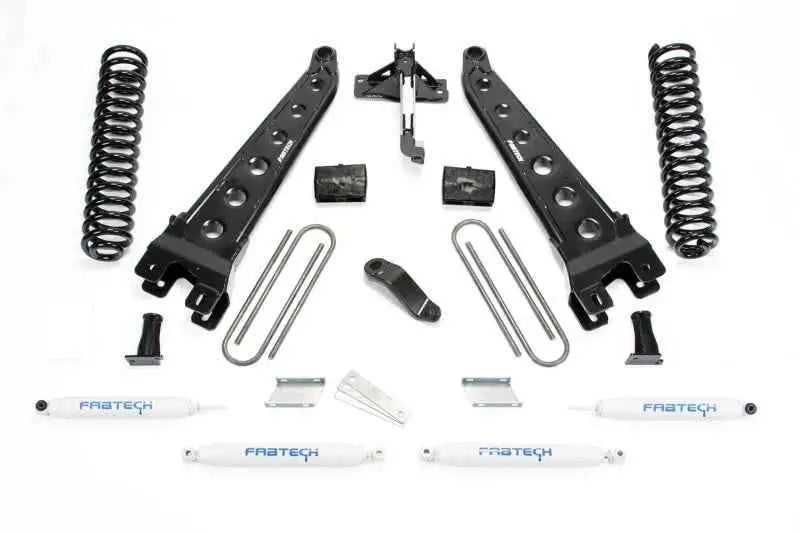

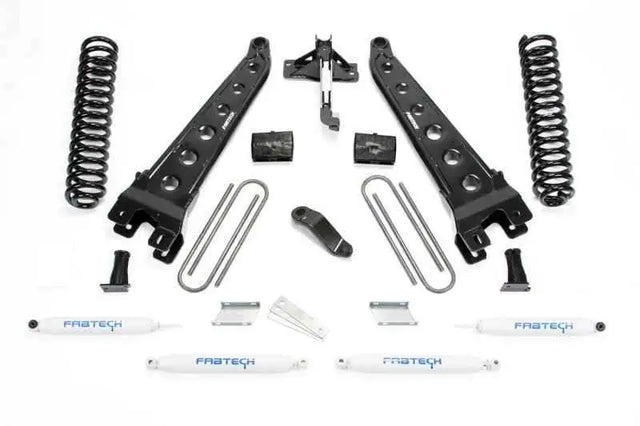

Upgrade your Ford F450 or F550 Super Duty with the Fabtech 6" Radius Arm Lift Kit, engineered to meet the demands of both on-road and off-road adventures. This comprehensive suspension system is designed specifically for the robust needs of the F450 and F550, providing superior performance and durability.

Key Features and Benefits:

• Robust Radius Arms: Crafted with tubular construction and dimple die side plates for exceptional strength. Offset design ensures full turning capability of the Dana Super 60 front axle, even with wide tires.
• Adjustable Caster: Integrated 1 degree of caster built into the arms enhances ride height. Adjustable alignment cams provide an additional 1.5-2 degrees of caster adjustment for refined handling.
• High-Quality Coil Springs: American-made springs designed for a compliant ride, offering a 2" increase in wheel travel when paired with Fabtech shock absorbers. Each coil is preset to prevent ride height settling over time.
• Sturdy Track Bar Bracket: Made from 1/4" thick steel, this bracket repositions the factory track bar, ensuring axle centering under the vehicle with the added lift height. The robust design minimizes deflection during full track bar movement.
• Forged Dropped Pitman Arm: Made from high-strength materials that exceed factory specifications, this arm ensures compatibility with the factory setup for enhanced steering performance.

Tire and Wheel Compatibility:

• Tire Size: 37/12.50R17 with 17X9 Wheel (4 3/4" BS) - Minor trimming may be required.
• Tire Size: 37/12.50R18 with 18X9 Wheel (4 3/4" BS) - Minor trimming may be required.
• Tire Size: 37/13.50R20 with 20X9 Wheel (5" BS) - Minor trimming may be required.

Important Notes: Some models may not sit level after installation. Front driveshaft modification is required, or consider ordering the replacement driveshaft (FTS92035).

Experience the difference that a high-quality suspension system can make in your Ford F450 or F550. The Fabtech 6" Radius Arm Lift Kit is your solution for enhanced strength and performance, ready to tackle any terrain!
