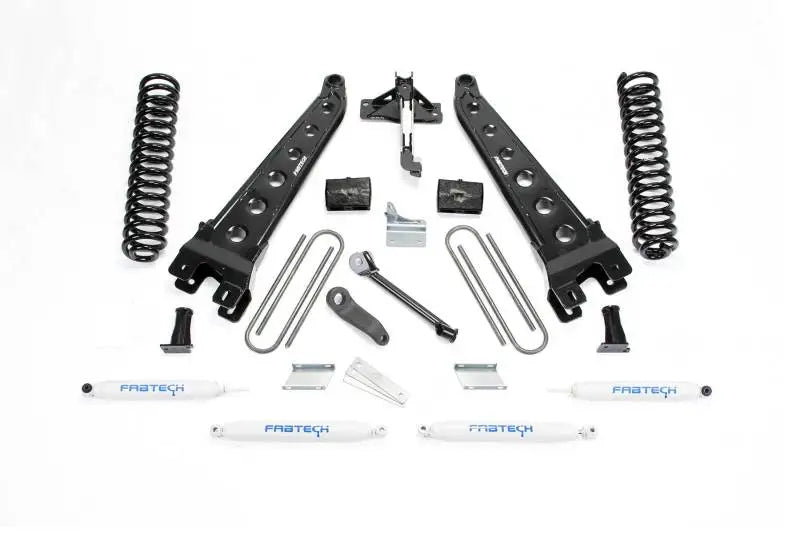

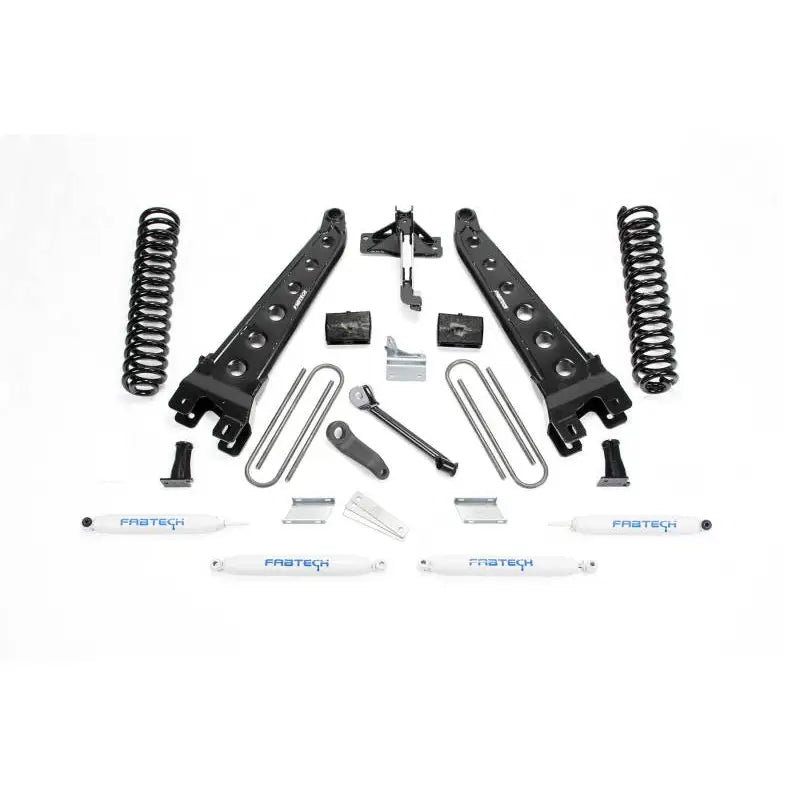

Fabtech 08-16 Ford F350/450 4WD 8 Lug 6in Radius Arm System w/Perf. Shocks

Fabtech 08-16 Ford F350/450 4WD 8 Lug 6in Radius Arm System w/Perf. Shocks

Elevate your ride with the Fabtech 6-inch Radius Arm System, specifically engineered for 2008-2016 Ford F350 and F450 4WD models. This performance system is designed to provide superior handling and an aggressive stance, making it perfect for off-road enthusiasts and daily drivers alike.

Key Features:

• Patented Radius Arms: Crafted with a full tubular structure and reinforced with dimple die side plates, ensuring maximum strength and durability.
• Adjustable Alignment Cam: Located at the axle, this feature allows for precise caster adjustment, optimizing your vehicle's handling.
• Replacement Coil Springs: The system includes 6'' replacement coil springs, providing improved lift and stability.
• Comprehensive Kit: Comes complete with a Trac Bar relocation bracket, Pitman arm, sway bar drops, and a rear block and U-bolt kit for a complete installation experience.

Compatibility:

This system is tailored for 8 lug tire sizes, accommodating:

• 35/12.50R20 tires on 20X9 wheels with 5" backspacing (minor trimming required)
• 315/70R17 tires on 17X8 wheels with 4 1/2" backspacing (minor trimming required)
• 325/65R18 tires on 18X9.5 wheels with 4 3/4" backspacing (minor trimming required)

Please Note: This system is designed for non-dually models only. Modification to the front drive shaft may be necessary to clear the exhaust on gas motors.

Benefits:

• Enhanced Performance: Experience improved off-road capabilities and a better handling experience on rugged terrains.
• Increased Ground Clearance: Gain the advantage of greater ground clearance, allowing for larger tires and a more aggressive look.
• Durability and Reliability: Made with robust materials to ensure longevity and withstand the demands of off-road driving.

Upgrade your Ford F350 or F450 today with the Fabtech 6in Radius Arm System and enjoy the perfect blend of performance and style!
