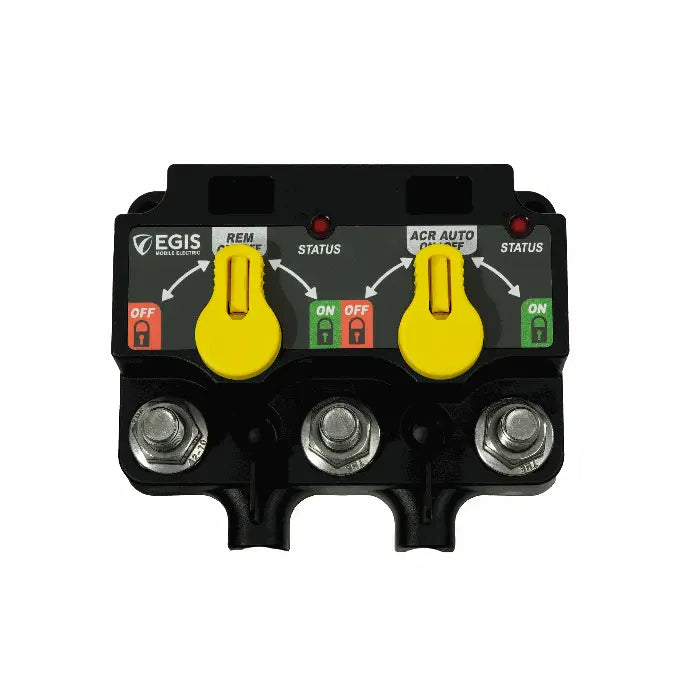

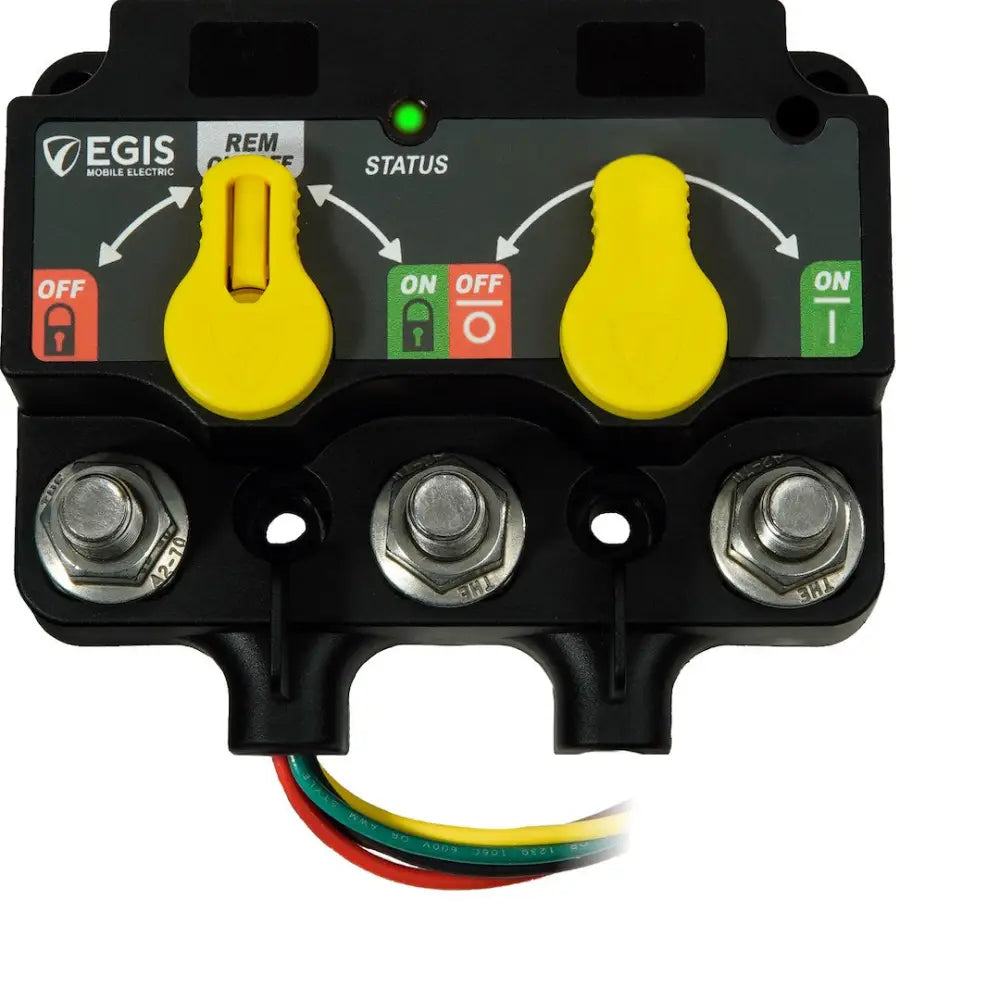

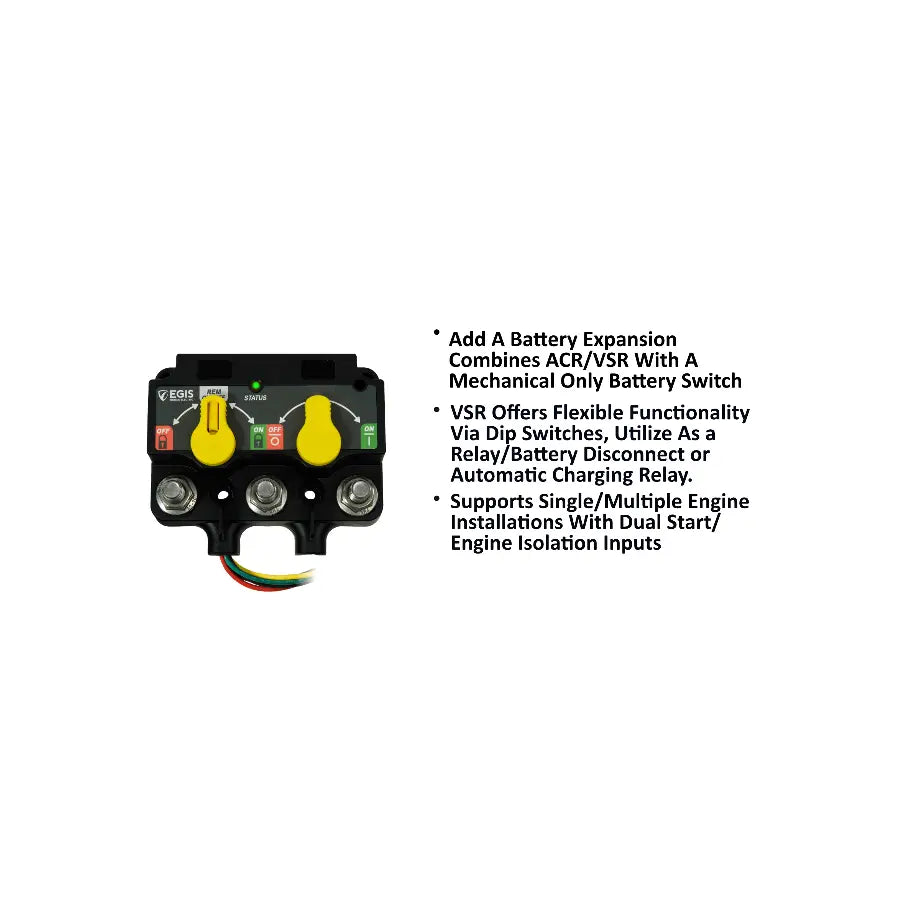

Egis Mobile 8720-1390 Battery Disconnect Switch
Egis Mobile 8720-1390 Battery Disconnect Switch
Available in stock (11)
Couldn't load pickup availability
Egis Mobile 8720-1390 Rotary Switch
For Marine Application featuring 8 To 36 Volt DC and Rotary Switch.
Features & Benefits
- Designed for modern lithium battery based electrical system applications that often require higher on/ off charge voltage settings over legacy battery chemistries
- Easy to see front facing led indicator provides visual device status, remote led replicates local on-device led
- Force each individual relay open or closed and optionally leave knob in either position to lock relay in either condition
- Convenient recesses for included weatherproof label set makes circuit and relay identification easy
- Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground
- Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts
- Programmable via dip switches located under protective cover
- High quality gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments
- Limited 4 year warranty
- 8 To 36 Volt DC
- Rotary Switch
- 500 Amp
- With Knob
- 1.3 amp off-state current draw
- 1500 amp max cranking current
- -40 to 221 degree fahrenheit operating temperature
- Stainless steel self-locking hardware
- Mechanical Setting
- 3.15 inch Length x 4.52 Width x 2.03 inch Height
- Flying Wires Termination
Specifications
| Model | Rotary Switch |
| Material | Stainless steel self-locking hardware |
| Weight | 1.9 lb |
| Dimensions | 8 x 4 x 2.75 in |
| Brand | Egis Mobile |
| Manufacturer Part Number | 8720-1390 |
| UPC | 850053879494 |
Frequently Asked Questions
What are the key construction details?
Egis Mobile Rotary Switch features corrosion is no issue with quality stainless steel studs and self-locking flanged nuts. See Features & Benefits and Specifications for the full list.
How much does this product weigh?
This item weighs approximately 1.90 lb.
