Egis Mobile 8530-1535 Battery Disconnect Switch
Egis Mobile 8530-1535 Battery Disconnect Switch
Hurry up, only 8 items left in stock.
Couldn't load pickup availability

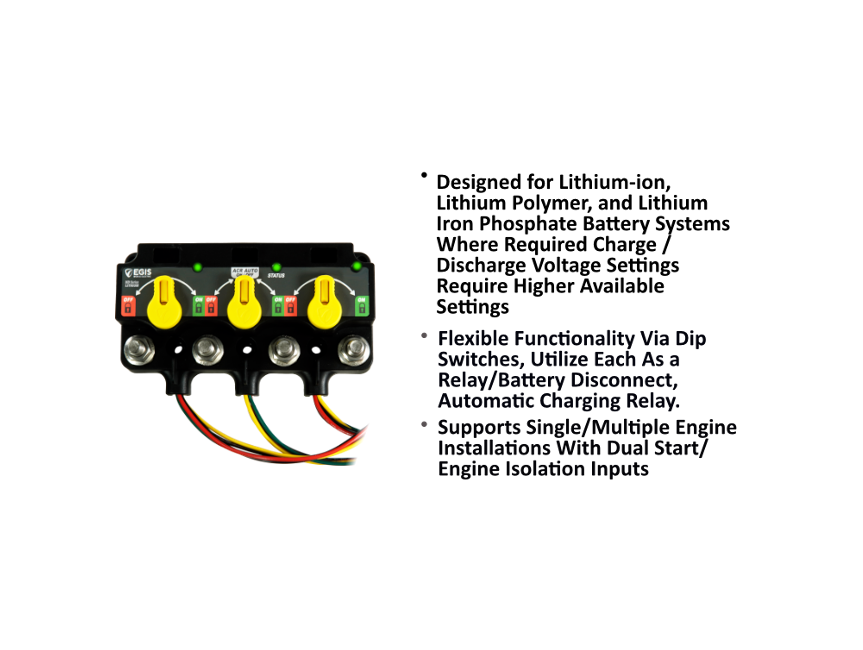

Egis Mobile 8530-1535 Rotary Switch
For Marine Application featuring 8 To 36 Volt DC and Rotary Switch.
Features & Benefits
- Designed for modern lithium battery based electrical system applications that often require higher on/ off charge voltage settings over legacy battery chemistries
- Easy to see front facing led indicator provides visual device status, remote led replicates local on-device led

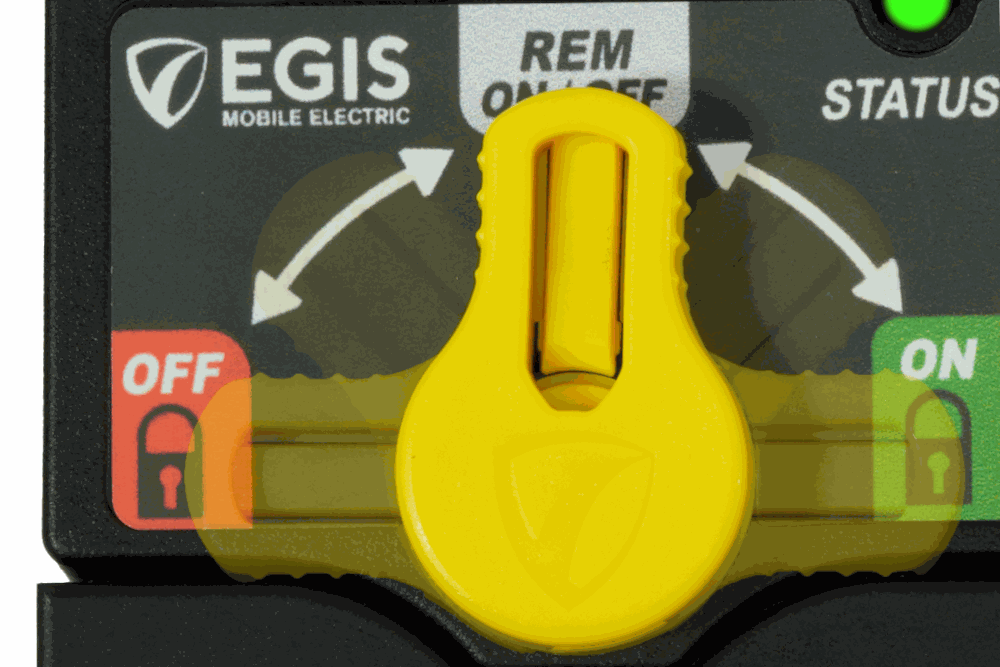

- Force each individual relay open or closed and optionally leave knob in either position to lock relay in either condition
- Convenient recesses for included weatherproof label set makes circuit and relay identification easy
- Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground
- Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts
- Programmable via dip switches located under protective cover
- High quality gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments
- Limited 4 year warranty
- 8 To 36 Volt DC
- Rotary Switch
- 500 Amp
- With Knob
- 1.3 amp off-state current draw
- 1500 amp max cranking current
- -40 to 221 degree fahrenheit operating temperature
- Stainless steel self-locking hardware
- 3.74 inch Length x 6.45 Width x 2.03 inch Height
- Tinned Wires Termination
Specifications
| Model | Rotary Switch |
| Material | Stainless steel self-locking hardware |
| Weight | 2.5 lb |
| Dimensions | 8 x 4 x 2.75 in |
| Brand | Egis Mobile |
| Manufacturer Part Number | 8530-1535 |
| UPC | 850053879432 |
Frequently Asked Questions
How do I verify fitment before ordering?
Compare manufacturer part number 8530-1535 against your existing part and your vehicle or equipment. Contact us with your make, model, and year if you need help confirming compatibility.
What are the key construction details?
Egis Mobile Rotary Switch features corrosion is no issue with quality stainless steel studs and self-locking flanged nuts. See Features & Benefits and Specifications for the full list.
How much does this product weigh?
This item weighs approximately 2.50 lb.
