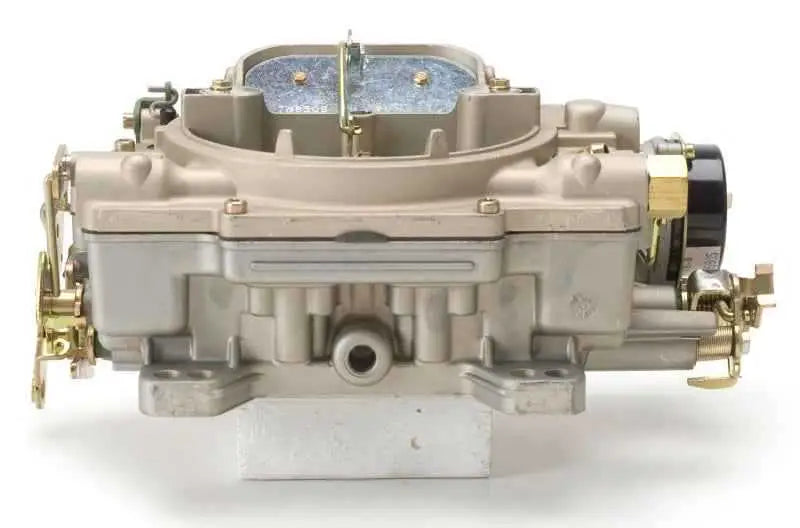

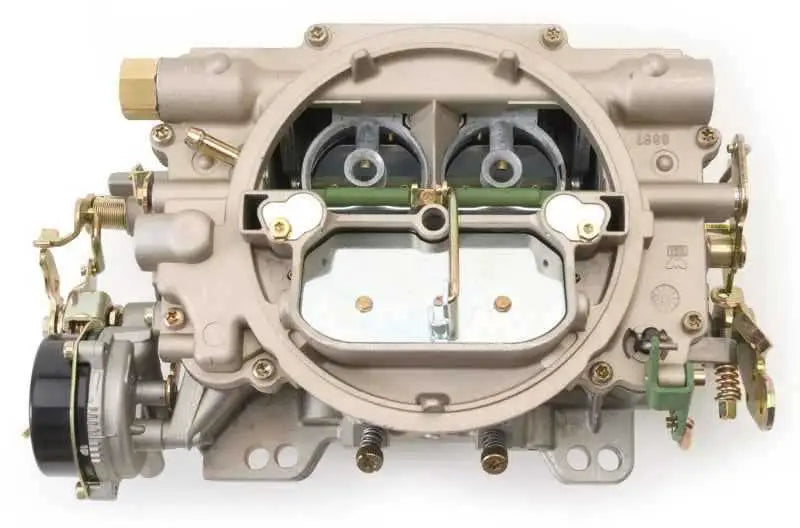

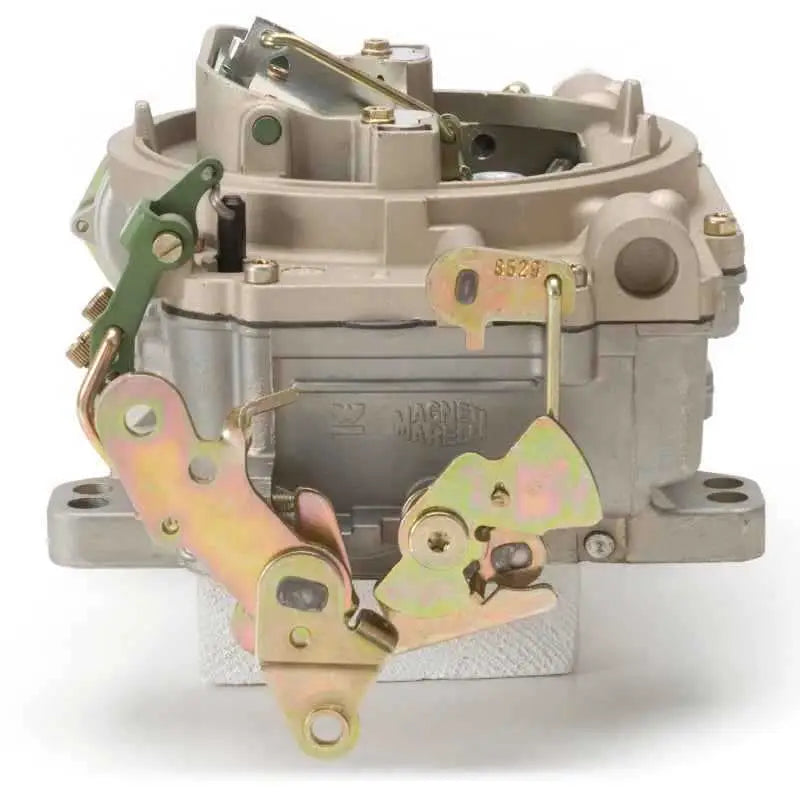

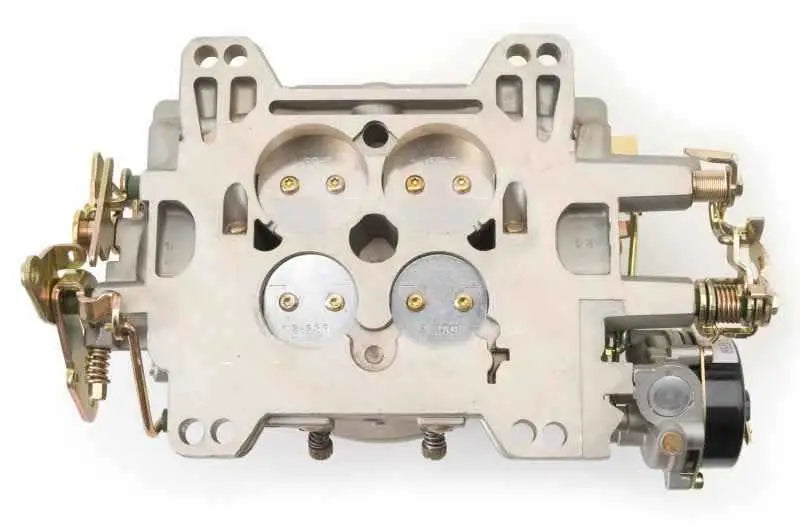

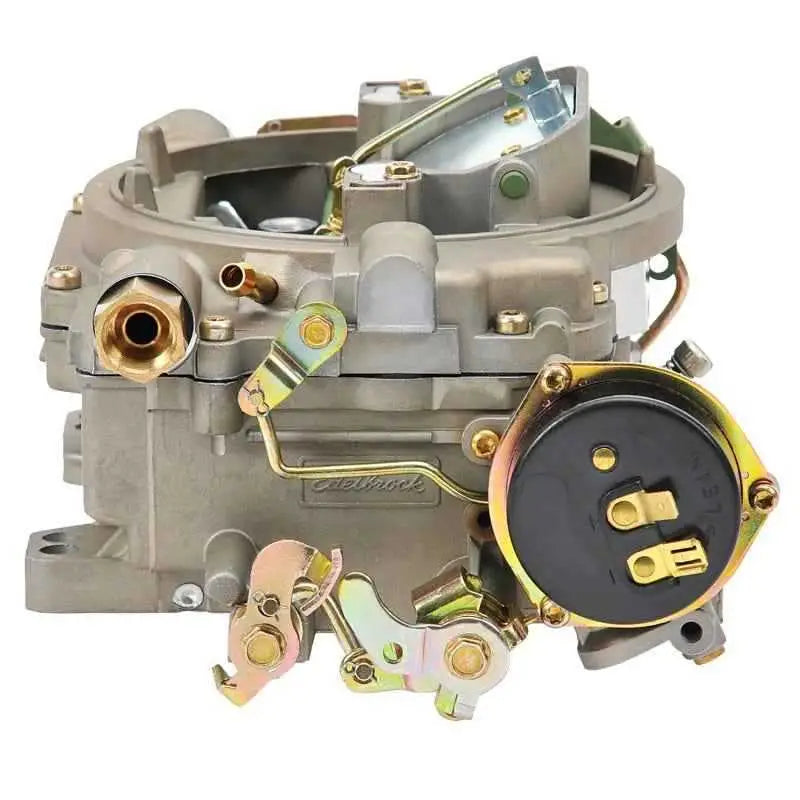

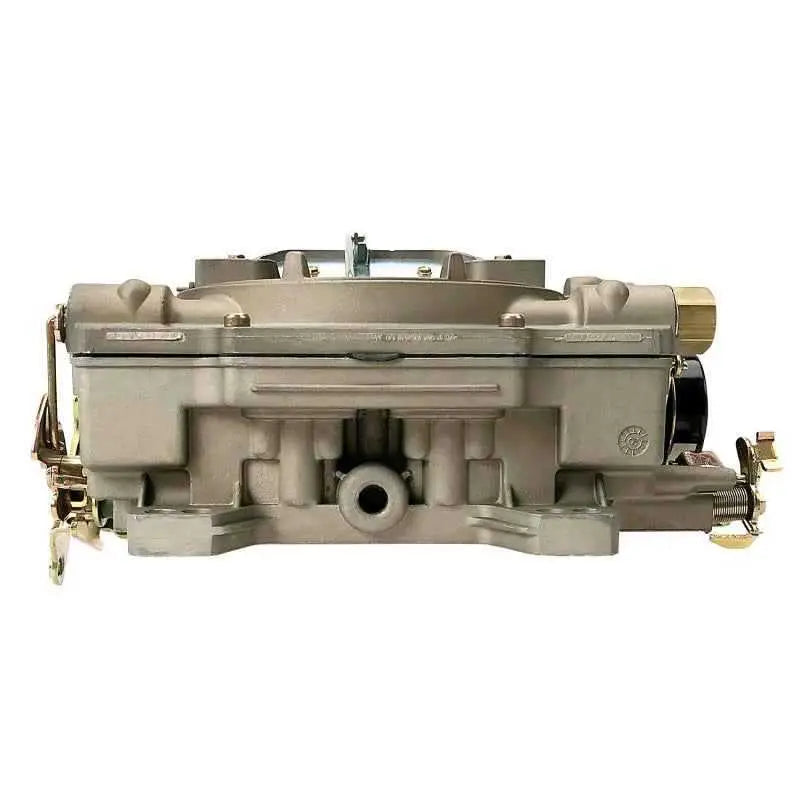

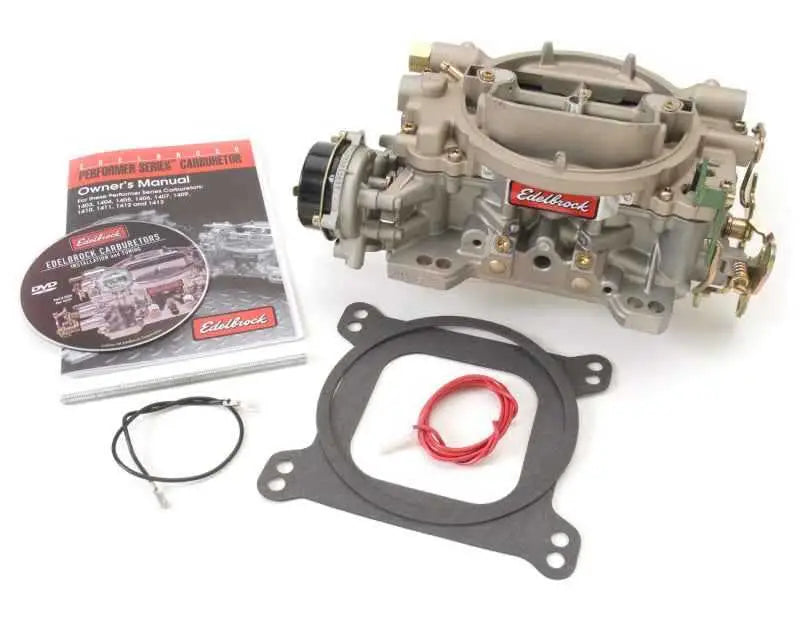

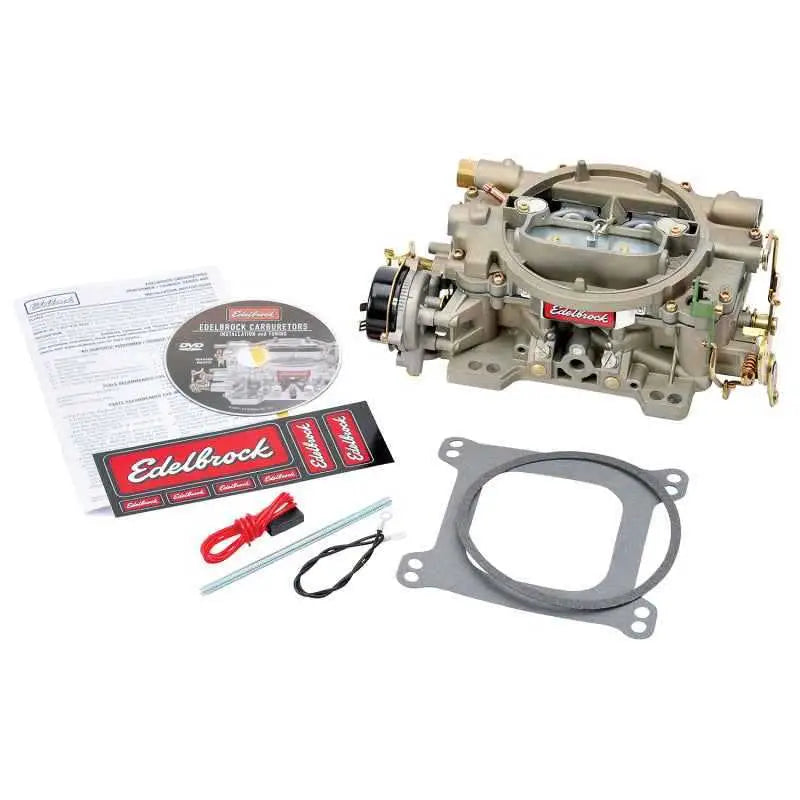

Edelbrock Carburetor Marine 4-Barrel 600 CFM Electric Choke

Edelbrock Carburetor Marine 4-Barrel 600 CFM Electric Choke

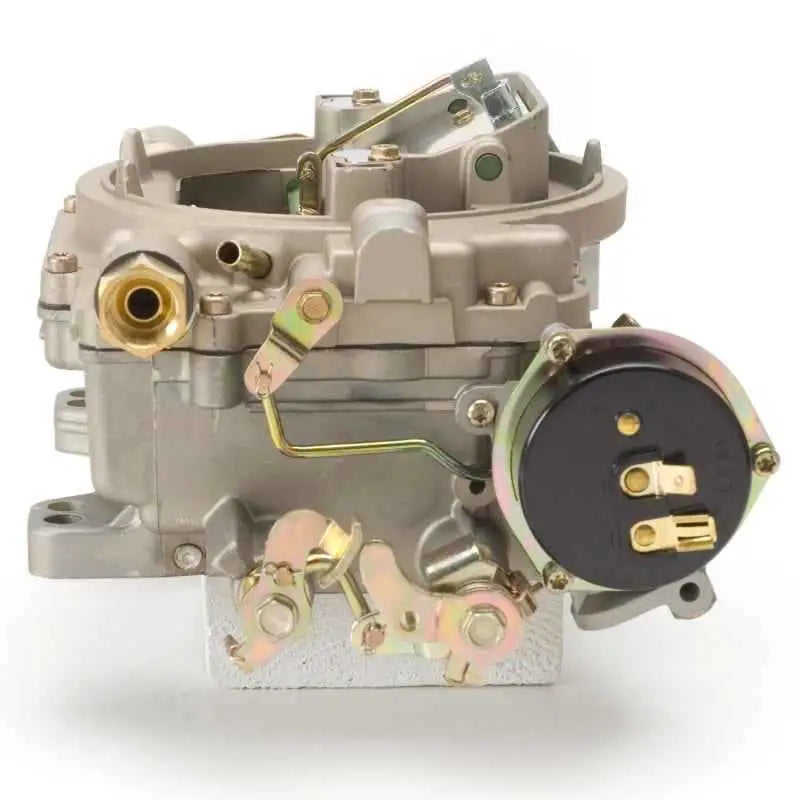

Experience unparalleled performance on the water with the Edelbrock 1409 Marine Series 600 CFM Electric Choke Carburetor. Engineered specifically for the rigors of marine environments, this carburetor is designed to deliver consistent power and reliability when you need it most.

Key Features:

• Precision-Tuned Performance: Utilizes metering rods for smooth transitions between circuits, ensuring responsive throttle and optimized fuel delivery.
• Backfire Resistance: Unaffected by engine backfires, eliminating the risk of blown power valves—perfect for high-stress situations.
• Easy Tuning: Quick and simple adjustments without the need to remove the carburetor or drain fuel, making it user-friendly for all skill levels.
• Durable Construction: Lightweight, all-aluminum body with a two-piece design, iridited for enhanced protection, and PTFE-coated shafts and pump arm for lasting performance.
• Reliable Operation: Simple tub-type bowls and rear-pivot floats contribute to a dependable and trouble-free operation on the water.

Compatibility:

Designed for optimum marine performance in small-block V8 engines and compatible with a variety of manifolds including:

• Edelbrock Performer
• Performer RPM
• RPM Air-Gap
• Torker II
• Other brands with similar design

Also suitable for Chevy 4.3L V6 engines with a Performer manifold using Calibration Kit #1485.

Specifications:

• Metering Jets: Primary .098, Secondary .101
• Metering Rods: .068 x .047
• Step-Up Spring: Orange (5 Hg)
• Venturi Diameters: 1-3/16 for primary, 1-9/16 for secondary
• Throttle Blade Diameters: 1-7/16 for primary, 1-11/16 for secondary

Elevate your marine engine's performance with the Edelbrock Carburetor Marine 4-Barrel 600 CFM Electric Choke. It's not just a carburetor; it's a commitment to enduring quality and reliable performance on every adventure.
