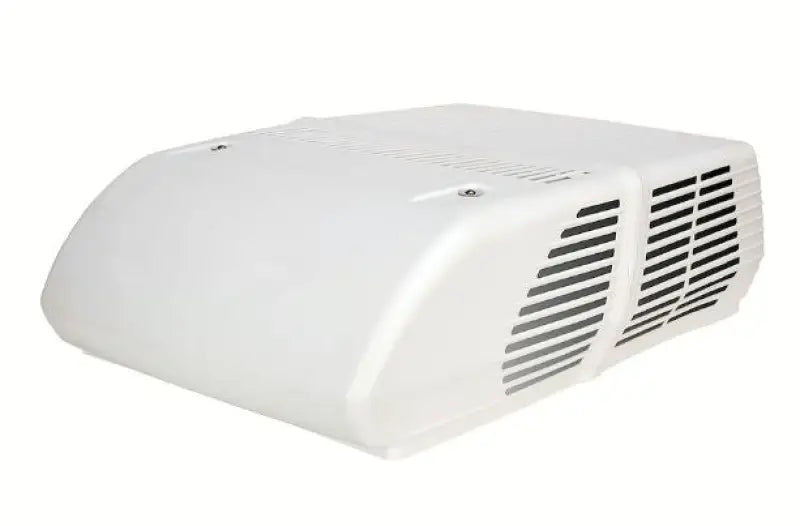

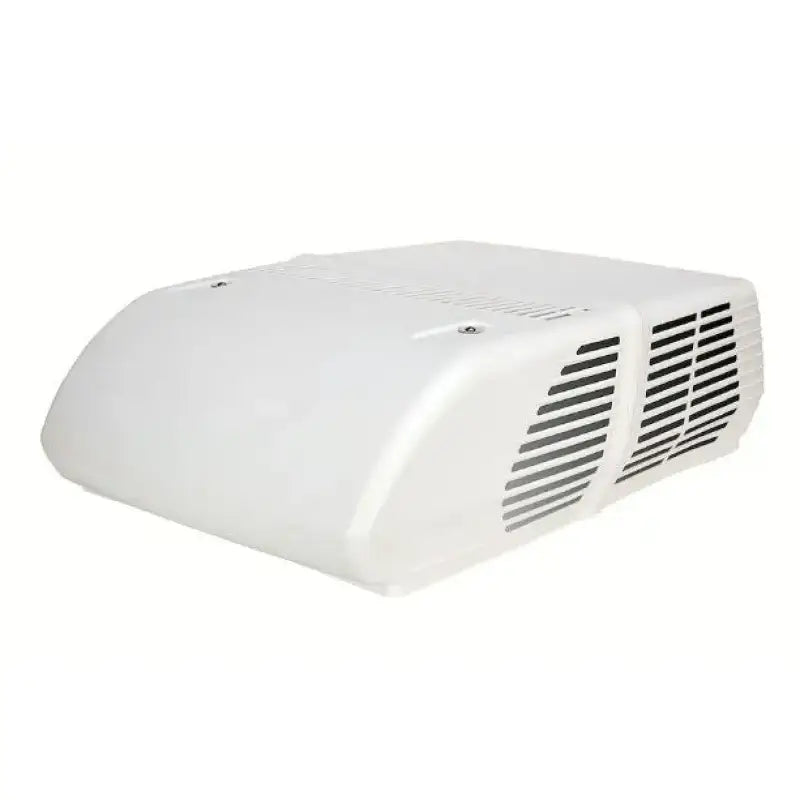

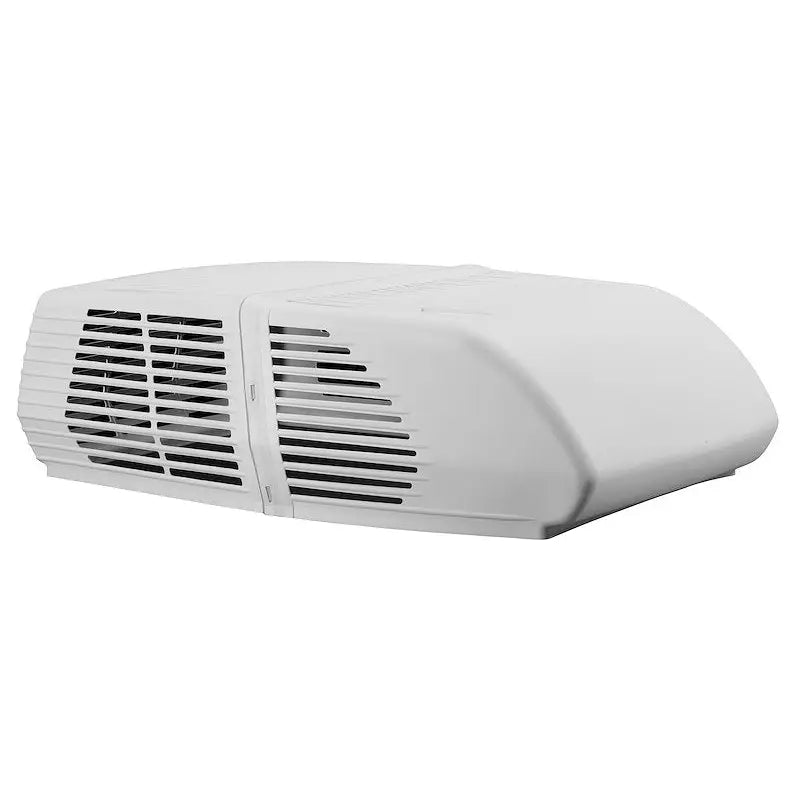

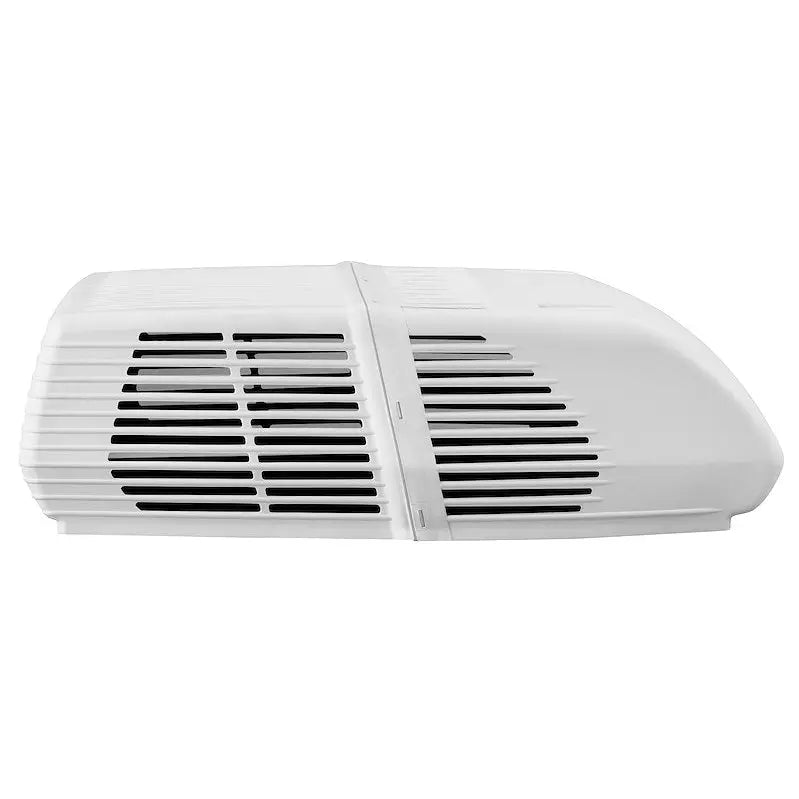

Stay cool on the road with the Coleman-Mach 35204-0762 Mach 10 RV Air Conditioner. Designed for RV rooftop applications, the Mach 10 delivers 15,000 BTUs of cooling capacity in a low-profile textured white housing measuring just 11.8 inches high.

The compact profile makes the Mach 10 an excellent option for motorhomes, fifth wheels, travel trailers, and other RV applications where rooftop height matters. Coleman-Mach designed the Mach 10 to provide strong cooling performance while maintaining a lower rooftop profile than traditional RV air conditioners.

Key Features

• 15,000 BTU cooling capacity
• Low-profile RV rooftop air conditioner
• Textured white exterior shroud
• Suitable for ducted or non-ducted RV applications
• 310 CFM evaporator airflow
• 115/120V AC electrical system
• Designed for standard 14" x 14" RV roof openings
• Coleman-Mach Signature Series Mach 10

Product Specifications

Manufacturer	Coleman-Mach
Manufacturer Part Number	35204-0762
Series	Mach 10
Cooling Capacity	15,000 BTU
Profile	Low Profile
Height	11.8"
Width	26.1"
Length	38.0"
Airflow	310 CFM
Electrical Rating	115 VAC, 60 Hz, 1 Phase
Cooling Amperage	14 Amps
Color	Textured White
Heat Pump	No

Fitment & Compatibility

The Coleman-Mach 35204-0762 is designed for RV rooftop air-conditioning applications and can be used with ducted or non-ducted systems when paired with the appropriate compatible Coleman-Mach ceiling assembly and controls.

Important: The rooftop air conditioner may not include every component required for a complete installation. Ceiling assemblies, thermostats, control boxes, heat strips, wiring, and other installation components may be sold separately depending on your existing RV system.

Before ordering, verify the model and part number on your existing air conditioner and confirm the required ceiling assembly and controls for your application.

Replacement Information

Coleman-Mach model numbers can change over time. The 35204-0762 may be used as a replacement for certain previous Mach 10 configurations, but compatibility should be verified using the complete model number and existing RV control system before ordering.

Frequently Asked Questions

How many BTUs is the Coleman-Mach 35204-0762?

The Coleman-Mach 35204-0762 provides 15,000 BTUs of cooling capacity.

Is the Coleman-Mach 35204-0762 a low-profile RV air conditioner?

Yes. The textured-white Mach 10 35204-0762 is approximately 11.8 inches high, making it a low-profile rooftop RV air conditioner.

Can the Mach 10 be used with a ducted RV system?

Yes. The Mach 10 can be used in ducted or non-ducted RV applications when installed with the appropriate compatible ceiling assembly and controls.

Does this include the inside ceiling assembly?

Installation components vary by application. Verify what is included with the product and what your existing RV system requires before ordering. Ceiling assemblies, thermostats, control components, and other accessories may be sold separately.

How do I confirm this will replace my existing RV air conditioner?

Locate the manufacturer model and part number on your existing rooftop unit. If you are unsure, contact RV & Auto Parts with the model number and photos of the identification label so we can help verify the correct replacement.
