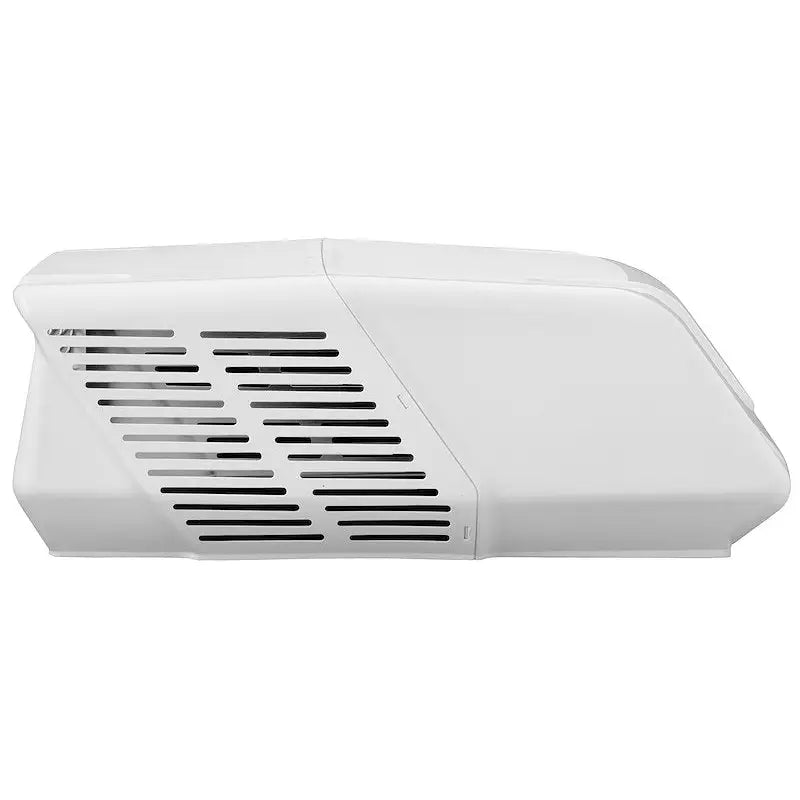

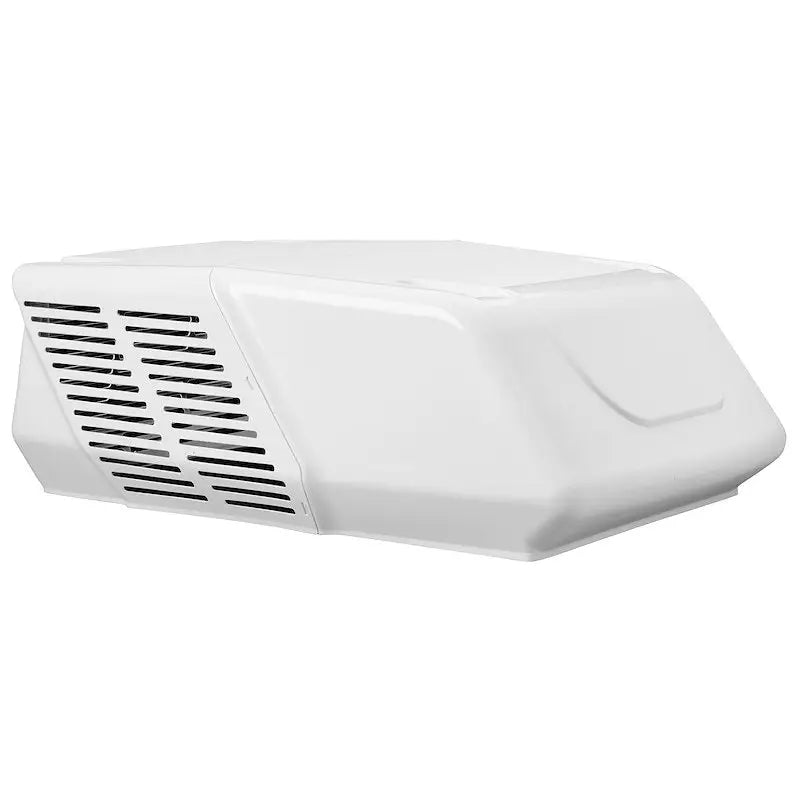

The Coleman Mach 38209-0950 Mach 15 Power Saver RV Air Conditioner is a high-output rooftop ducted AC designed for strong airflow and reliable cooling on the road. With 15,000 BTU nominal cooling capacity, it fits 14 inch x 14 inch rooftop vent openings and is built for ducted RV cooling systems that need maximum performance.

The Mach 15 is known for high cooling output and strong airflow, making it a strong choice for ducted RV air systems. This model includes a soft start capacitor, runs on 120 volt power, and features a polished white finish with a medium-profile design. Ceiling assembly must be ordered separately.

Features & Benefits

• Highest cooling output in the Mach series lineup
• 15,000 BTU nominal cooling capacity
• Strong airflow for ducted RV cooling systems
• Ducted quiet design
• High-efficiency performance
• Soft start capacitor included
• Fits 14 inch x 14 inch rooftop vent openings
• Polished white finish
• Limited 2-year warranty

Specifications

Brand	Coleman Mach
Manufacturer Part #	38209-0950
Supersedes / Also Use	38209-0940
Model	Mach 15 Power Saver
BTU Rating	15,000 BTU
Mount Opening	14 Inch x 14 Inch Rooftop Vent Opening
AC System	Ducted System
Cooling Type	Evaporative Cooling
Function	AC Only
Profile Height	Medium Profile - 13.8 Inch
Dimensions (H x W x L)	13.8 Inch x 26.1 Inch x 38 Inch
Color	White
Voltage	120 Volt
Ampere Rating	9 Amp
Compressor Draw	8.9 Amp
Heat Pump	No
Condensate Pump	No
Remote Control	No
Zone Control	Without Built-In Zone Control Electronic Board
Soft Start Capacitor	Yes
Weight	83.5 lb
Estimated Install Time	1.5 Hours
Ceiling Assembly	Sold Separately
Warranty	Limited 2-Year

Compatibility

Designed for RV rooftop installations with 14 inch x 14 inch vent openings and ducted cooling systems. Verify fitment before ordering. Ceiling assembly must be ordered separately.

California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Recommended Items

Complete your Coleman Mach 38209-0950 installation with these commonly ordered Coleman Mach parts. Verify fitment before ordering.

Air Conditioner Ceiling Assemblies

Part #	Description	Notes
8330A763	Lateral ducted ceiling assembly; fits 14 inch x 14 inch vent openings; manual control; heat strip compatible	Best match for ducted 14x14 installations
8430A6301	Deluxe CHILLGrille ceiling assembly; for use with Coleman Mach air conditioners; straight-through airflow	Verify fitment for your ducted setup
8430A633	Deluxe CHILLGrille ceiling assembly; for use with Coleman Mach ducted air conditioner systems	Ducted systems
8430A635	Deluxe CHILLGrille ceiling assembly; for use with Coleman Mach ducted air conditioner systems	Ducted systems
9430-4553	Ceiling assembly plenum only; for use with Coleman Mach air conditioners; non-ducted system	Non-ducted only — verify before ordering

Air Conditioner Compressor Soft Starter

Part #	Description	Notes
1497-3601	Air conditioner compressor soft starter; for use with Coleman 450XX, 452XX, 470XX, 472XX, 480XX, and 482XX series air conditioners	Verify compatibility with your Coleman Mach model before ordering

Air Conditioner Installation Kit

Part #	Description	Notes
8333-3211	Air conditioner installation kit; long bolts only; pack of 4	Hardware for rooftop AC installation

Wall Thermostats

Part #	Description	Notes
7330-3861	Wall thermostat; cool only; analog readout; 12 volt DC; black	Cool-only control
9420-351	Wall thermostat; single stage; heat/cool control; mechanical readout; 12 volt DC; with high/low fan speed	Heat and cool control
9430A3402	Wall thermostat; cool control only; black	Cool-only control

Ceiling assembly is required for installation and is not included with this air conditioner. Search by part number on RV & Auto Parts to order compatible ceiling assemblies, thermostats, and installation accessories.

Coleman Mach 38209-0950 — Frequently Asked Questions

What is the Coleman Mach 38209-0950 used for?

It is a 15,000 BTU rooftop RV air conditioner designed for ducted cooling systems, offering high cooling output and strong airflow for RVs with 14 inch x 14 inch vent openings.

What size vent opening does this air conditioner fit?

It fits 14 inch x 14 inch rooftop vent openings. Verify fitment before ordering to confirm compatibility with your RV roof opening and ducted system.

Is this a ducted or non-ducted air conditioner?

This is a ducted system air conditioner with a ducted quiet design, built for RVs that use ducted rooftop AC airflow.

Does this unit include a heat pump or condensate pump?

No. This model is AC only and does not include a heat pump or condensate pump.

Is the ceiling assembly included?

No. Ceiling assembly must be ordered separately. Compatible options include Coleman Mach 8330A763, 8430A6301, 8430A633, 8430A635, and 9430-4553 depending on your ducted or non-ducted setup. Verify fitment before ordering.

Which ceiling assembly is recommended for this unit?

For ducted 14 inch x 14 inch installations, Coleman Mach 8330A763 is a commonly matched lateral ducted ceiling assembly. Other compatible Coleman Mach ceiling assemblies include 8430A6301, 8430A633, and 8430A635 for ducted systems. Part 9430-4553 is for non-ducted plenum applications. Verify fitment before ordering.

What additional items are recommended for installation?

Commonly ordered items include a compatible Coleman Mach ceiling assembly (8330A763, 8430A6301, 8430A633, 8430A635, or 9430-4553), installation kit 8333-3211, wall thermostat (7330-3861, 9420-351, or 9430A3402), and compressor soft starter 1497-3601. Verify fitment before ordering.

What is the replacement part number for 38209-0950?

This unit also uses new number 38209-0940. Verify the correct part number for your application before ordering.
