Mahle/ Clevite  |  SKU: M25CB481HN

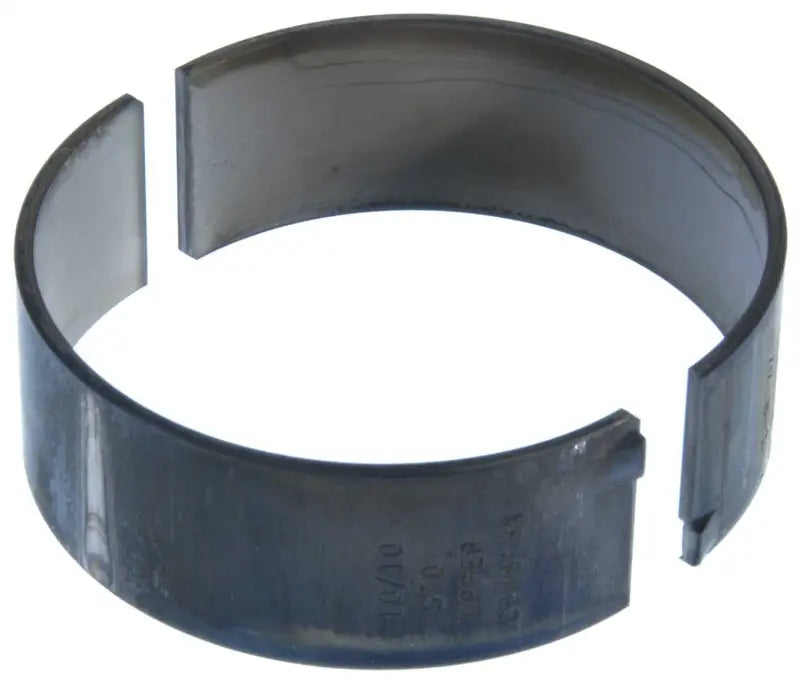

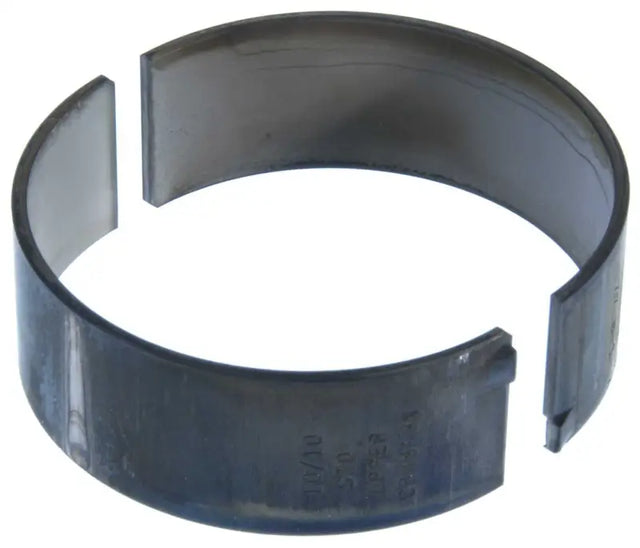

CB-481HN Mahle/ Clevite Connecting Rod Bearing For Use With Chrysler

$28.60 USD
Shipping calculated at checkout.

CB-481HN Mahle/ Clevite Connecting Rod Bearing For Use With Chrysler is backordered and will ship as soon as it is back in stock.



Care information

Check with Manufacturers Guides

Delivery and Shipping

Typical Processing time is 1-2 Business Days. Most Orders Ship out same day if processed by 12PM. All Orders have Free Ground Shipping. We also offer Expedited Shipping and Store Pickup.

Please reach out if you need help!

Mahle/ Clevite

Number one Selling Products

Description

CB-481HN Mahle/ Clevite Connecting Rod Bearing

These bearings were developed primarily for use in NASCAR type racing, but are suitable for all types of competition engines. H series bearings have a medium level of eccentricity, high crush, and rod bearings have a hardened steel back and thin overlay. These bearings also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating. Bearings with 0.001 Inch extra clearance are available for standard size shafts and carry the suffix HX (X = extra clearance). Rod bearings are available with or without dowel holes (HD = with, H = without), main bearings are available with standard 180 Degree upper half grooving and with full 360 Degree grooving (H = 180 Degree, HG 360 Degree). Use H series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range. H series bearings should be used if contact patterns obtained with P series parts are too narrow. Contact patterns should ideally cover 2/3 to 3/4 of the bearing surface. If you aren't sure which type of performance bearing to start with, the H series bearing will be your best choice.



Suitable For All Types Of Competition Engines

Bearings Have A Medium Level Of Eccentricity

Rod Bearings Have A Hardened Steel Back And Thin Overlay

Also Have Enlarged Chamfers For Greater Crankshaft Fillet Clearance

High Crush For Better Seating And Retention

Bearings Can Be Used With Crankshafts That Have Oversize Fillets And Where Engines Run In The Medium To High RPM Range

Limited 2 Year Or 200,000 Mile Or 7,200 Hour Warranty

Compatibility : Chrysler 4.5L/ 5.2L/ 5.6L/ 5.9L/ 8.0L Engines
Type : Standard
Material : Steel Backed With Copper-Lead Alloy
Chamfered : Yes
Quantity : Single


Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Customer Service

If you have any questions, we are here to help you!

PH: 760-651-4005

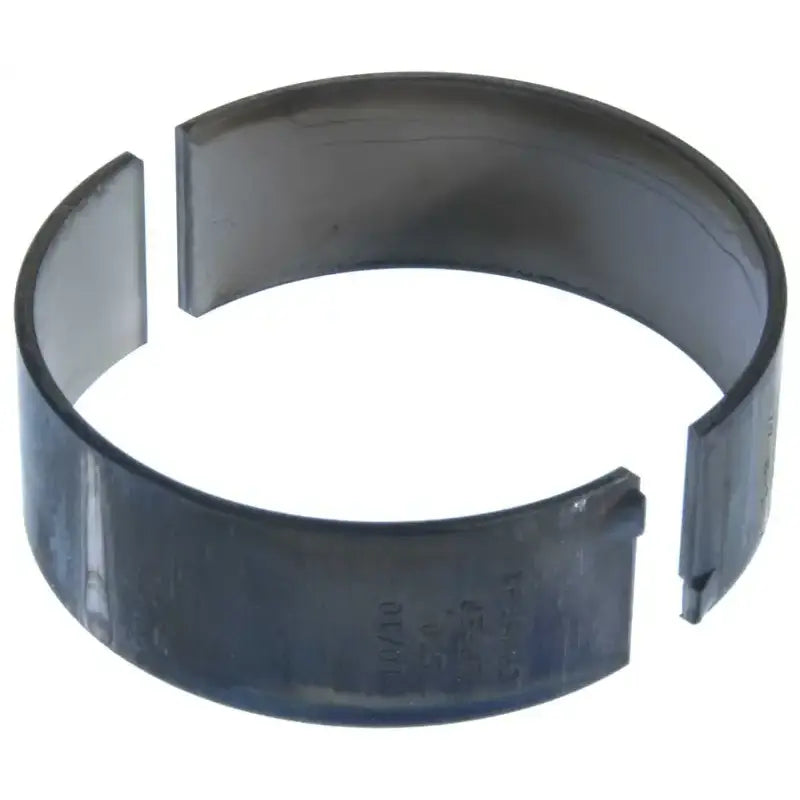

CB-481HN Connecting Rod Bearing
