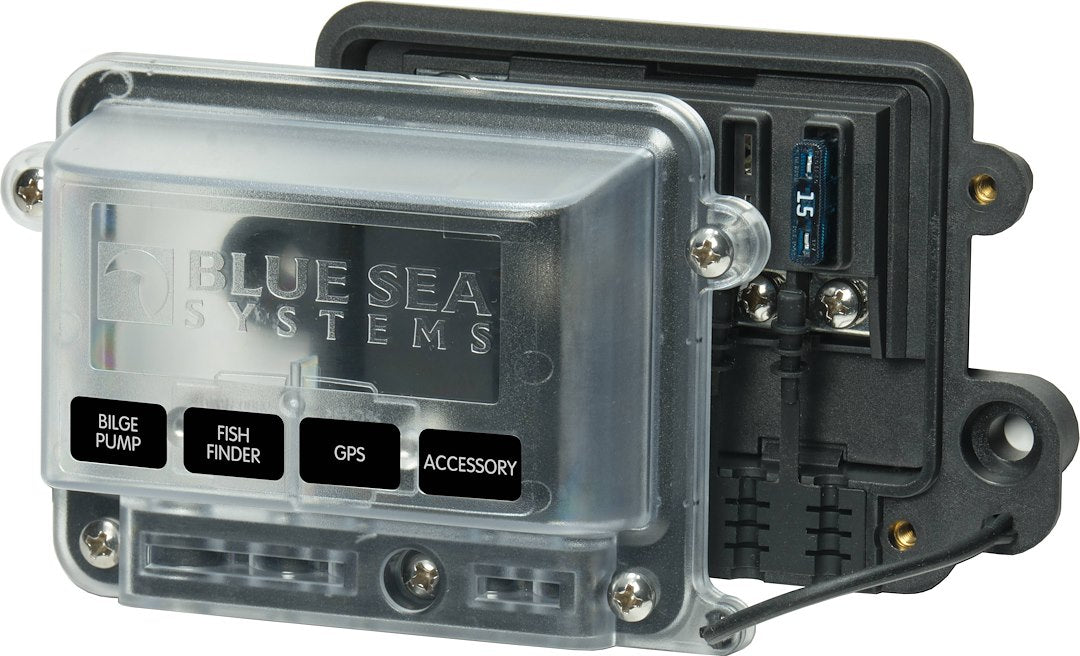

Blue SEA 5056-BSS Fuse Block
Blue SEA 5056-BSS Fuse Block
Available in stock (41)
Couldn't load pickup availability
Blue SEA 5056-BSS No Supplier Warranty
Provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Best Practices and ABYC standards state that every positive wire on the boat outside the engine starting circuit must have circuit protection. When excessive current flows in an electrical circuit, wire insulation can melt and possibly start a fire. Circuit breakers and fuses protect the wire in electrical circuits.
Features & Benefits
- Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Features 3 wire plugs to maintain water resistant rating if less than 4 loads are required
- Accepts ato and atc fast-acting blade fuses
- Accepts ato and atc-style low profile circuit breakers
- Nests with other st-blade water-resistant fuse blocks and water-resistant 100a bus bars to reduce wire
- 5056100 meets abyc and uscg insulation requirements
- Spare fuse and fastener storage in cover
- Fuses and circuit breakers sold separately
- No Supplier Warranty
Specifications
| Model | No Supplier Warranty |
| Weight | 0.42 lb |

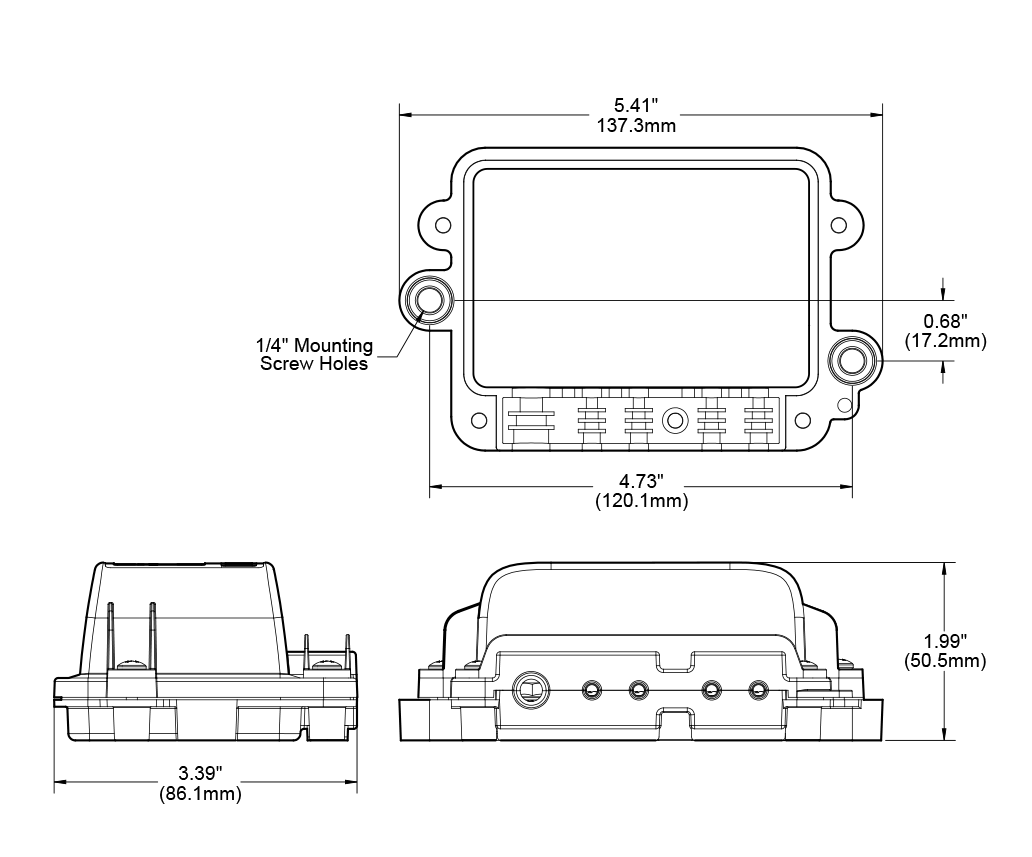

| Dimensions | 4.96 x 3.4 x 2.1 in |
| Brand | Blue SEA |
| Manufacturer Part Number | 5056-BSS |
| UPC | 632085050566 |
Recommended Items
Commonly ordered accessories for this product:
| Item | Brand | Manufacturer Part Number | Description |
|---|---|---|---|
| Dielectric Grease 1/3 OZ | Ancor | 700115 | Dielectric grease 1/3 oz |
Frequently Asked Questions
What stands out about this auto part?
Key details include accepts a wide range of wire sizes. Review the full feature list and specifications on this page for complete details.
How much does this product weigh?
This item weighs approximately 0.42 lb.
