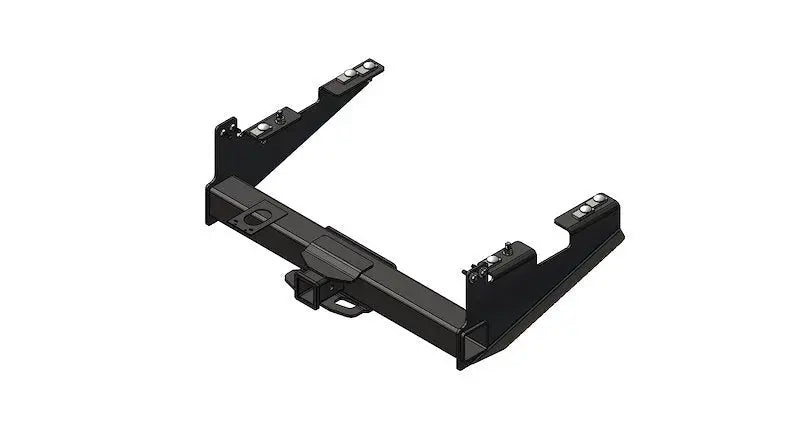

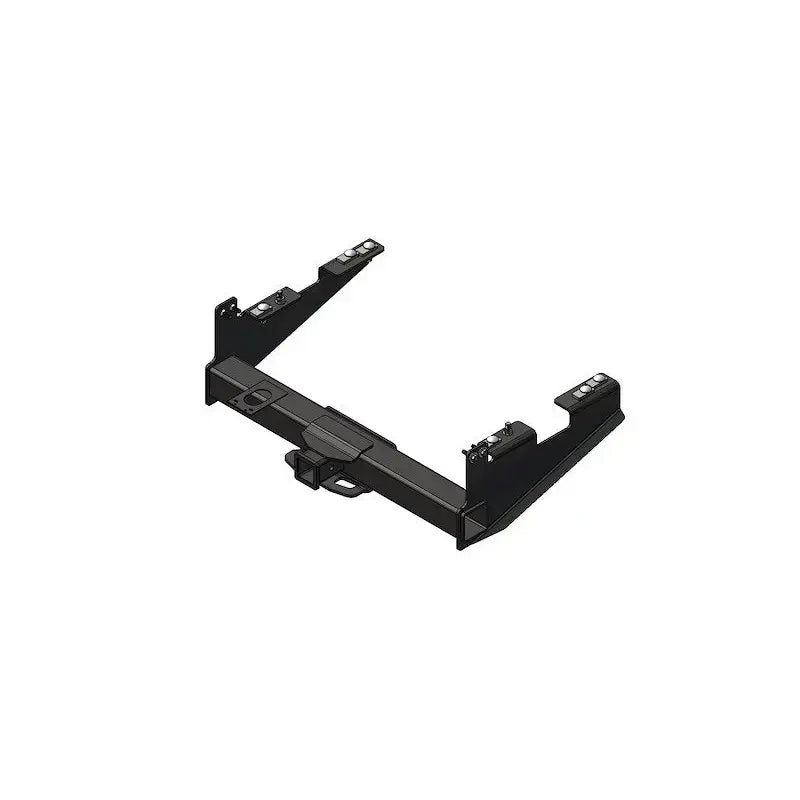

The BXH1001 is a Blue Ox custom-designed receiver hitch for the Ford F-250, F-350 and F-450 Super Duty (no cab and chassis), covering 2017–2026. It is a Class V Commercial hitch with a 2-1/2 in receiver opening, and the crossmember is visible.
Blue Ox publishes two sets of limits, and which one applies depends on how the trailer is hitched. Towed weight carrying, the maximum is 20,000 lb gross trailer weight and 2,500 lb tongue weight. Towed with a weight-distributing setup, the maximum rises to 24,000 lb gross trailer weight and 3,000 lb tongue weight. The higher pair only applies with a weight-distributing hitch actually fitted.
The hitch is steel, finished in Blue Ox’s textured black powder coat over an e-coat base, and it is made in the U.S. and may include imported hardware. Blue Ox safety tests to SAE J684 and SAE J3352. A wiring plug mounting bracket is often included, which gives the trailer connector a place to sit during installation.
Features & Benefits
- Weight carrying: 20,000 lb gross trailer weight, 2,500 lb tongue weight
- Weight distributing: 24,000 lb gross trailer weight, 3,000 lb tongue weight
- Class V Commercial, 2-1/2 in receiver
- Custom designed for the Ford F-250, F-350 and F-450 Super Duty (no cab and chassis)
- Textured black powder coat over e-coat
- Safety tested to SAE J684 and SAE J3352
- Made in the U.S. (may include imported hardware)
Specifications
| Brand | Blue Ox |
|---|---|
| Manufacturer Part Number | BXH1001 |
| Hitch Class | V Commercial |
| Receiver Size | 2-1/2 in |
| Crossmember | Visible |
| Fit Years | 2017–2026 |
| Weight Carrying — Gross Trailer Weight | 20,000 lb |
| Weight Carrying — Tongue Weight | 2,500 lb |
| Weight Distributing | 24,000 lb GTW / 3,000 lb TW |
| Material | Steel |
| Finish | Textured black powder coat over e-coat |
| Safety Standards | SAE J684, SAE J3352 |
| Country of Manufacture | United States |
Frequently Asked Questions
How much can this hitch tow?
Weight carrying, 20,000 lb gross trailer weight with 2,500 lb tongue weight. With a weight-distributing setup fitted, 24,000 lb gross trailer weight with 3,000 lb tongue weight.
What is the difference between the weight-carrying and weight-distributing ratings?
Weight carrying is a trailer hitched straight to the ball, with the tongue load resting on the back of the tow vehicle. Weight distributing adds spring bars that spread that load across both axles of the vehicle and the trailer. Because the load is spread, the weight-distributing limit is often the higher of the two, but it only applies when a weight-distributing hitch is actually in use.
Does the hitch rating mean my vehicle can tow that much?
No. The hitch rating and the vehicle rating are separate, and they are often different. Blue Ox tests the hitch to the vehicle’s tow ratings and asks you to check the figure in your owner’s manual and use whichever is less.
What is included for installation?
Mounting hardware is supplied, and Blue Ox hitches often include a wiring plug mounting bracket. Installation requirements vary by vehicle, so follow the Blue Ox instruction sheet for this part number.
