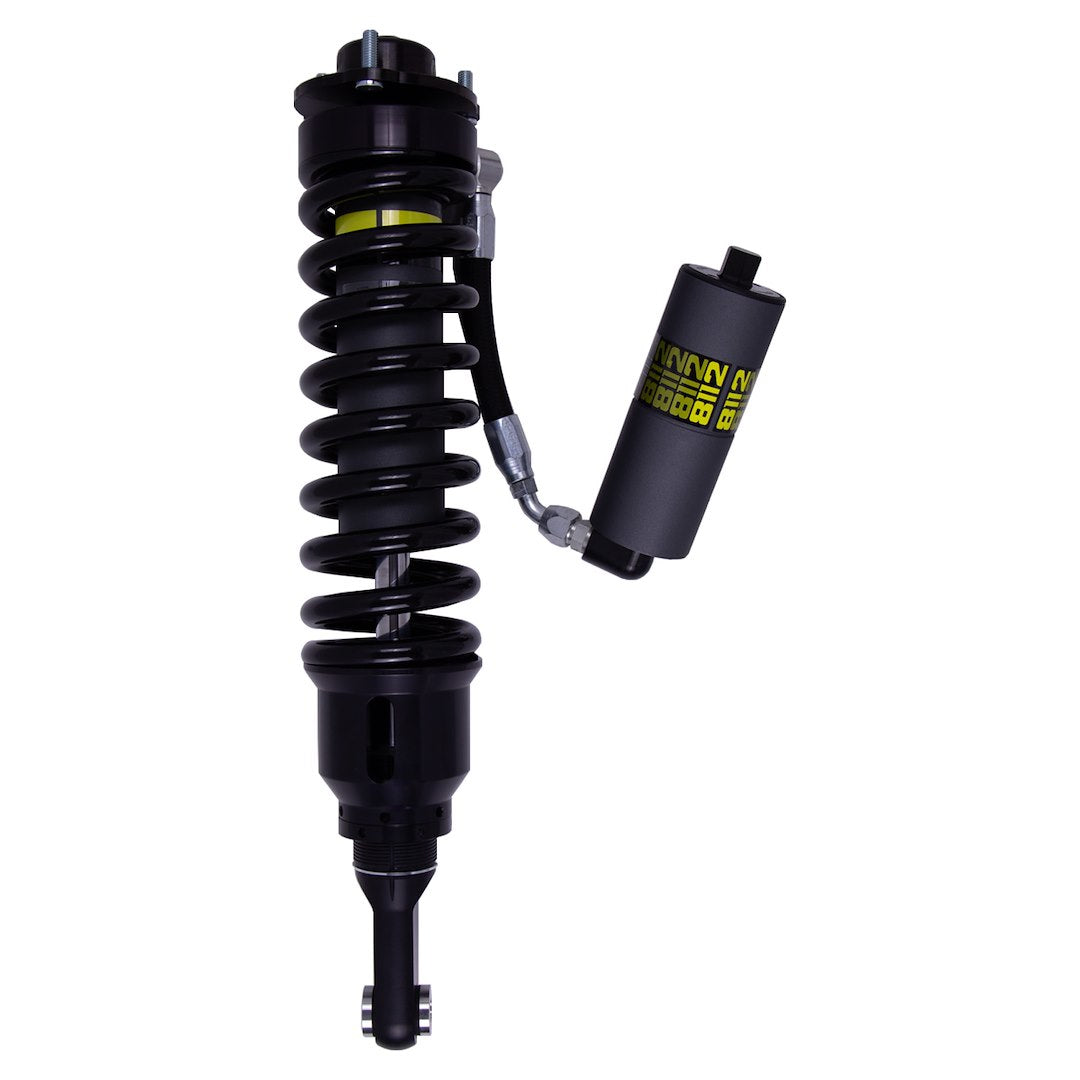

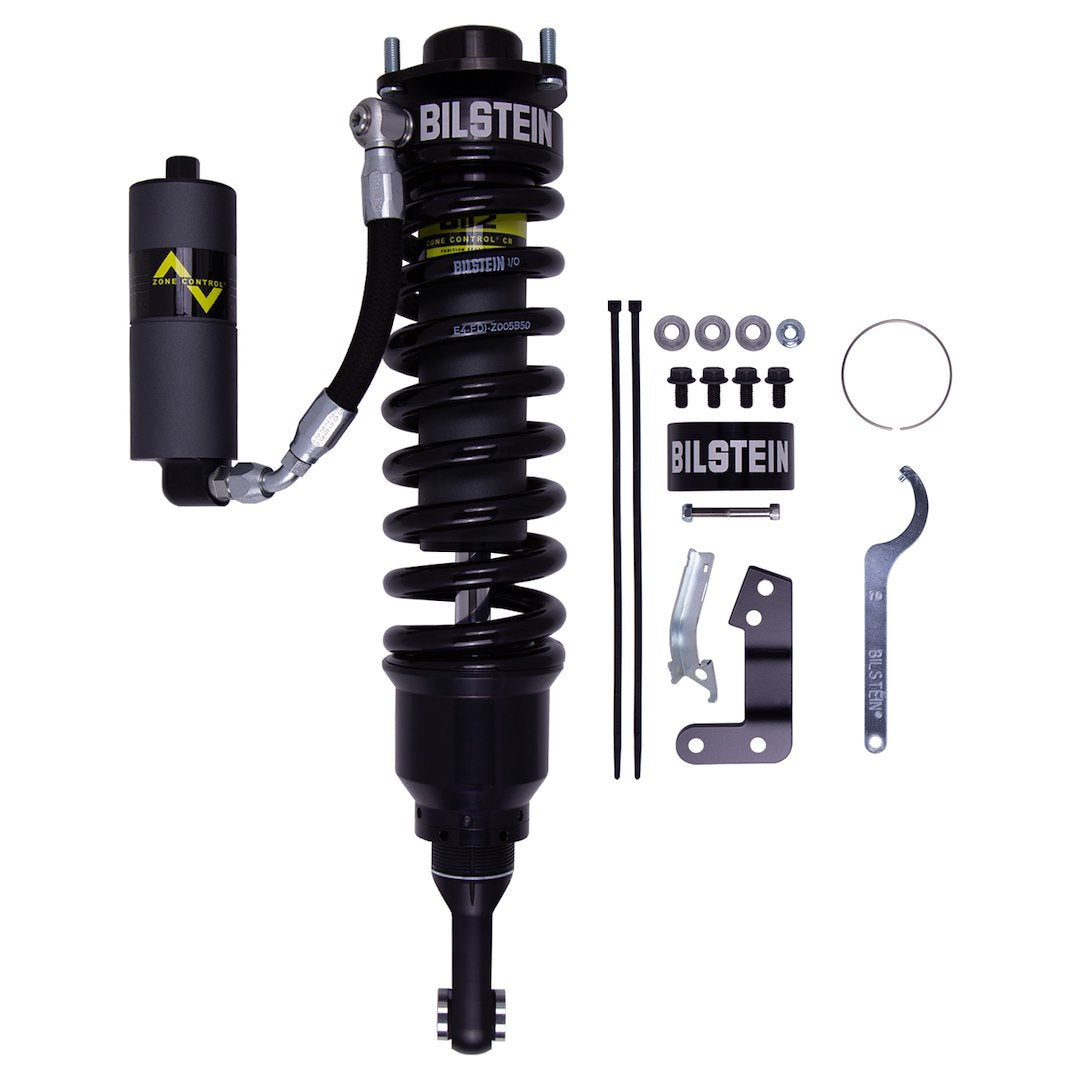

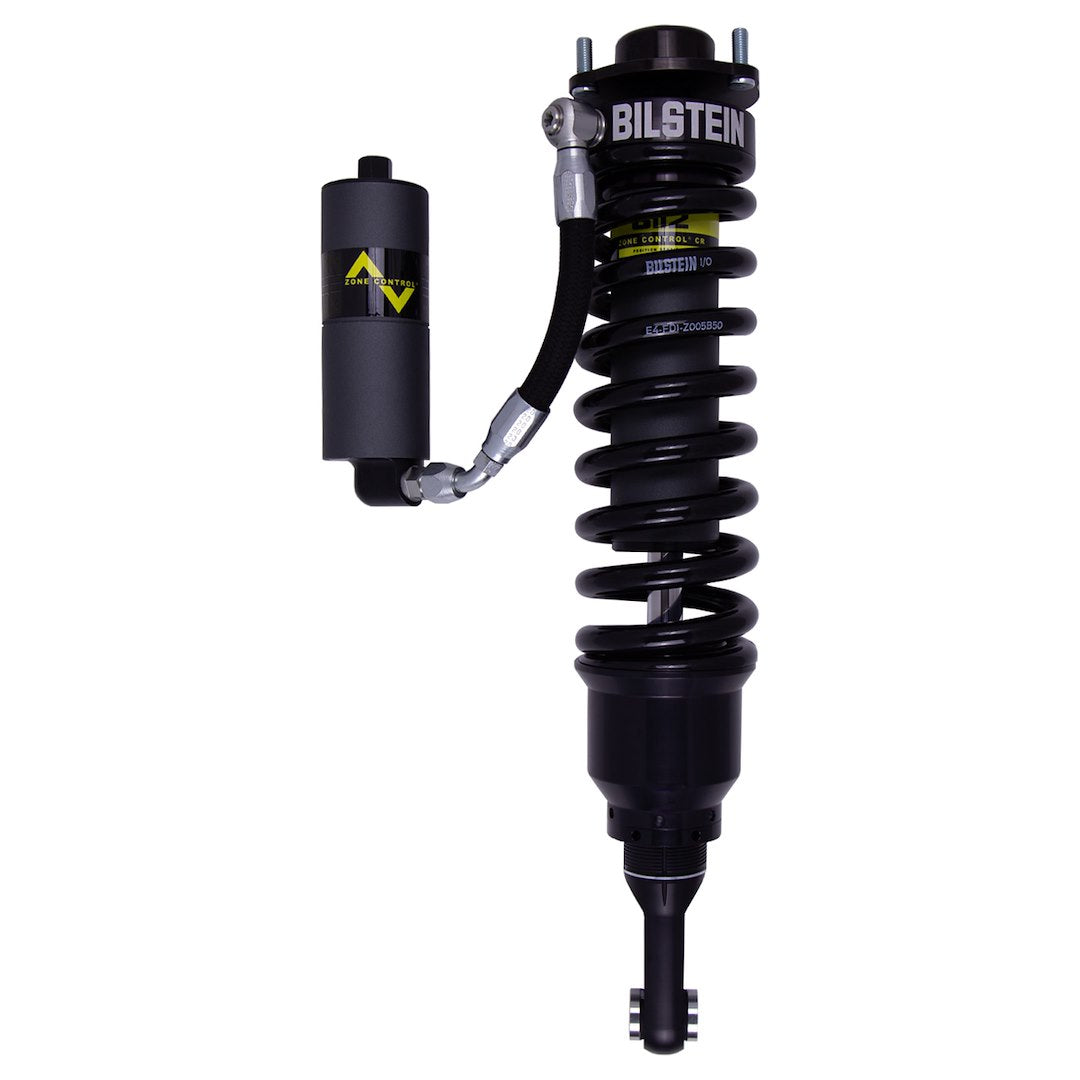

Bilstein 41-324158 Factory Rebuildable
Never before has so much capability been packed into one direct fit suspension kit. BILSTEIN B8 8112 (ZoneControl® CR) suspension kits incorporate a new, revolutionary technology, delivering position sensitive damping in both compression and rebound. ZoneControl® CR provides unparalleled comfort during everyday driving conditions, combined with maximum control under large suspension inputs. The Jounce Cut Off (JCO) system is comprised of two components: the JCO secondary compression valve piston and the 2-stage telescoping compression stop. The JCO system provides bottom out control when the JCO secondary compression valve piston engages the 2-stage telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop. ZoneControl® CR features a triple piston design for unparalleled comfort during every day driving conditions without sacrificing maximum control off-road. The 3 independent working pistons features: JCO (Jounce Cut Off) secondary compression valve piston, Main 60 Millimeter digressive piston, RCO (Rebound Cut Off) secondary rebound valve piston.
Features & Benefits
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60 millimeter remote reservoir for increased oil capacity and cooling
- Aerospace quality components are vehicle specific to optimize wheel travel and clearance
- Aluminum components with zinc plated shock bodies will resist harsh off-road elements
- Factory Rebuildable
- Adjustable threaded spring seat allows for fine-tuned ride height: adjustable range 6 to 2-1/2 inch
- Vehicle specific design and tuning provides the ultimate driving experience
- High quality chrome 5/8 inch heim joint mounting with rubber sealed misalignment spacers offer the most durable, load bearing mount solution

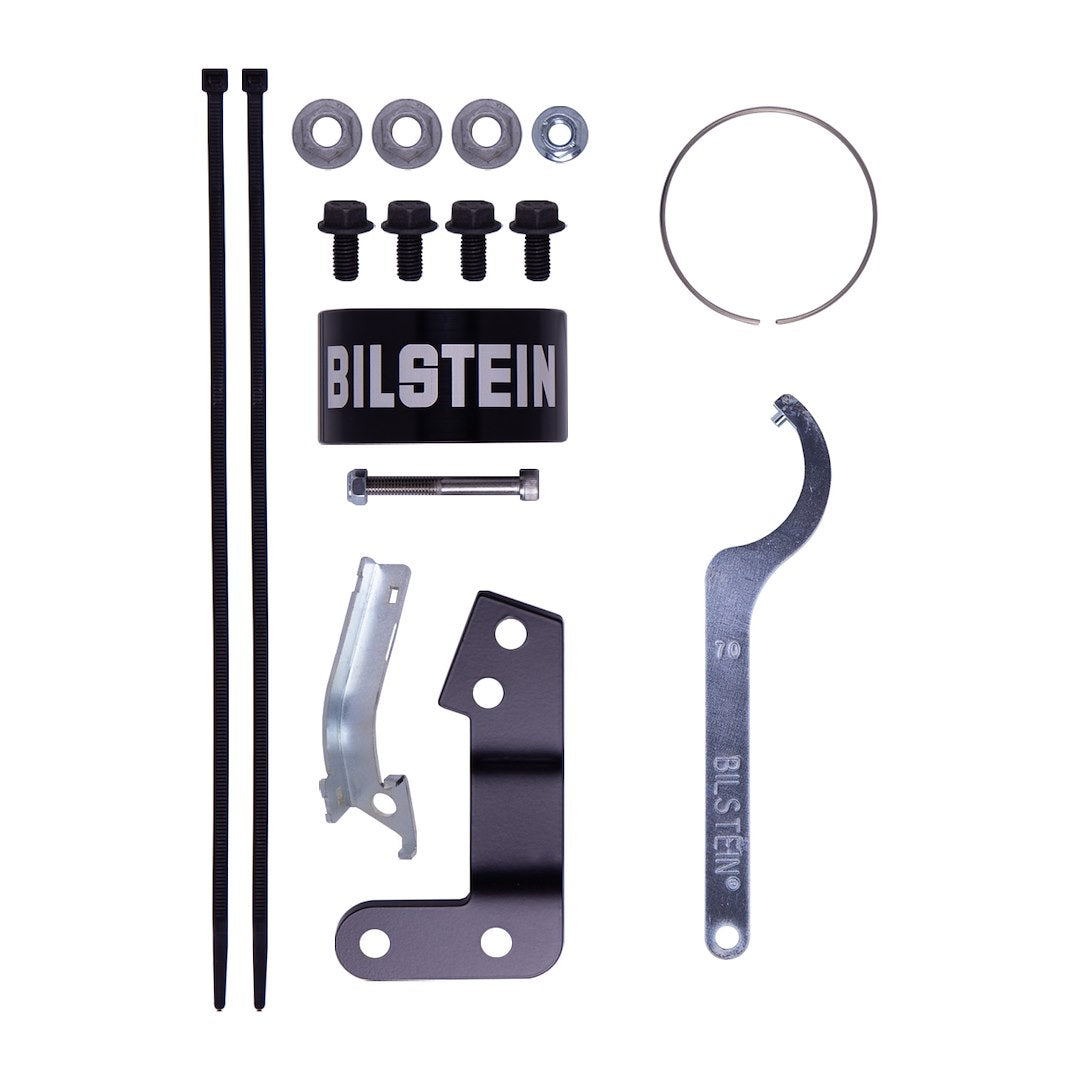

- Coilover supplied as a complete module for easy installation: spring is pre-loaded to the factory recommended ride height
- Limited 2 year warranty
Specifications
| Model | Factory Rebuildable |
| Color | Chrome |
| Weight | 30 lb |
| Dimensions | 33.5 x 11.88 x 8.88 in |
| Brand | Bilstein |
| Manufacturer Part Number | 41-324158 |
| UPC | 651860915760 |
Recommended Items
Commonly ordered accessories for this product:
| Item | Brand | Manufacturer Part Number | Description |
|---|---|---|---|
| Gloves | Perform Tool | W89005 | Gloves |
| Gloves | Perform Tool | W89006 | Gloves |
| Gloves | Perform Tool | W89007 | Gloves |
Frequently Asked Questions
What color is this auto part?
This is the Chrome variant of the Factory Rebuildable from Bilstein.
What are the key construction details?
Bilstein Factory Rebuildable features aluminum components with zinc plated shock bodies will resist harsh off-road elements. See Features & Benefits and Specifications for the full list.
How much does this product weigh?
This item weighs approximately 30 lb.
