Aims Power SCC80AMPPT Thermal design rugged case

For Use With Solar 12/24/36/48 Volt Sealed/ Flooded/ Lithium/ Lead/ Gel/ AGM Batteries featuring Digital Solar Controller and 1200 Watt/ 2400 Watt/ 3600 Watt/ 4800 Watt.

Features & Benefits

• Mppt technology: maximum power point tracking produces maximum available power from pv array to battery bank utilizing peak power of the i-v curve
• Quality heatsink cooling: no fans needed and no thermal derating
• Battery type selector and user defined charging voltage
• 4 stage charging, pv input, battery output and load control ports
• Reliable electronics, over engineered components generating less heat
• Low self consumption and stackable

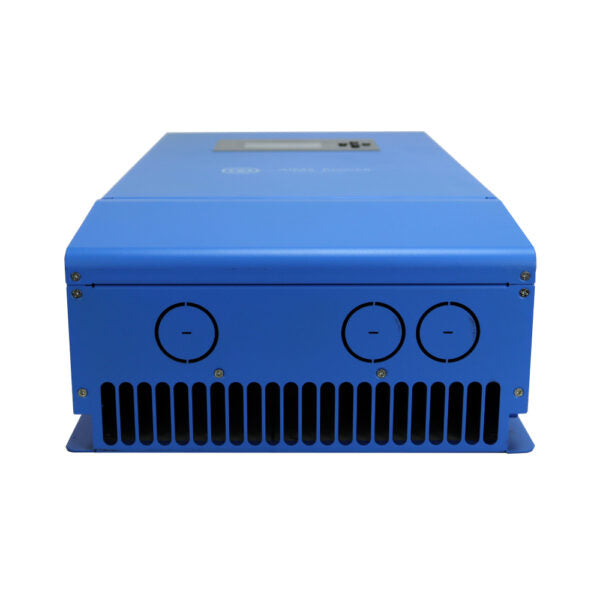

• Thermal design rugged case
• Over temp protection, overload, short circuit, high and low voltage protection
• Ce, etl to ul1741 and rohs compliant and marine coated
• Limited 2 year warranty

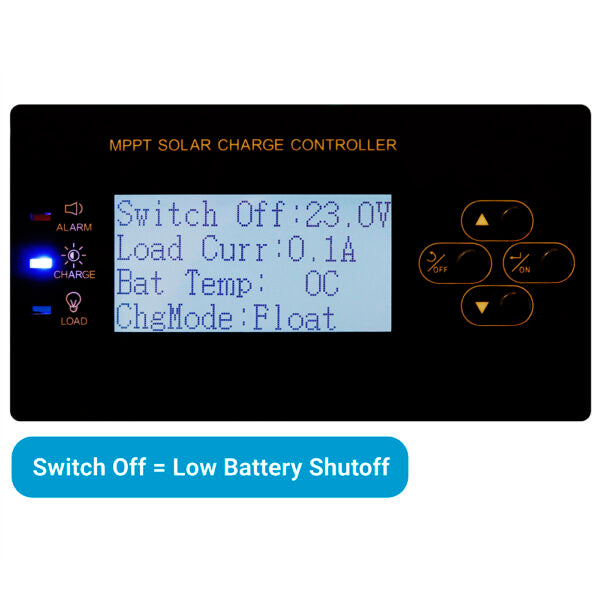

• Digital Solar Controller
• 1200 Watt/ 2400 Watt/ 3600 Watt/ 4800 Watt
• 80 Ampere
• 15 To 150 Volt DC At 12 Volt/ 34 To 150 Volt DC At 24 Volt/ 50 To 150 Volt DC At 36 Volt/ 60 To 150 Volt DC At 48 Volt And 150 Volt Maximum Operating Range
• 14 inch Length x 9 inch Width x 4.7 inch Height Overall Dimension
• 98.5 Percent Efficiency
• -25 degree celsius to 60 degree celsius operating temperature
• IP43 Rating
• UL 458/ CSA 22.2/ ETL to UL1741/ CE/ RoHS/ Cetl Standards

Specifications
