AHJ-4VHD-DP T-H Marine 'Atlas' 4' Jack Plate Heavy Duty

AHJ-4VHD-DP T-H Marine 'Atlas' 4' Jack Plate Heavy Duty

Vendor: T-H Marine

Type: Outboard Motor Jack Plate

SKU: T9TAHJ4VHDDP

Barcode: 733572086805

Regular price $1,793.90
Sale price $1,793.90 Regular price $1,805.77
Shipping calculated at checkout.

Available in stock (24)

Product Overview

The T-H Marine ATLAS™ Heavy Duty Hydraulic Jack Plate (AHJ-4VHD-DP) is built for larger outboards and serious performance. With a 4" setback and fast hydraulic lift, it helps dial in engine height for improved holeshot, efficiency, and handling. This Heavy Duty upgrade is designed for demanding applications and is trusted by boat manufacturers and fishing pros.

Note: This is an oversized item and may incur additional freight charges if shipped via certain carriers.
Key Features & Benefits
  • Heavy Duty ATLAS™ hydraulic design for larger outboards (up to 400 HP applications)
  • 4" setback to help optimize performance and engine position
  • Hydraulic rise: 5-3/4" with total rise 8-1/4" to 9-3/4"
  • Fast lift time: ~8 seconds
  • Includes rocker switch and relay harness
  • Made in USA; Limited Lifetime Frame & 3-Year Structural Warranty
Specs
Adjustment Type Hydraulic
Setback 4 Inch
Hydraulic Rise 5-3/4 Inch
Total Rise 8-1/4 Inch to 9-3/4 Inch
Max Horsepower 400 HP applications (Heavy Duty series)
Weight Capacity 625 Pound
Rise Time 8 Seconds
Material / Finish Aluminum / Polished
Includes Rocker Switch + Relay Harness
Manufacturer Part # AHJ-4VHD-DP
UPC / Barcode 733572086805
In the Box
  • ATLAS™ Heavy Duty hydraulic jack plate assembly
  • Rocker switch
  • Relay harness
  • Mounting hardware (as applicable)
FAQ

Q: Will this fit my boat/outboard?
A: Fitment depends on your transom and outboard model. Many builders recommend verifying setback and engine rating with your boat manufacturer or local dealer.

Q: Does it include the switch and wiring?
A: Yes — includes a rocker switch and relay harness.

Q: Is this oversized shipping?
A: Yes — additional freight charges may apply depending on carrier and destination.

Prop 65 Warning

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.

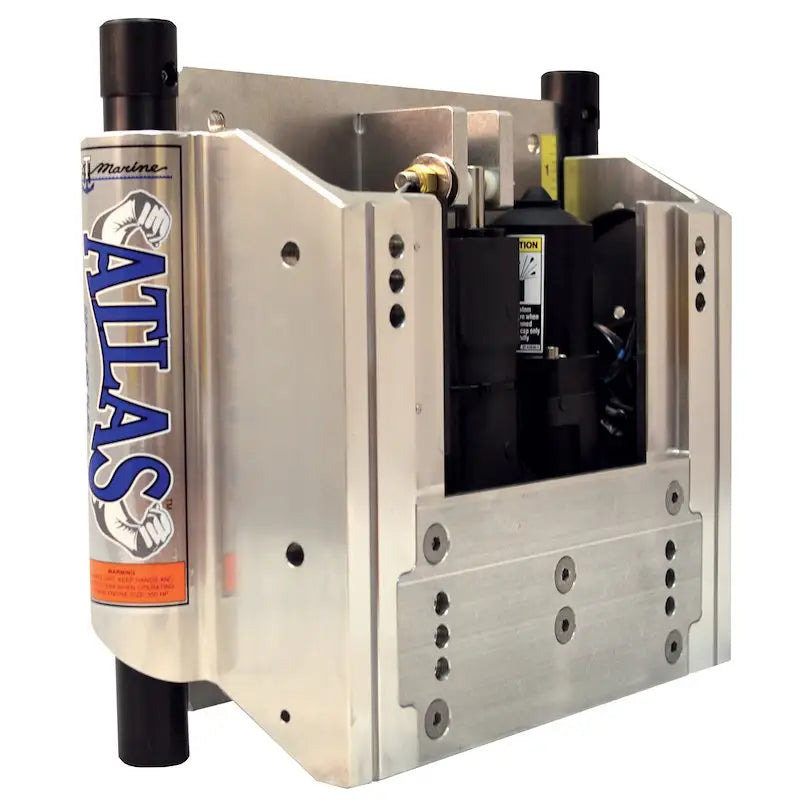

Heavy duty T-H Marine Atlas jack plate with silver winch housing
