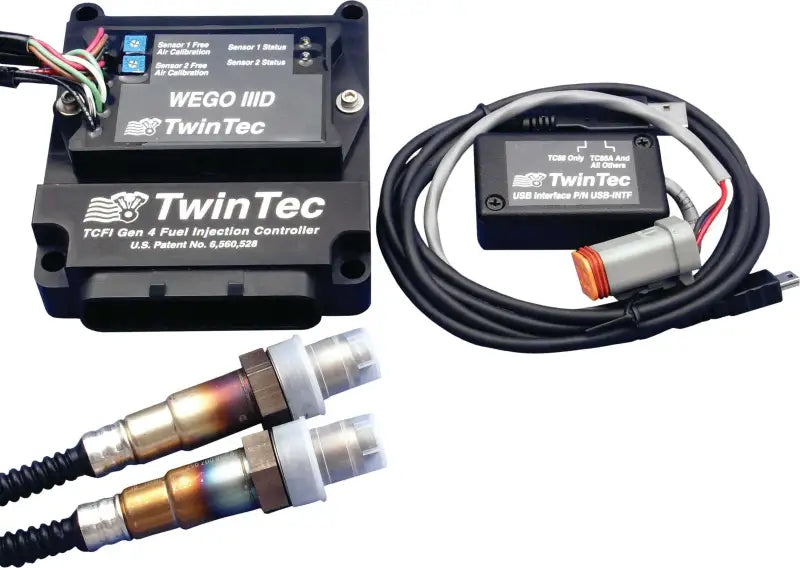

17401 Tcfi 4 Efi Controller Sportster

The TCFI kit includes the WEGO IIID dual channel wide-band exhaust gas oxygen interface that allows quick auto-tuning on a dyno or on-road during actual riding conditions. The kit includes Bosch LSU 4.2 wide-band sensors for both front and rear cylinders. The TCFI solves tuning problems with highly modified engines. Competitive “band-aid” products that interface to the Delphi ® controller still rely on speed-density fuel control. Long duration/high overlap camshafts wreak havoc with manifold pressure - especially at idle and cruise RPM. Speed-density based fuel control simply can’t cope.
Features:

• Fully programmable plug-in replacement for 36 pin Delphi controller with J1850 data bus


• Quickly auto-tune fuel curves for front and rear cylinders on a dyno or on-road with new WEGO IIID dual channel wide-band oxygen sensor interface


• Robust alpha-N (throttle position and RPM based) fuel control eliminates problems with long duration/high overlap camshafts


• Extended data logging and diagnostics


• DataFLASH memory stores full 60 minutes of operating data at 10 samples/second


• Powerful Windows software for custom programming and data analysis


• Billet aluminum housing with black anodized finish


• Support for new 6th gear indicator on '07-13 models


• Easy plug-in installation Supports all sensors including theft/security module


• Not legal for use in California on pollution controlled vehicles - check local laws before installation
