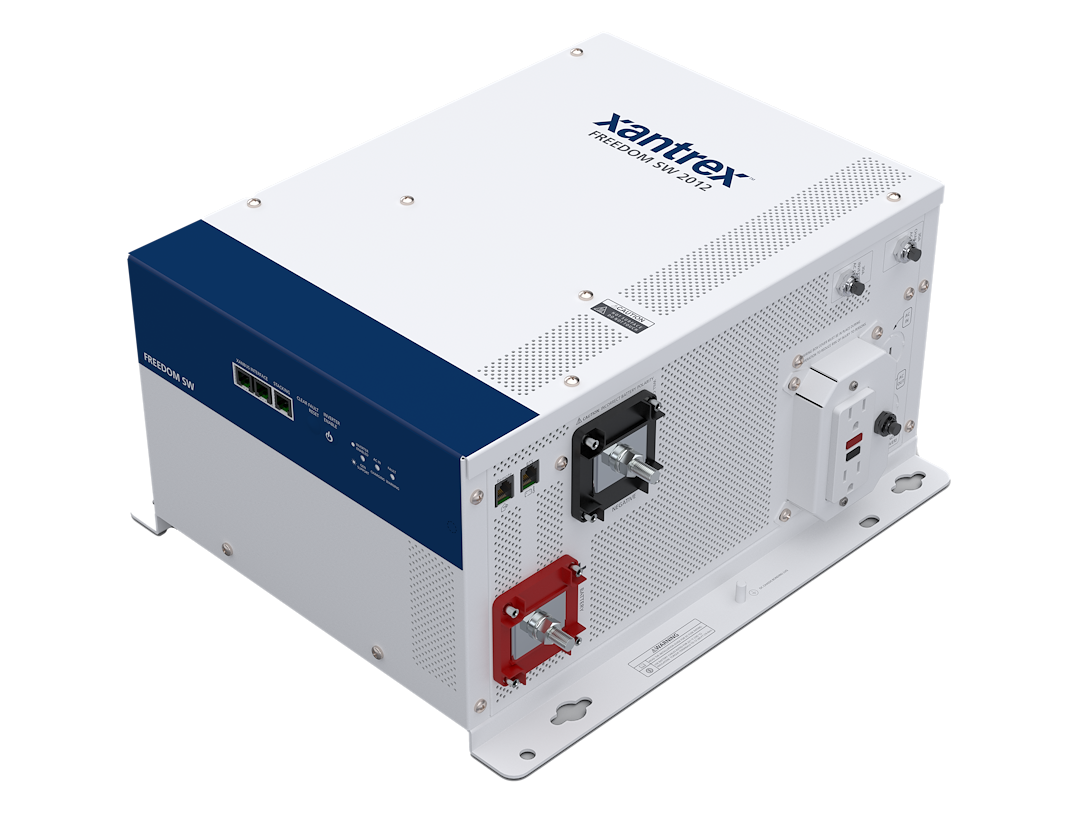

Xantrex LLC 815-3012-11 Power Inverter/ Battery Charger
Xantrex LLC 815-3012-11 Power Inverter/ Battery Charger
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Xantrex LLC 815-3012-11 True sine wave output
For 12 Volt Batteries featuring Inverter: 10 To 16 Volt DC Input Voltage/ Charger: 85 To 140 Volt AC Input Voltage and 3000 Watt Continuous Output/ 6000 Watts Surge.
Features & Benefits
- Parallel stacking enables the freedom sw inverter/ chargers to double the available ac output current in inverter mode
- True sine wave output to operate sensitive electronics
- Advanced configuration options for customized applications
- Built-in transfer switch automatically transfers between inverter power and incoming ac power
- Ignition lockout feature helps to minimize unnecessary battery drain
- Conformal coated circuit boards for humid environments
- Battery over-voltage and under-voltage protection
- Power factor corrected multi-stage charger for fast, efficient charging
- Ability to charge batteries drained to extremely low voltage
- Limited 2 year warranty
- Inverter: 10 to 16 volt dc input voltage/ charger: 85 to 140 volt ac input voltage
- 3000 watt continuous output/ 6000 watts surge
- 150 amp output current
- 90 Percent Efficiency
- -4 to 140 degree fahrenheit operating temperature
- Standard: ETL listed to CSA 107.1/ UL458/ Abyc E11/ A-31/ A-32
- True sine wave output
- Built-In Gfci
- Split phase input/ dual output
- With battery over-voltage and under-voltage protection/ over-temperature shutdown protection/ automatic overload protection/ short-circuit protection
- With remote battery sensor/ transfer switch/ power factor corrected 3-stage charger
- Optional remote panel (sold separately)

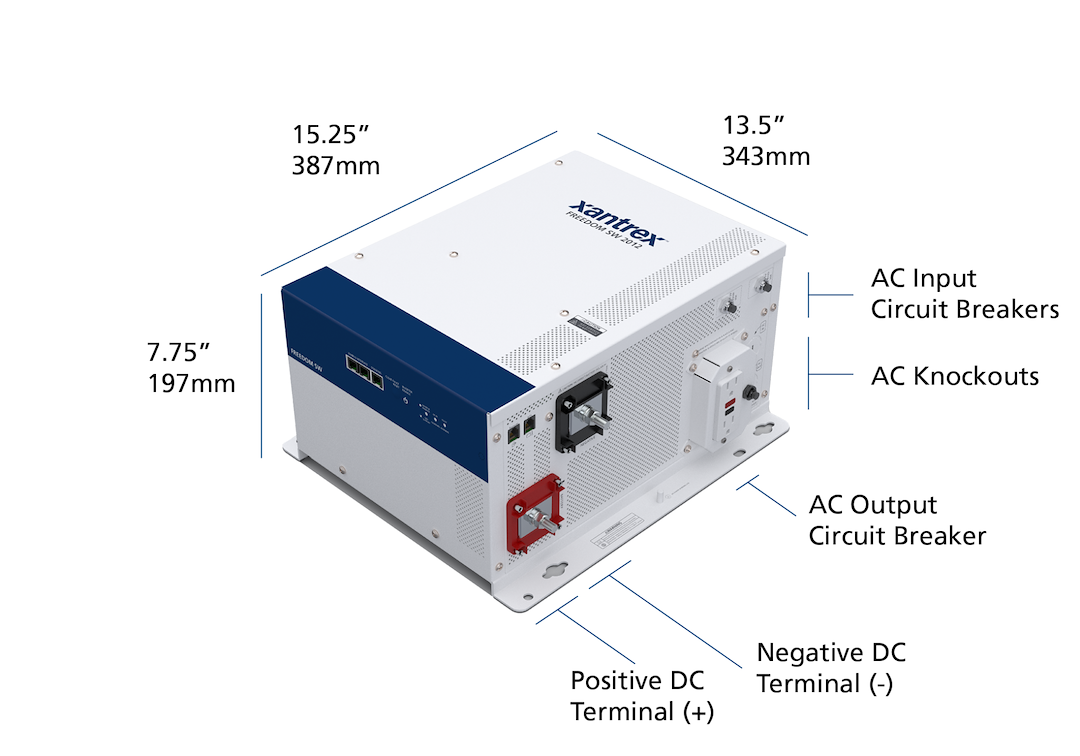

- 7-3/4 inch Height x 13-1/2 inch Width x 15-1/4 inch Length
Specifications
| Model | True sine wave output |
| Weight | 60.5 lb |
| Dimensions | 15.25 x 13.5 x 7.75 in |
| Brand | Xantrex LLC |
| Manufacturer Part Number | 815-3012-11 |
| UPC | 715535927998 |
