Newmar 115-12-35CD Power Supply
Newmar 115-12-35CD Power Supply
Hurry up, only 1 item left in stock.
Couldn't load pickup availability

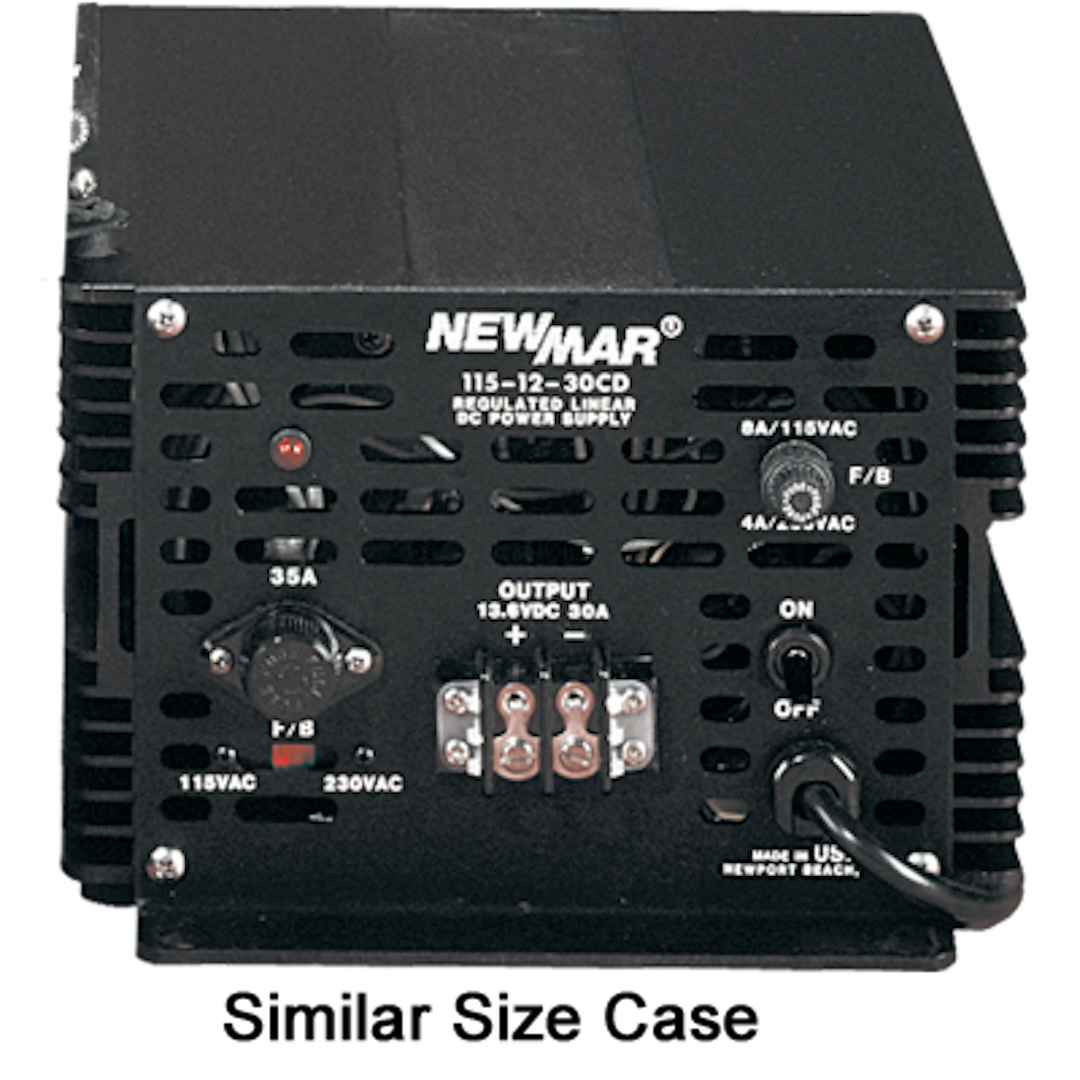

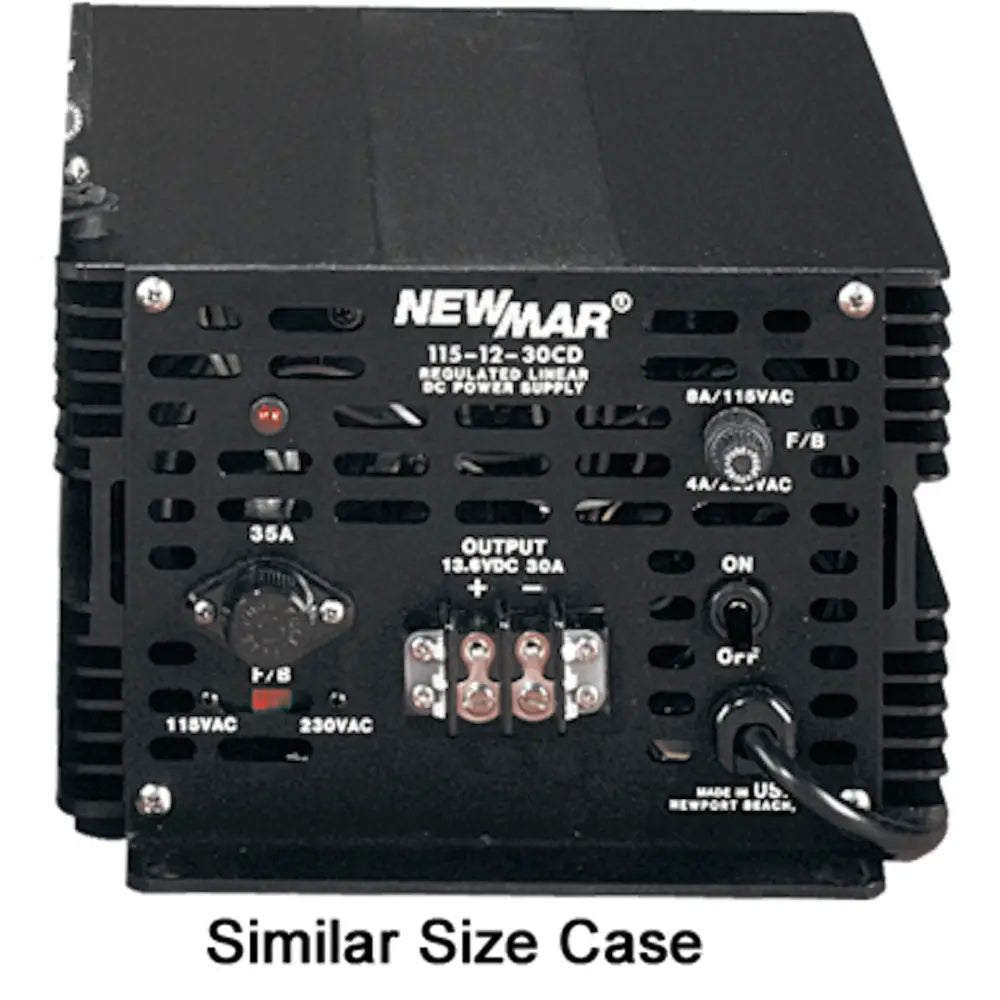

Newmar 115-12-35CD
Used To Power 12 Volt Communication Equipment featuring 115/230 AC Input Voltage/ 13.6 Volt DC Output Voltage and 7.5 Amp Input Current At 115 Volt/ 3.5 Amp Input Current At 230 Volt And 35 Ampere Intermittent/ 35 Ampere Continuous Output Current.
Features & Benefits
- Excellent regulation and ripple spec: output voltage maintained within 1 percent under all rated line and load conditions
- Polyurethane conformal coated pc board and corrosion resistant heavy duty aluminum case with integral shock mounts assures survival in hostile environments
- Heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
- Protection: overvoltage, current limit; thermal overload and input and output fusing
- Thermally activated cooling fan on “cd” units
- Limited 2 year warranty
- 115/230 ac input voltage/ 13.6 volt dc output voltage
- 7.5 amp input current at 115 volt/ 3.5 amp input current at 230 volt and 35 ampere intermittent/ 35 ampere continuous output current
- 0 to 65 degree celsius operating temperature
- Black
- Aluminum
- 9-1/2 inch Width x 14 inch Depth x 6-1/2 inch Height
- With integral shock mounts/ thermally activated cooling fan
Specifications
| Color | Black |
| Material | Aluminum |
| Weight | 35 lb |
| Dimensions | 18 x 14 x 10 in |
| Brand | Newmar |
| Manufacturer Part Number | 115-12-35CD |
Frequently Asked Questions
What color is this auto part?
This is the Black variant from Newmar.
What are the key construction details?
Newmar features aluminum. See Features & Benefits and Specifications for the full list.
How much does this product weigh?
This item weighs approximately 35 lb.
