KC HiLiTES  |  SKU: 335

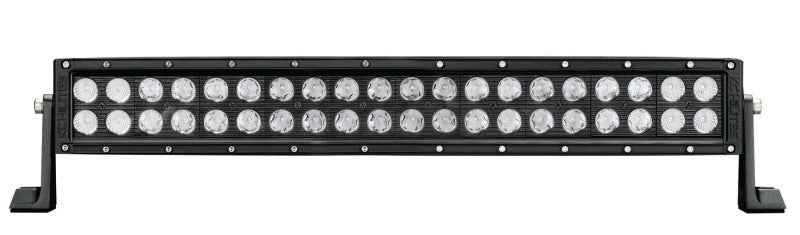

KC HiLiTES C-Series 20in. C20 LED Combo Beam Light Bar w/Harness 120w - Single

$349.99 USD
Shipping calculated at checkout.



Care information

Check with Manufacturers Guides

Delivery and Shipping

Typical Processing time is 1-2 Business Days. Most Orders Ship out same day if processed by 12PM. All Orders have Free Ground Shipping. We also offer Expedited Shipping and Store Pickup.

Please reach out if you need help!

KC HiLiTES

Number one Selling Products

FEATURES
-20" 120W C-SERIES LED Light Bar
-Precision reflectors with forward facing LEDs
-Combo Beam Pattern: 8 Spot & 90 Spread
-Extruded Aluminum Housings
-GORE Membrane Barrier

LIGHT PERFORMANCE
-Raw Lumens: 10,800 lm
-Lux @ 10 Meters: 1,750 lx
-Candela: 175,000 cd
-Beam Distance (Meters): 837m

SPECIFICATIONS
-Wattage: 120W
-LED Source: CREE LED
-Color Temperature: 6000K
-Amp Draw: 10.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: L - 21.38" x H - 3.09" x D - 3.40"

Parts Included with C-SERIES Light Bars
-Wiring Harness w/ 2-Pin weather proof connectors
-Die-Cast Mounting Brackets w/ hardware

PERFORMANCE OUTPUT AND CLARITY
The 20" C-Series uses an advanced dual row CREE LED design delivering 10,800 Lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.

HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency.

COMBO BEAM PATTERN AND ADVANTAGES
When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 Spot & 90 Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.

DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes, the C-Series is resistant to moisture and dust.
KC's C20- 20" LED LIGHT BAR provides 120w of Performance, featuring a versatile combo beam pattern, both 8 Spot and 90 Spread reflectors. Great for hood, front bumper, and grille applications on Jeeps, Trucks, UTVs and more.
FEATURES-20in. 120W C-SERIES LED Light Bar-Precision reflectors with forward facing LEDs-Combo Beam Pattern: 12 Spot/30 Spread-Extruded Aluminum Housings-GORE Membrane BarrierLIGHT PERFORMANCE-Raw Lumens: 10;800 lm-Lux @ 10 Meters: 1;750 lx-Candela: 175;000 cd-Beam Distance (Meters): 837m SPECIFICATIONS-Wattage: 120W-LED Source: CREE LED-Color Temperature: 6000K-Amp Draw: 10.0A-Voltage: 9V-32V-IP Rating: IP67-Product Dimensions: L-21.38in. x H-3.09in. x D-3.40in. Parts Included with C-SERIES Light Bars-Wiring Harness w/2-Pin weather proof connectors-Die-Cast Mounting Brackets w/hardwarePERFORMANCE OUTPUT AND CLARITYThe 20in. C-Series uses an advanced dual row CREE LED design delivering 10;800 Lumens of output with maximum power efficiency. They are perfect for hood; front bumper; windshield and grille applications providing balanced and powerful light illumination. HIGH PERFORMANCE MEETS AFFORDABILITYC-Series light bar features an extruded aluminum housing; aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. COMBO BEAM PATTERN AND ADVANTAGESWhen it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 12 Spot/30 Spread reflectors; for maximum forward distance and increased peripheral illumination along road edges.DESIGNED FOR DURABILITYOff road race tested; the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes; the C-Series is resistant to moisture and dust.
