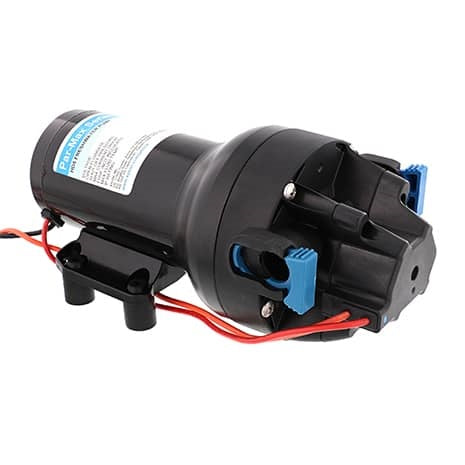

Jabsco Diaphragm Design Allows Dry Running Fresh Water Pump P501J-115S-3A - Parmax HD5 12V 5GPM 40PSI
Jabsco Diaphragm Design Allows Dry Running Fresh Water Pump P501J-115S-3A - Parmax HD5 12V 5GPM 40PSI
Regular price
$295.99
Sale price
$295.99
Regular price
Shipping calculated at checkout.
Available in stock (15)
Couldn't load pickup availability
Jabsco P501J-115S-3A Thermal Motor Protection
12 Volt DC featuring Self-Priming and 5 Gallon Per Minute.
Features & Benefits
- Connections: for 13 millimeter 19 millimeter bore hose
- New 5 chamber design, heavy duty, coated motor
- Diaphragm design allows dry running
- High flow and high pressure
- Water resistant ipx6 suitable for use with seawater
- Self-priming up to 2.4 meter or 8 feet vertical lift
- Heavy duty models feature motors and cast aluminum lower housings for longer life even at high pressures
- Limited 1 year warranty
- Self-Priming
- 5 gallon per minute
- Shuts Off at 40 PSI
- 9.6 inch Overall Length x 5 inch Overall Width x 4.7 inch Overall Height
- Thermal Motor Protection

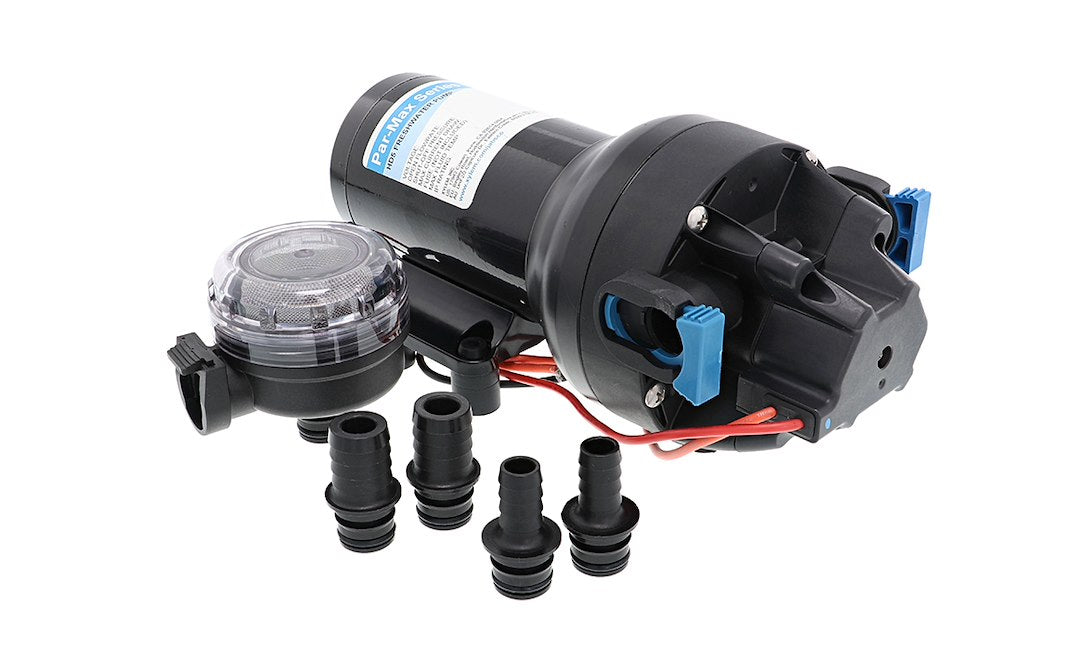

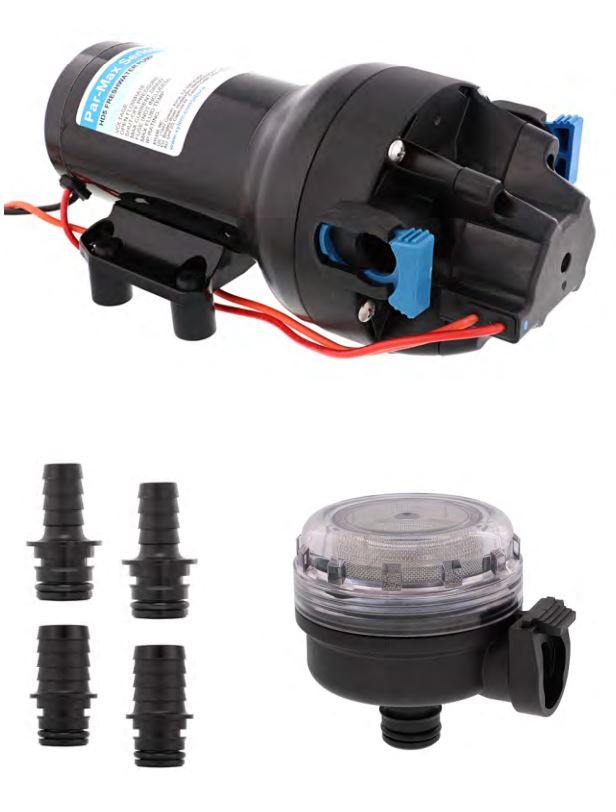

- With 2 inch x 1/2 inch Straight Hose Barb/ 2 inch x 3/4 inch Straight Hose Barb/ 90 Degree Quick Connect Strainer
Specifications
| Model | Thermal Motor Protection |
| Weight | 8.3 lb |
| Dimensions | 15.5 x 6 x 5.5 in |
| Brand | Jabsco |
| Manufacturer Part Number | P501J-115S-3A |
| UPC | 671880841948 |
Frequently Asked Questions
What stands out about this auto part?
Key details include diaphragm design allows dry running. Review the full feature list and specifications on this page for complete details.
How much does this product weigh?
This item weighs approximately 8.30 lb.
