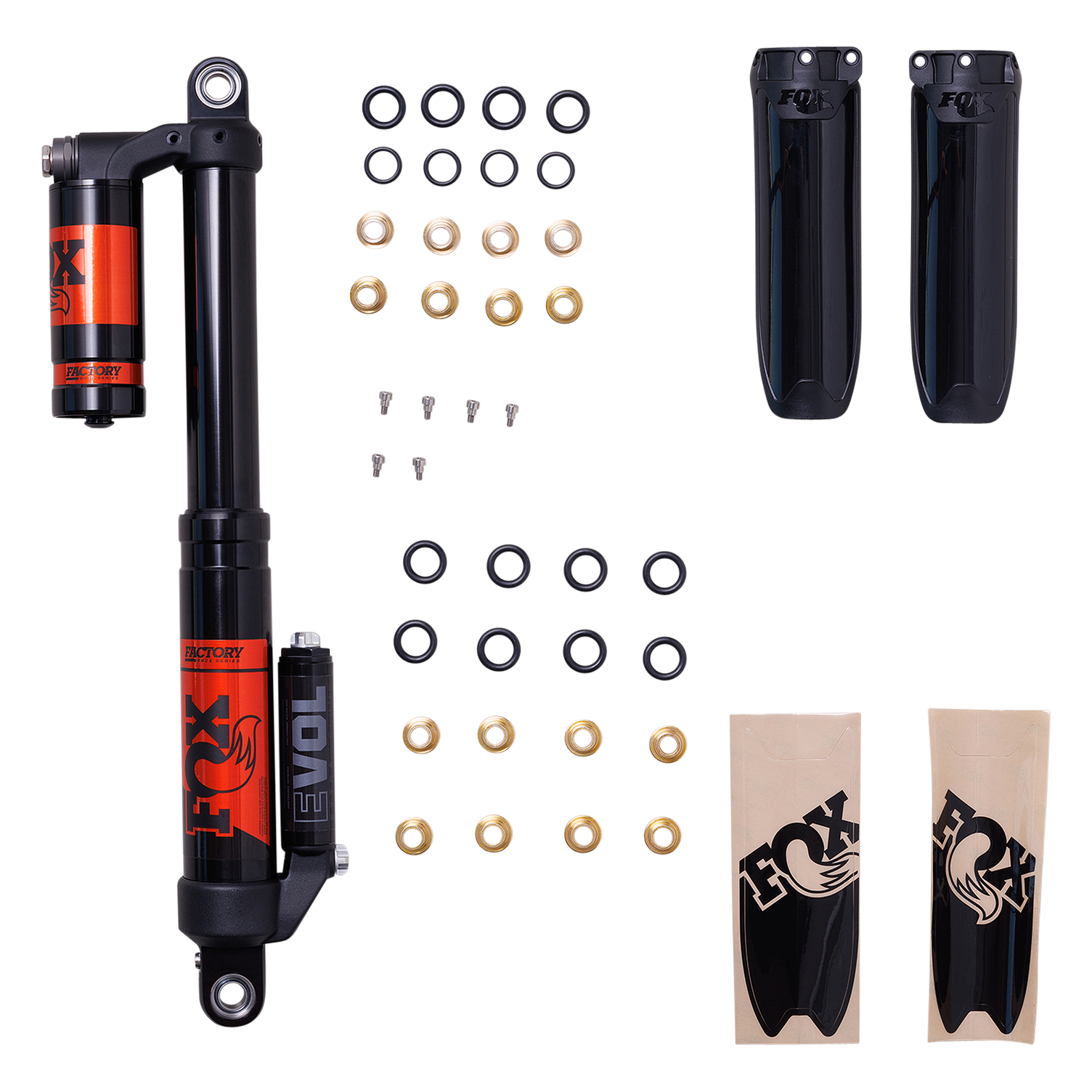

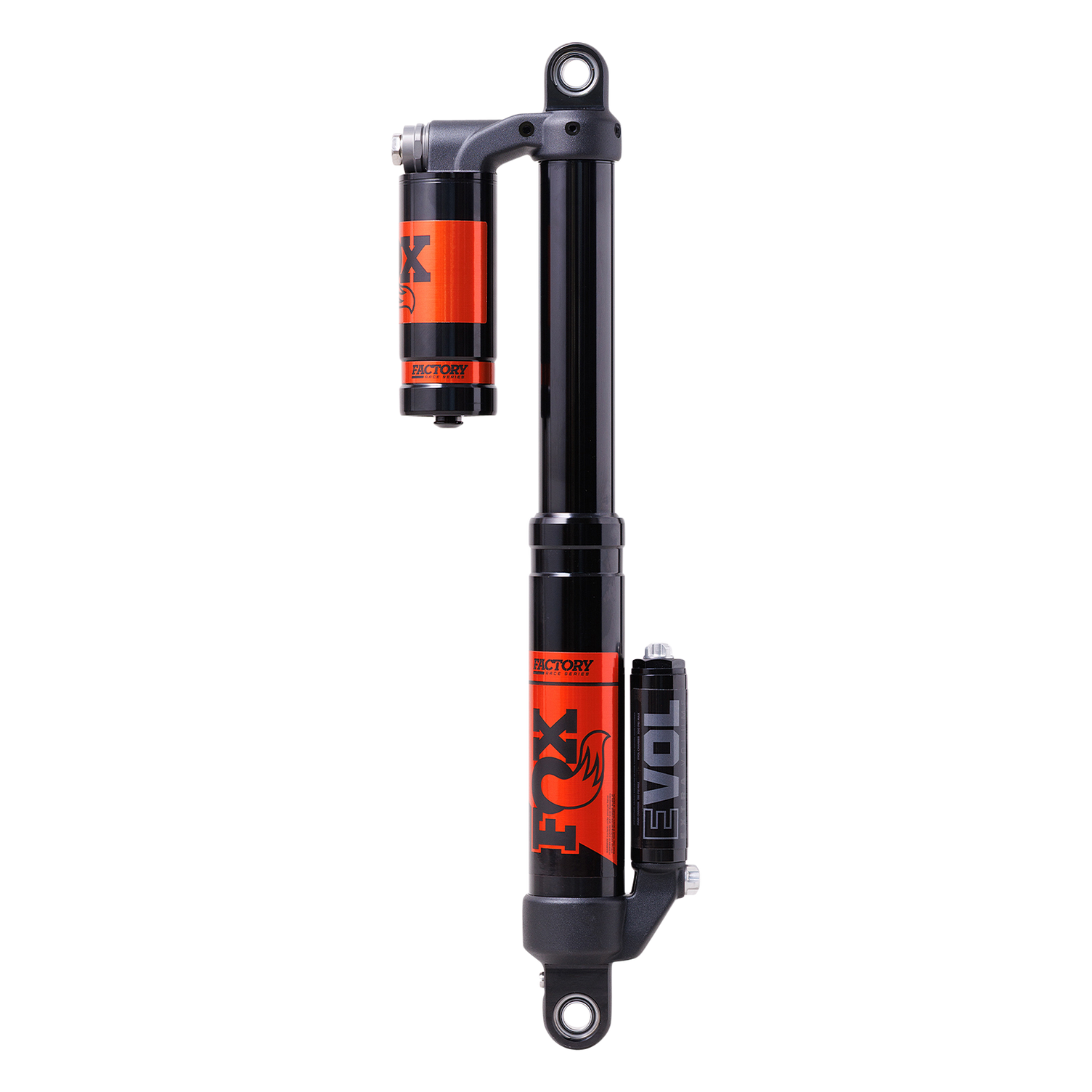

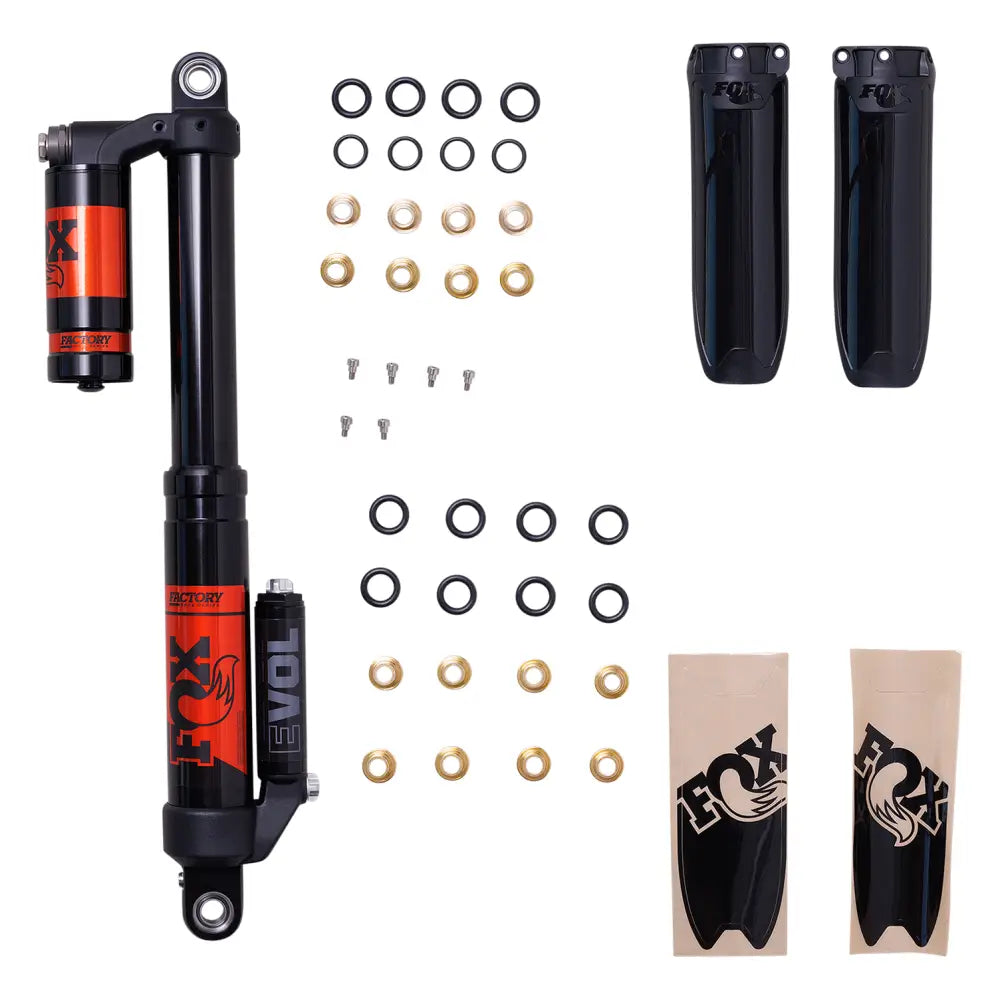

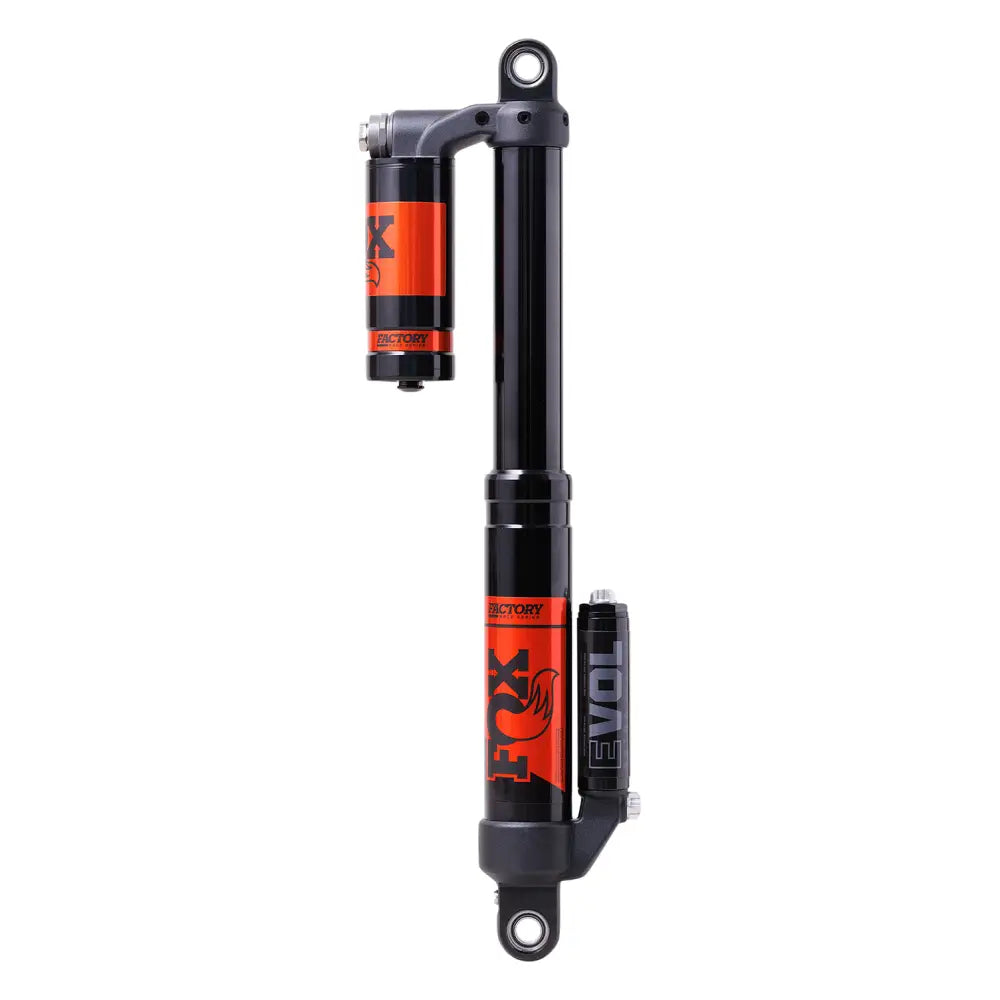

FOX 830-24-237 ATV Float 3 Evol Rc2 Shocks

The FOX ATV Float 3 Evol Rc2 Shocks suspension is a replacement option for ATV / UTV. This listing is Black. Specs call out atv type sport, race, spring air, and 4.4 lbs @ 17.6”. Verify fitment against your existing part before ordering.

Features & Benefits

• ATV Type Sport, Race
• Spring Air
• 4.4 lbs @ 17.6”
• External rebound adjustment allows you to tune the rate the shock returns after compression in order to optimize control in all conditions
• New high-flow, high- and low-speed compression adjuster offers an increased adjuster range
• Chrome-silicon negative spring offers improved stutter bump compliance
• Fine-tune roll and turning capabilities with the infinitely adjustable EVOL air chamber: Regulate spring rate in the final portion of the stroke and control bottoming-out
• Infinitely adjustable MAIN air chamber gives a progressive spring rate and provides significant weight savings
• Race-proven velocity-sensitive damping control technology: Custom-tuned for its intended application with different piston flow designs and variable valving specifications
• Shed up to six pounds off your ATV (when replacing coil spring shocks)
• Precision manufactured damping pistons for maximized damping consistency and flow characteristics
• Aerospace-grade PTFE-lined spherical bearings to maximize durability
• Anodized Internal Floating Piston (IFP) and bearing housing to prevent oil contamination and to boost seal durability and lifespan
• 6061-T6 aluminum piggyback body caps, bodies, air sleeves and reservoirs
• Fully re-buildable and serviceable
• Genuine Kashima coat’s distinctive gold color backed by its buttery-smooth, high performance attributes — exceptionally smooth feel and extreme durability
• Samurai Sealing System specifically designed from a special low-temperature, highly durable material that scrapes away dirt, mud and debris while keeping the seals lubricated for minimal friction
• Ultra-lightweight

Specifications
