Fabtech 2019 Ford F450/550 4WD 6in 4 Link System w/DL Shocks

Fabtech 2019 Ford F450/550 4WD 6in 4 Link System w/DL Shocks

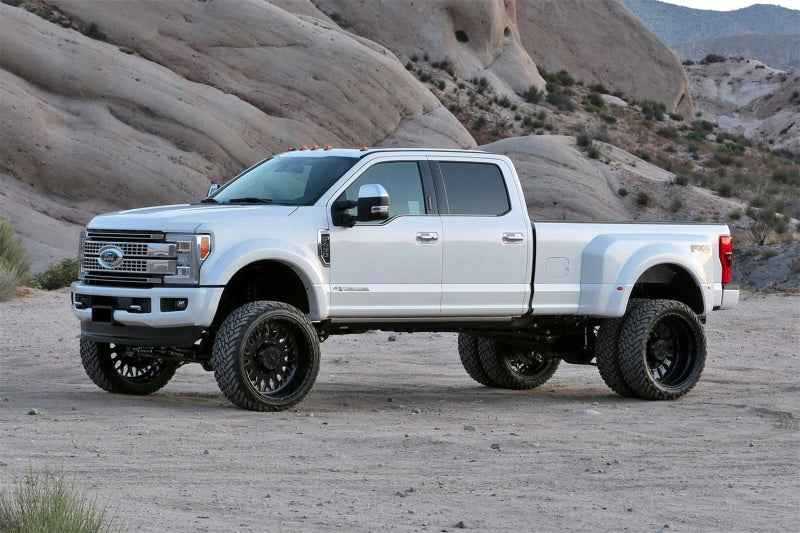

Enhance your Ford F450 or F550 Super Duty with the Fabtech 6" 4 Link Conversion System, designed to meet the rigorous demands of both on-road and off-road enthusiasts. This robust suspension system is engineered specifically for the unique requirements of the F450 and F550, providing superior performance that sets it apart from the F250 and F350.

Key Features and Benefits:

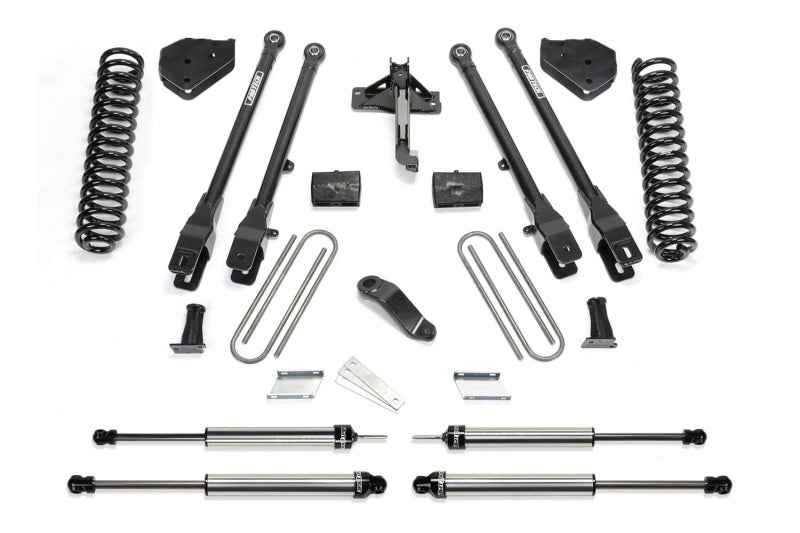

• Complete Conversion Kit: Everything you need to switch to a 4 Link front suspension is included, ensuring a seamless upgrade process.
• Reduced Caster Change: Enjoy improved on-road driving dynamics with less caster change throughout the travel range.
• Enhanced Off-Road Articulation: The 4 Link system offers superior articulation compared to traditional Radius Arm systems, allowing you to tackle diverse terrains at any speed.
• Proven Reliability: With over 10 years of proven service across consumer, commercial, and military applications, Fabtech components ensure durability and performance.
• High-Quality Construction: Expertly built in-house, each component features high-quality materials and precise design for optimal suspension geometry.

Detailed Specifications:

• Link Arms & Brackets: 2" OD heavy wall link arms with 1/4" thick steel brackets. Features adjustable alignment cams and Fabtech's legendary 5 Ton joints for long-lasting service and quiet operation.
• Coil Springs: American-made coil springs engineered for a compliant ride quality, with preset specifications to prevent settling over time and allowing for a 2" increase in wheel travel.
• Track Bar Bracket: 1/4" thick steel bracketry that repositions the factory track bar to effectively center the axle.

Tire and Wheel Compatibility:

• 37/12.50R17 with 17X9 Wheel (4 3/4" BS, minor trimming required)
• 37/12.50R18 with 18X9 Wheel (4 3/4" BS, minor trimming required)
• 37/13.50R20 with 20X9 Wheel (5" BS, minor trimming required)

Note: Some models may not sit level after installation. Front driveshaft modification is required or order driveshaft (FTS92035).

Upgrade your suspension with the Fabtech 6in 4 Link System and experience the ultimate in performance and capability for your Ford F450 or F550!
