Fabtech 17-20 Ford F250/350 4WD Diesel 8in 4 Link System w/DL Shocks

Fabtech | SKU: K2266DL

MPN: K2266DL

$4,904.28 USD

Free Shipping

Care information

Check with Manufacturers Guides

Delivery and Shipping

At our website, we pride ourselves on swift delivery and shipping. Our standard processing time is by 12 PM Pacific Standard Time, ensuring most orders ship out on the same day when processed before noon. Plus, enjoy the added benefit of free ground shipping on all orders. For those who need their items even faster, we offer expedited shipping options, and you can also opt for convenient in-store pickup.

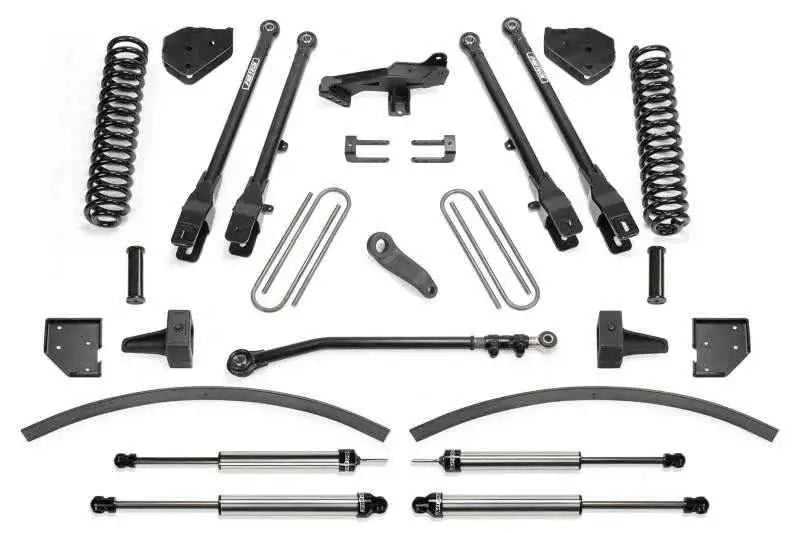

Fabtech 17-20 Ford F250/350 4WD Diesel 8in 4 Link System w/DL Shocks

Transform your Ford Super Duty with the exceptional Fabtech 8” Super Duty suspension system. Designed specifically for 2017-2020 Ford F250/F350 4WD Diesel models, this advanced suspension kit delivers unmatched performance both on and off the road.

Key Features:

Innovative 4 Link Design: Combines proven Radius Arm and 4 Link technologies for optimal stability and handling.
Offset Track Bar System: Addresses steering sensitivity, providing a smoother driving experience even with an increased ride height of 8 inches.
Extended Track Bar: 4” longer than stock, ensuring improved alignment and reduced steering push.
Full Lock Steering: Supports up to 15.50 wide tires with 5” backspacing wheels for enhanced maneuverability.
Premium Shock Absorbers: Includes Dirt Logic 2.25 Stainless Steel shocks for superior ride quality.
Variety of Spring Options: Choose between performance Coil Springs or the Dirt Logic 4.0 Coilover Conversion system for maximum damping.
Durable Construction: Features a robust 1/4” thick steel mounting bracket for long-lasting performance.
Easy Installation: Designed for a bolt-on installation process, making upgrades simple and efficient.

Compatibility:

This system is compatible with:

Non-Dually models only
Diesel models

Note: Vehicles equipped with a 2-piece driveshaft require FTS419, and front driveshaft modification is necessary or consider ordering driveshaft FTS92035.

Warranty:

Enjoy peace of mind with Fabtech’s 5-year/60,000-mile warranty, ensuring quality and durability for your investment.

Tire and Wheel Specifications:

This system accommodates a variety of tire sizes, including:

Tire Size: 38/13.5R18 with 18x9 wheels (4 3/4” BS) - Minor trimming required
Tire Size: 38/15.5R18 with 18x9 wheels (4 3/4” BS) - Cutting required
Tire Size: 38/13.5R20 with 20x9 wheels (5” BS) - Minor trimming required
Tire Size: 38/15.5R20 with 20x9 wheels (5” BS) - Cutting required
Tire Size: 40/15.5R20 with 20x9 wheels (5” BS) - Cutting required

Upgrade your vehicle's suspension system with the Fabtech 8” 4 Link System and experience the perfect blend of performance, durability, and ease of installation.
