Fabtech 17-20 Ford F250/350 4WD Diesel 6in Radius Arm System w/Perf. Shocks

Fabtech | SKU: K2218

MPN: K2218

$2,297.95 USD

Free Shipping

Care information

Check with Manufacturers Guides

Delivery and Shipping

At our website, we pride ourselves on swift delivery and shipping. Our standard processing time is by 12 PM Pacific Standard Time, ensuring most orders ship out on the same day when processed before noon. Plus, enjoy the added benefit of free ground shipping on all orders. For those who need their items even faster, we offer expedited shipping options, and you can also opt for convenient in-store pickup.

Fabtech 17-20 Ford F250/350 4WD Diesel 6in Radius Arm System w/Perf. Shocks

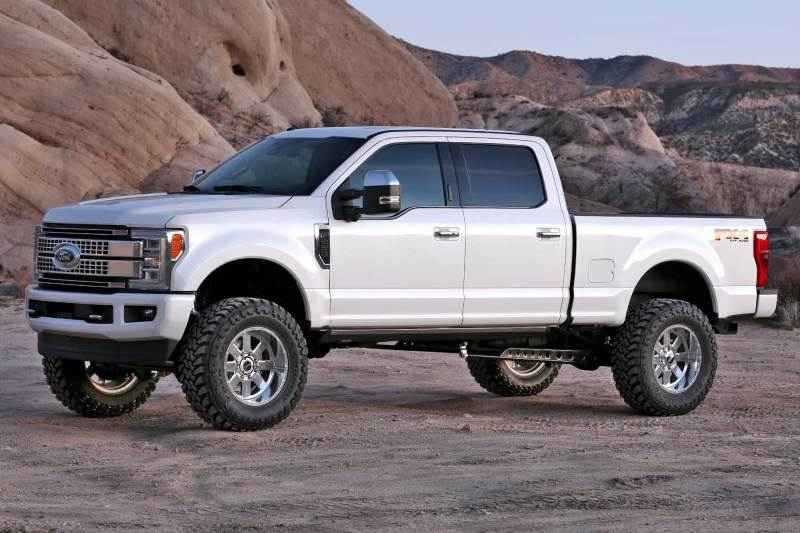

Enhance your Super Duty's performance with the ultimate suspension upgrade! The Fabtech 6in Radius Arm System is meticulously designed for 2017-2020 Ford F250/F350 4WD Diesel vehicles, ensuring an unparalleled driving experience.

Key Features:

Superior Articulation & Wheel Travel: Experience exceptional off-road capabilities with this bolt-on 4 Link System.
Heavy Duty Construction: Features 2-inch diameter heavy wall links and race style 1 Uniballs for maximum strength and durability.
Easy Installation: Thick 1/4 steel brackets allow for secure attachment to the frame without the need for cutting or welding.

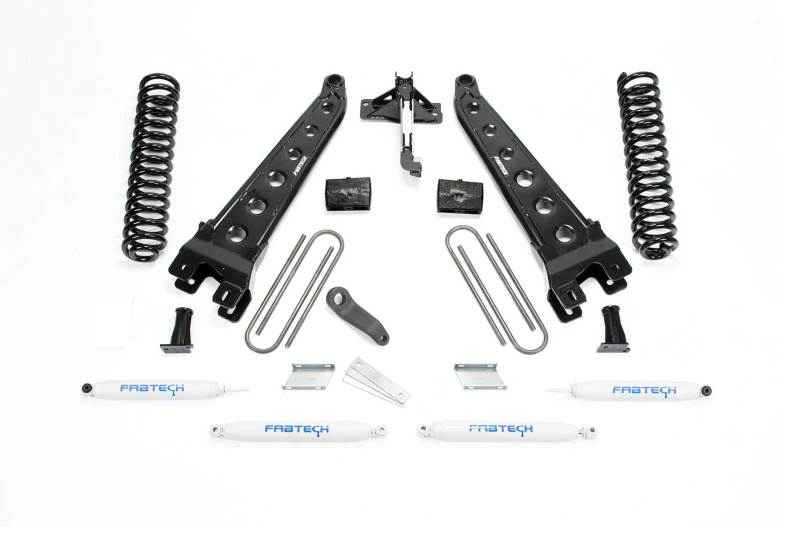

Comprehensive Kit: Includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit for all-around performance.

Tire and Wheel Compatibility:

Tire Size: 37/12.50R17 with 17x9 wheel (4 3/4" BS) – Minor trimming may be required.
Tire Size: 37/12.50R18 with 18x9 wheel (4 3/4" BS) – Minor trimming may be required.
Tire Size: 37/13.50R20 with 20x9 wheel (5" BS) – Minor trimming may be required.

Important Notes:

This system is not compatible with gas models or dually configurations.
Vehicles with a 2-piece driveshaft will require part FTS419.
Some 2017 models may need a dual steering stabilizer for oversized tires; consider options like DIRT LOGIC-FTS220512 or STEALTH-FTS8046.
For vehicles with a factory rear sway bar, an extended sway bar link kit (part number FTS22276) must be ordered.

Transform your Ford F250/F350 into a powerhouse of performance and reliability with the Fabtech 6in Radius Arm System. Get ready to tackle any terrain with confidence!
