Fabtech 17-20 Ford F250/350 4WD Diesel 6in 4 Link System w/Stealth Shocks

Fabtech 17-20 Ford F250/350 4WD Diesel 6in 4 Link System w/Stealth Shocks

Elevate your off-road experience with the Fabtech 4 Link System designed specifically for the 2017-2020 Ford F250 and F350 4WD Diesel. Engineered for superior suspension performance, this system delivers unmatched articulation and wheel travel, making it perfect for tackling rough terrains.

Key Features:

• Heavy-Duty Construction: The 2'' diameter heavy wall links feature race style 1'' Uniballs for exceptional strength and durability.
• Easy Installation: This bolt-on system includes thick 1/4'' steel brackets that securely attach to the frame without the need for cutting or welding.

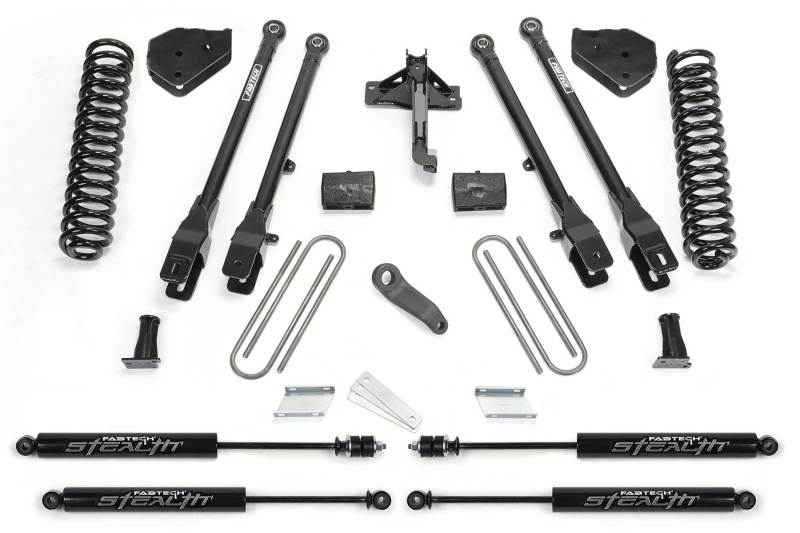

• Enhanced Handling: Comes complete with Sway bar drops, Trac Bar relocation bracket, Pitman Arm, and a rear Block & U-Bolt kit for optimal handling.
• Coil Spring Compatibility: Designed to allow the use of replacement Coil Springs for enhanced ride quality.
• Included Stealth Shocks: The kit features front and rear Stealth Shocks that improve overall performance and comfort on the road and off.

Specifications:

• Tire Size Compatibility:
  • 37/12.50R17 on 17X9 with 4 3/4" BS (minor trimming required)
  • 37/12.50R18 on 18X9 with 4 3/4" BS (minor trimming required)
  • 37/13.50R20 on 20X9 with 5" BS (minor trimming required)
• Compatibility: Non-dually models only; not suitable for gas motors.
• Additional Notes: Vehicles equipped with two-piece driveshaft require FTS419. Some 2017 models may need a dual steering stabilizer for oversized tires. Order DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162, or STEALTH-FTS8046. Vehicles with factory rear sway bar must order extended sway bar link kit part number FTS22276.

Upgrade your Ford Super Duty with the Fabtech 4 Link System for enhanced performance and unrivaled off-road capability. Don’t settle for less—experience the difference!
