Fabtech 17-20 Ford F250/350 4WD Diesel 4in Radius Arm System w/Stealth Shocks

Fabtech 17-20 Ford F250/350 4WD Diesel 4in Radius Arm System w/Stealth Shocks

Elevate your Super Duty's performance and handling with the Fabtech 4in Radius Arm System designed specifically for the 2017-2020 Ford F250 and F350 4WD Diesel. This exceptional suspension upgrade offers unmatched articulation and wheel travel, ensuring a smoother and more controlled ride on any terrain.

Key Features:

• Heavy-Duty Construction: The system features 2-inch diameter heavy wall links with race-style 1 Uniballs, providing superior strength and durability.
• Easy Installation: This bolt-on 4 Link System includes thick 1/4 steel brackets that securely attach to the frame without the need for cutting or welding.

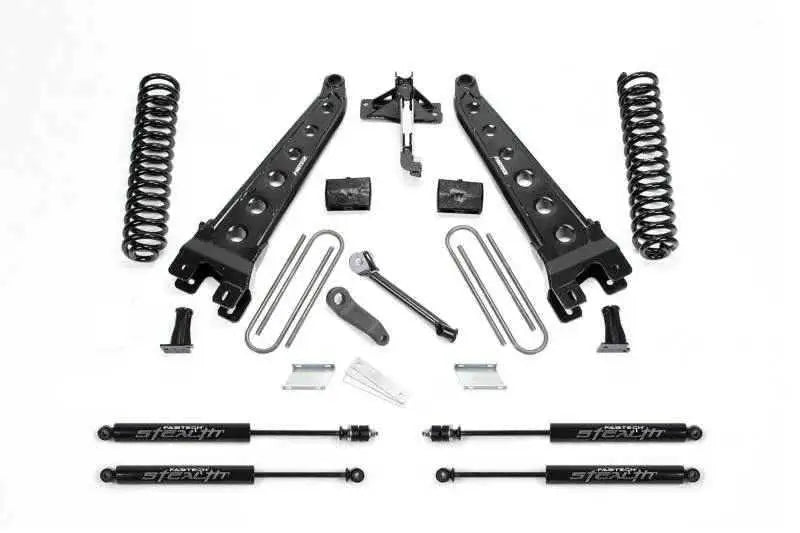

• Comprehensive Kit: The package includes Sway Bar Drops, a Trac Bar relocation bracket, a Pitman Arm, and a U-Bolt kit, making it a complete solution for enhancing your suspension.
• Compatibility: Designed for non-dually models only, it accommodates various tire and wheel sizes with minor trimming.

Optimal Tire and Wheel Fitment:

• Tire Size - 35/12.50R17 with a Wheel - 17x9 and 4 3/4" Backspacing
• Tire Size - 35/12.50R18 with a Wheel - 18x9.5 and 4 3/4" Backspacing
• Tire Size - 35/12.50R20 with a Wheel - 20x9 and 5" Backspacing

Important Notes:

• This system is not compatible with gas models.
• Some 2017 models may require a dual steering stabilizer for oversized tires. Recommended options include DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162, or STEALTH-FTS8046.

Take your Ford Super Duty to the next level with the Fabtech 4in Radius Arm System w/Stealth Shocks and experience exceptional performance on and off the road!
