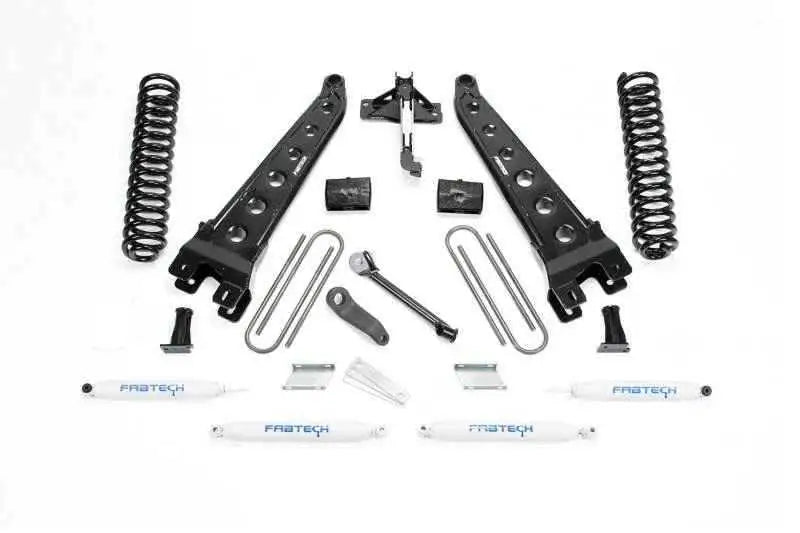

Fabtech 17-20 Ford F250/350 4WD Diesel 4in Radius Arm System w/Perf. Shocks

Fabtech 17-20 Ford F250/350 4WD Diesel 4in Radius Arm System w/Perf. Shocks

Enhance your vehicle's performance and stability with the Fabtech 4in Radius Arm System designed specifically for the 2017-2020 Ford F250 and F350 4WD Diesel models. This exceptional suspension upgrade offers a range of features aimed at providing the ultimate driving experience.

Key Features:

• Superior Articulation: The bolt-on 4 Link System ensures unmatched articulation and wheel travel for a smoother ride on any terrain.
• Heavy-Duty Construction: Constructed with 2-inch diameter heavy wall links featuring race-style 1 Uniballs, this system provides exceptional strength and durability.
• Secure Installation: Thick 1/4 inch steel brackets tightly secure the 4 Links to the frame, eliminating the need for cutting or welding.
• Comprehensive Kit: The system includes essential components such as Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit for a complete installation.

Compatibility:

This suspension system is compatible with:

• Tire Sizes:
  • 35/12.50R17 with 17X9 wheel (4 3/4" BS with minor trimming)
  • 35/12.50R18 with 18X9.5 wheel (4 3/4" BS with minor trimming)
  • 35/12.50R20 with 20X9 wheel (5" BS with minor trimming)
• Non-dually models only (will not fit gas motors).

Additional Notes:

For some 2017 models, you may require a dual steering stabilizer for oversized tires. Recommended options include:

• Dirt Logic-FTS220512
• Dirt Logic w/Resi-FTS221162
• Stealth-FTS8046

Upgrade your Ford Super Duty with the Fabtech 4in Radius Arm System for enhanced performance and stability on and off the road!
