Fabtech 17-20 Ford F250/350 4WD Diesel 4in Basic System w/DL Shocks

Upgrade your Ford F250 or F350 with the Fabtech 4in Basic Drop Bracket System, specially designed for 4WD Diesel models from 2017 to 2020. This system is the perfect choice for budget-conscious enthusiasts who want to enhance their vehicle's performance without breaking the bank.

Key Features:

Budget-Friendly Design: A cost-effective alternative to more complex suspension systems, allowing you to achieve a lift without overspending.
Utilizes Stock Radius Arm: Maintains compatibility with your vehicle's original components for a seamless installation experience.

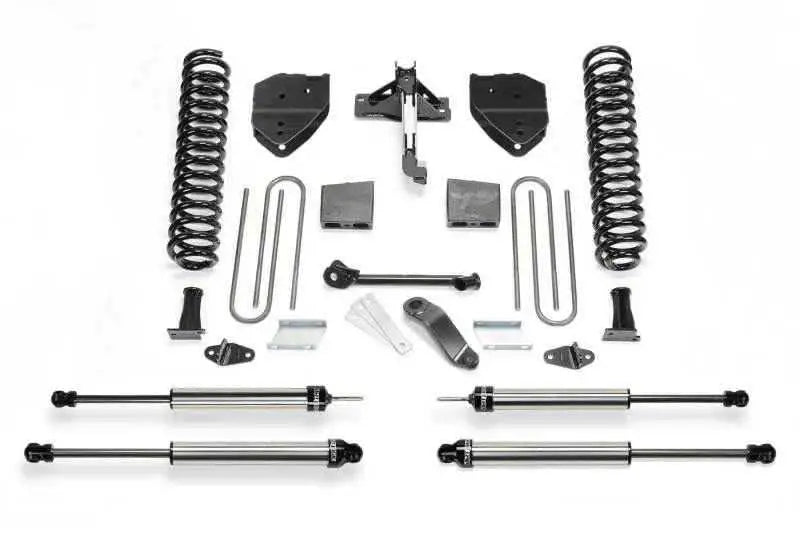

Complete Kit: Includes everything you need: Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, rear blocks, and U-bolt kit.
Dirt Logic Shocks: Comes complete with front and rear Dirt Logic Shocks for improved ride quality and handling.

Tire and Wheel Compatibility:

This system is designed to accommodate various tire and wheel sizes:

Tire Size: 35/12.50R17 - Wheel: 17X9 with 4 3/4" backspace (minor trimming may be required)
Tire Size: 35/12.50R18 - Wheel: 18X9.5 with 4 3/4" backspace (minor trimming may be required)
Tire Size: 35/12.50R20 - Wheel: 20X9 with 5" backspace (minor trimming may be required)

Important Notes:

Compatible with non-dually models only.
Will not fit gas motors.
Some 2017 models may require a dual steering stabilizer for oversized tires. Recommended options include Dirt Logic-FTS220512, Dirt Logic w/Resi-FTS221162, or Stealth-FTS8046.

Transform your Ford F250/F350 with the Fabtech 4in Basic System w/DL Shocks and experience improved performance, stability, and style on and off the road!
