Fabtech 17-20 Ford F250/350 4WD 4in Budget System w/Stealth Shocks

Fabtech 17-20 Ford F250/350 4WD 4in Budget System w/Stealth Shocks

Elevate your Super Duty experience with the Fabtech 4'' Budget System designed specifically for 2017-2020 Ford F250 and F350 4WD models. This system is the perfect entry-level upgrade that combines quality, performance, and affordability.

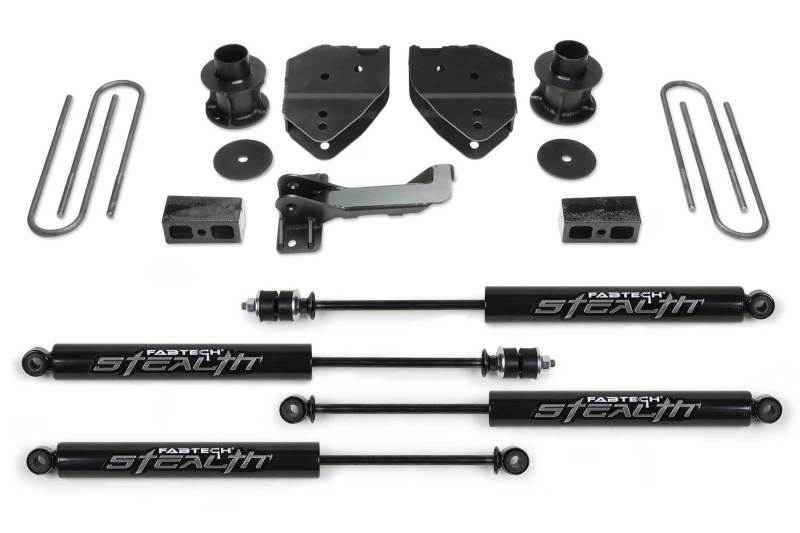

Key Features:

• 4-Inch Lift: Utilizes factory front coil springs paired with a robust steel upper spacer to provide an impressive 4 inches of lift for enhanced ground clearance.
• Radius Arm Drop Brackets: Retain factory arms while ensuring correct caster settings for improved ride quality at elevated heights.
• Trac Bar Relocation Bracket: Centers the axle under the vehicle without the need to replace the factory Pitman Arm, reducing installation time and costs.
• Rear Lift Solution: Achieved using lift blocks and extended length u-bolts for a complete suspension upgrade.
• Stealth Shocks: Included premium front and rear Stealth shocks that provide superior damping and performance on varied terrains.

Enhanced Tire Clearance:

This system allows for the installation of 35-inch tall tires, ideal for both street driving and light off-road adventures. Please note that minor trimming of the inner fenderwell may be necessary for optimal clearance.

Compatible Tire and Wheel Sizes:

• Tire Size: 35/12.50R17 with 17x9 wheels (4 3/4" BS) - Minor trimming required.
• Tire Size: 35/12.50R18 with 18x9.5 wheels (4 3/4" BS) - Minor trimming required.
• Tire Size: 35/12.50R20 with 20x9 wheels (5" BS) - Minor trimming required.

Important Notes:

• Designed for non-dually models only.
• Some 2017 models may necessitate a dual steering stabilizer for oversized tires (order DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162, or STEALTH-FTS8046).

Transform your Ford F250 or F350 with the Fabtech 4in Budget System and experience the perfect blend of performance, style, and affordability!
