Fabtech 17-19 Ford F250/350 4WD Gas 6in Radius Arm System w/Stealth Shocks

Fabtech | SKU: K2256M

MPN: K2256M

$2,465.11 USD

Free Shipping

Care information

Check with Manufacturers Guides

Delivery and Shipping

At our website, we pride ourselves on swift delivery and shipping. Our standard processing time is by 12 PM Pacific Standard Time, ensuring most orders ship out on the same day when processed before noon. Plus, enjoy the added benefit of free ground shipping on all orders. For those who need their items even faster, we offer expedited shipping options, and you can also opt for convenient in-store pickup.

Fabtech 17-19 Ford F250/350 4WD Gas 6in Radius Arm System w/Stealth Shocks

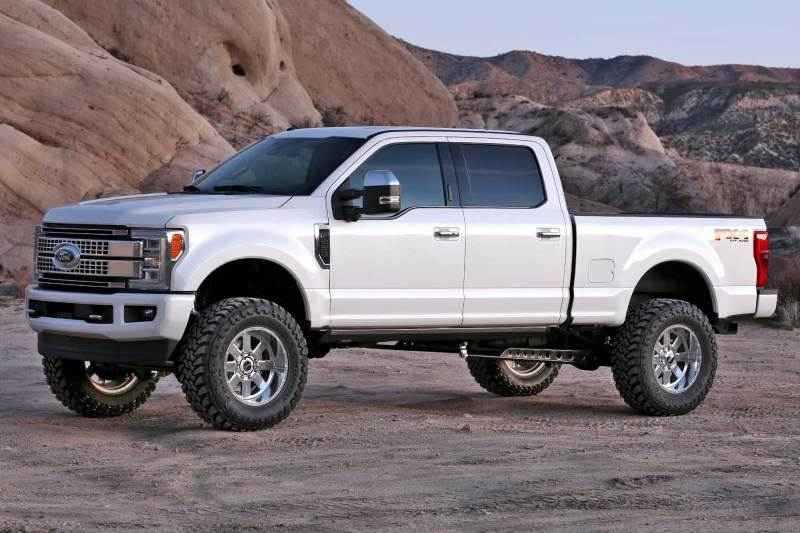

Elevate your Ford F250 or F350 4WD Gas truck with the exceptional Fabtech 6-inch Radius Arm System, designed specifically for model years 2017 to 2019. This advanced suspension system combines high-end engineering with robust performance to enhance your vehicle's off-road capabilities.

Key Features:

Patented Radius Arms: Full tubular structure reinforced with dimple die side plates for unparalleled strength and durability.
Adjustable Alignment Cam: Allows for precise caster adjustments at the axle, ensuring optimal handling and ride quality.
Lift Options: Includes 6" replacement coil springs to provide the right lift for your ride.

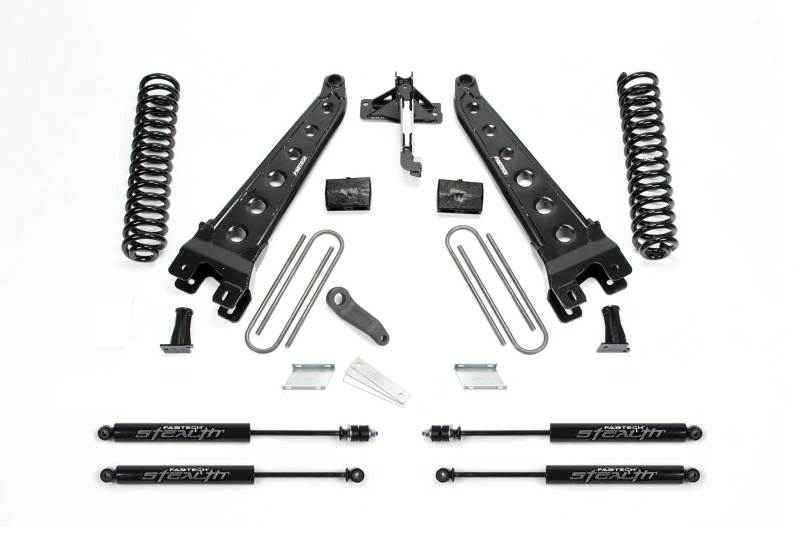

Comprehensive Kit: Comes complete with a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear block & U-bolt kit.
Stealth Shocks: Enhanced shock absorbers included for superior responsiveness and comfort on all terrains.
Powertrain Warranty: Qualifies for a 5/60 Powertrain Warranty, giving you peace of mind with your investment.

Tire and Wheel Compatibility:

Tire Size - 37/12.50R17 with 17x9 Wheels (4 3/4" Backspacing) - Minor trimming required.
Tire Size - 37/12.50R18 with 18x9 Wheels (4 3/4" Backspacing) - Minor trimming required.
Tire Size - 37/13.50R20 with 20x9 Wheels (5" Backspacing) - Minor trimming required.

Important Notes:

Designed for non-dually models only.
Vehicles equipped with a 2-piece driveshaft require FTS419.
Not compatible with diesel models.
Front driveshaft modification may be necessary, or order driveshaft (FTS92036).
Vehicles with factory rear sway bar must order extended sway bar link kit (part number FTS22276).

Transform your ride with the Fabtech 6in Radius Arm System and experience the perfect blend of style, performance, and durability that your Ford deserves.
