Fabtech 08-16 Ford F250/350 4WD 8in Radius Arm System w/DL Shocks

Fabtech 08-16 Ford F250/350 4WD 8in Radius Arm System w/DL Shocks

Enhance your off-road capabilities with the Fabtech 8-inch Radius Arm System designed specifically for 2008-2016 Ford F250 and F350 4WD trucks. This comprehensive system not only boosts your vehicle's ride height but also optimizes handling and stability, ensuring a smoother and more controlled driving experience.

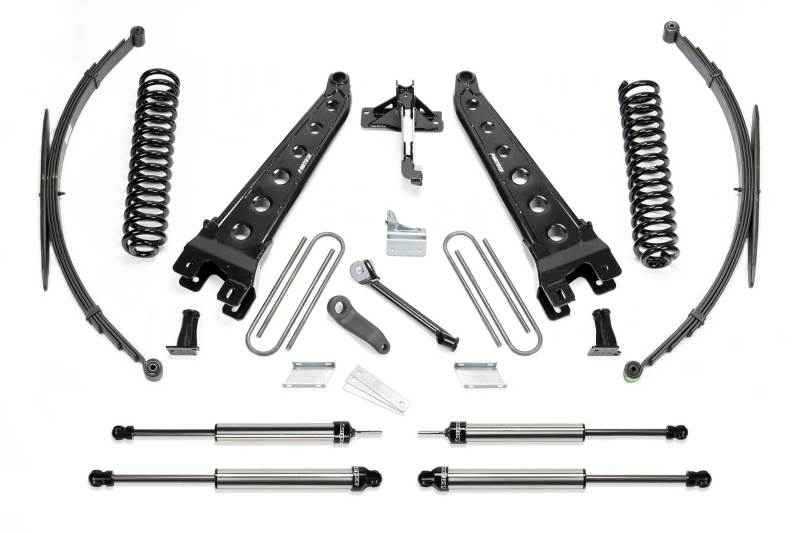

Key Features:

• Patented Radius Arms: Constructed from a full tubular structure reinforced with dimple die side plates for maximum strength and durability.
• Adjustable Alignment Cam: Allows for precise caster adjustment at the axle, ensuring optimal steering performance.
• 8'' Replacement Coil Springs: Provides increased front spring lift, enhancing ground clearance for tackling rough terrains.
• Complete Installation Kit: Includes a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and U-bolt kit for a hassle-free installation process.
• Enhanced Rear Suspension: Comes with replacement rear Leaf Springs to complement the increased ride height.
• Dirt Logic Shocks: Equipped with front and rear 2.25-inch stainless steel Dirt Logic shocks for superior shock absorption and improved ride quality.

Compatibility:

This system is designed for non-dually models only, accommodating tire sizes such as:

• 37/13.50R20 on 20x10 wheels with 4.5" backspacing (minor trimming may be required).
• 355/65R18 on 18x9.5 wheels with 4.75" backspacing (minor trimming may be required).

Important Notes:

• Front drive shaft modification may be required for gas motor vehicles to clear the exhaust.
• Rear springs may reduce load carrying capacity, so plan accordingly for heavy hauling needs.

Elevate your Ford F250/F350 to new heights of performance and style with the Fabtech 8-inch Radius Arm System. Experience the difference in handling and comfort as you navigate through challenging terrains with confidence.
