Fabtech 07-18 Jeep JK 4WD 4-Door 5in Crawler System w/DL 2.5 Resi Coilovers & Rear DL 2.25 Shocks

Fabtech 07-18 Jeep JK 4WD 4-Door 5in Crawler System w/DL 2.5 Resi Coilovers & Rear DL 2.25 Shocks

Vendor: Fabtech

Type: Coilovers

SKU: K4079DL

Regular price $6,588.74
Sale price $6,588.74 Regular price
Shipping calculated at checkout.

Out of stock

Fabtech 07-18 Jeep JK 4WD 4-Door 5in Crawler System w/DL 2.5 Resi Coilovers & Rear DL 2.25 Shocks

Elevate your off-road experience with the Fabtech 5-inch Crawler System, specifically designed for the 2007-2018 Jeep JK 4WD 4-Door. This heavy-duty system not only enhances your vehicle's ruggedness but also ensures exceptional on-road handling.

Key Features:

  • Extended Link Arms: Replaces all eight link arms with extended units tailored for aggressive off-road use.
  • Superior Ground Clearance: High mounting on the frame maximizes ground clearance, enabling you to tackle tough terrains with ease.
  • Fabtech 5 Ton Joints: Large link arms equipped with durable joints provide reliability and a quiet ride backed by a lifetime warranty.
  • Track Bar Relocation: Heavy-duty 1/4'' thick steel Track Bar brackets ensure proper roll center for front and rear, preventing failures that could leave you stranded.
  • Dirt Logic Coilovers: Front Dirt Logic 2.5 Coilovers deliver outstanding high-speed damping while enabling low-speed crawling with maximum articulation.
  • Dual Rate Coil Springs: Offers factory load capacity with a smooth ride, perfect for both aggressive rock crawling and highway driving.

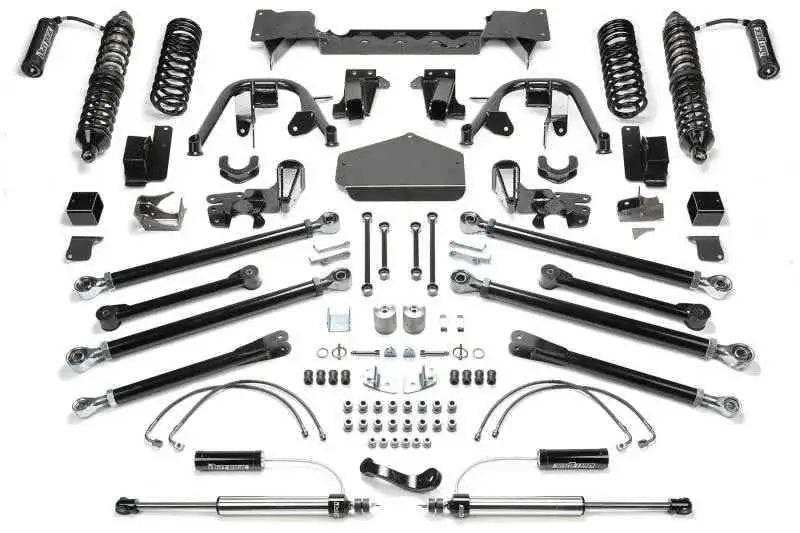

Comprehensive Kit Includes:

  • 8 Long Arm Links & Mounts
  • Coilover Hoop Kit Front
  • Long Travel Rear Coil Springs
  • Track Bar Brackets (Front & Rear)
  • Sway Bar Links (Front & Rear)
  • Pitman Arm
  • Brake Lines (Front & Rear)
  • E Brake Bracket
  • Rear Bump Stop Brackets
  • Front Dirt Logic 2.5 Coilovers with Reservoirs
  • Rear Dirt Logic 2.25 Shocks with Reservoirs

Specifications:

  • Lifting Capacity: 5 inches
  • Compatible Tire Sizes:
    • 37/12.50R17 with 17X9 Wheel (4 1/2" BS)
    • 37/12.50R18 with 18X9 Wheel (4 1/2" BS)
    • 37/12.50R20 with 20X9 Wheel (5" BS)
    • 40/13.50R17 with 17X9 Wheel (4 1/2" BS)
  • Installation Requirements: Welding required; exhaust modification on all 2012-2018 Jeep Wranglers.
  • Driveshaft Requirements: Specific driveshafts needed for 4-door models; options vary by model year.

Unleash the full potential of your Jeep with the Fabtech Crawler System, designed for adventure seekers who demand both performance and reliability on and off the road.
