Fabtech 07-18 Jeep JK 4WD 4-Door 3in Crawler System w/DL 2.5 Resi Coilovers & Rear DL 2.25 Shocks
Fabtech 07-18 Jeep JK 4WD 4-Door 3in Crawler System w/DL 2.5 Resi Coilovers & Rear DL 2.25 Shocks
Out of stock
Fabtech 07-18 Jeep JK 4WD 4-Door 3in Crawler System w/DL 2.5 Resi Coilovers & Rear DL 2.25 Shocks
Transform your Jeep JK into an off-road powerhouse with the Fabtech 3in Crawler System. Designed for 4WD 4-Door models from 2007 to 2018, this heavy-duty coilover system is engineered to enhance both your off-road capabilities and on-road performance.
Key Features:
- Extended Length Link Arms: Replaces all eight link arms to provide aggressive off-road capabilities while maintaining superior handling on the road.
- High Ground Clearance: Links are mounted high on the frame for maximum clearance, allowing you to navigate tough terrain with ease.
- Durable Components: Equipped with Fabtech 5 Ton Joints that ensure reliability and a quiet ride, backed by a lifetime warranty.
- Heavy-Duty Track Bar Brackets: 1/4'' thick steel brackets that weld on for a secure and strong relocation of the track bars, enhancing roll center both front and rear.
- Outstanding Damping Performance: The bolt-on front Dirt Logic 2.5 Coilover conversion offers exceptional high-speed damping while allowing for low-speed crawling with maximum articulation.
- Optimized Coilover Mounting: Coilovers are mounted on the axle's centerline to prevent premature bushing wear, ensuring superior handling.
- Dual Rate Coil Springs: Provides factory load capacity with a smooth, comfortable ride, perfect for both highway driving and aggressive rock crawling.

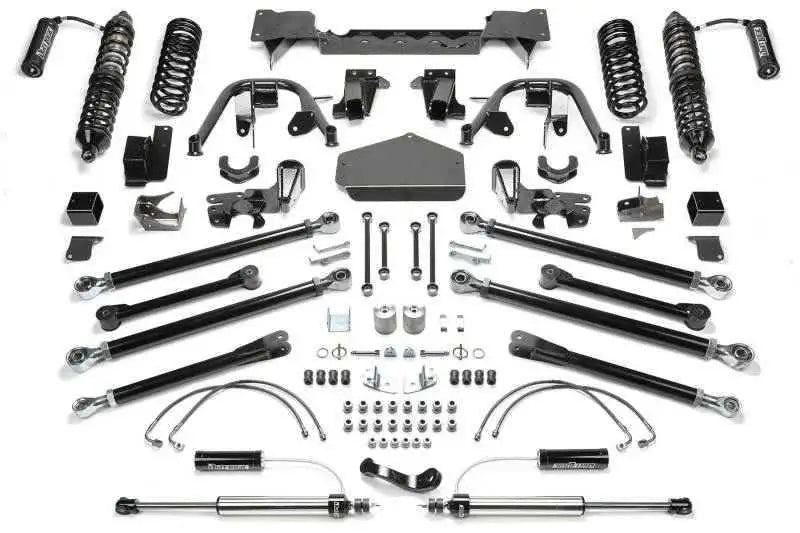

Included Components:
- 8 Long Arm Links & Mounts
- Coilover Hoop Kit Front
- Long Travel Rear Coil Springs
- Track Bar Brackets Front & Rear
- Sway Bar Links Front & Rear
- Pitman Arm
- Brake Lines Front & Rear
- E Brake Bracket
- Rear Bump Stop Brackets
- Front Dirt Logic 2.5 Coilovers w/ Reservoirs
- Rear Dirt Logic 2.25 Shocks w/ Reservoirs
Compatibility:
This system is compatible with tire sizes up to:
- 35/12.50R17 on 17x9 wheels with 4.5" backspacing with minor trimming
- 37/12.50R20 on 20x9 wheels with 5" backspacing with cutting
Installation Notes:
- Installation requires welding.
- Exhaust modification is required for all 2012-2018 Jeep Wranglers.
- Driveshafts required for 4-door models (specific parts listed in the product details).
Elevate your Jeep JK's performance and style with the Fabtech 3in Crawler System, engineered for the ultimate off-road experience without compromising on everyday drivability.
