Fabtech 05-14 Toyota Tacoma 2WD/4WD 6 Lug 3in UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks

Fabtech 05-14 Toyota Tacoma 2WD/4WD 6 Lug 3in UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks

Elevate your Toyota Tacoma's performance with the Fabtech 3in UCA System, expertly designed for both 2WD and 4WD models. This comprehensive suspension upgrade combines innovative engineering with robust materials, ensuring your ride is both smooth and capable of tackling any terrain.

Key Features:

• Super Strong Uniball Design: The arms eliminate the upper ball joint with a durable 1" ID Stainless American Uniball, enhancing strength and reliability.
• Precision Alignment: Additional caster built into the arms allows for superior alignability, perfect for overcoming common leveling kit alignment issues.
• Increased Wheel Travel: Optimized for use with Dirt Logic 2.5 Coilover shocks, allowing for greater wheel travel for those off-road adventures.
• Enhanced Road Feel: Constructed with Chromoly tubing, these arms reduce flex compared to stock options, providing a more positive driving experience.
• Easy Installation: The 17-4 Stainless Steel Heat treated Uniball pin fits seamlessly into the factory ball joint taper, enabling quick return to stock without modification.

Material Construction Specs:

• Built with the same high-performance materials found in Trophy Trucks:
• .120'' Wall 4130 Chromoly Tubing - 1.25'' OD for exceptional strength.
• .250'' Wall DOM Bushing Barrels for increased durability.
• 1'' ID Stainless Steel American Uniball for efficient motion transfer.
• Heat Treated 17-4 Stainless Steel Tapered Uniball Pins for maximum reliability.

Compatibility:

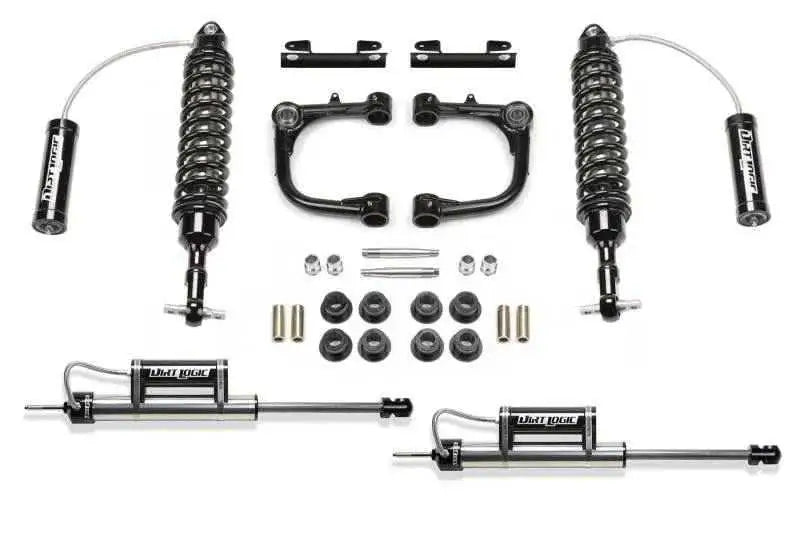

This lift system offers a 3-inch lift and includes:

• Uniball Upper Control Arms
• Front Dirt Logic SS 2.5 Resi Coilovers
• Rear Dirt Logic SS Resi Shocks

Tire and Wheel Specifications:

• TIRE SIZE - 33/12.50R17 with WHEEL - 17X8 W/4 5/8" BS (minor trimming required)
• TIRE SIZE - 275/60R20 with WHEEL - 20X9 W/5" BS (minor trimming required)
• TIRE SIZE - 275/70R18 with WHEEL - 18X9 W/4 3/4" BS (minor trimming required)

Upgrade your Tacoma's suspension with the Fabtech UCA System and experience unmatched performance and stability, whether on rugged trails or city streets.
