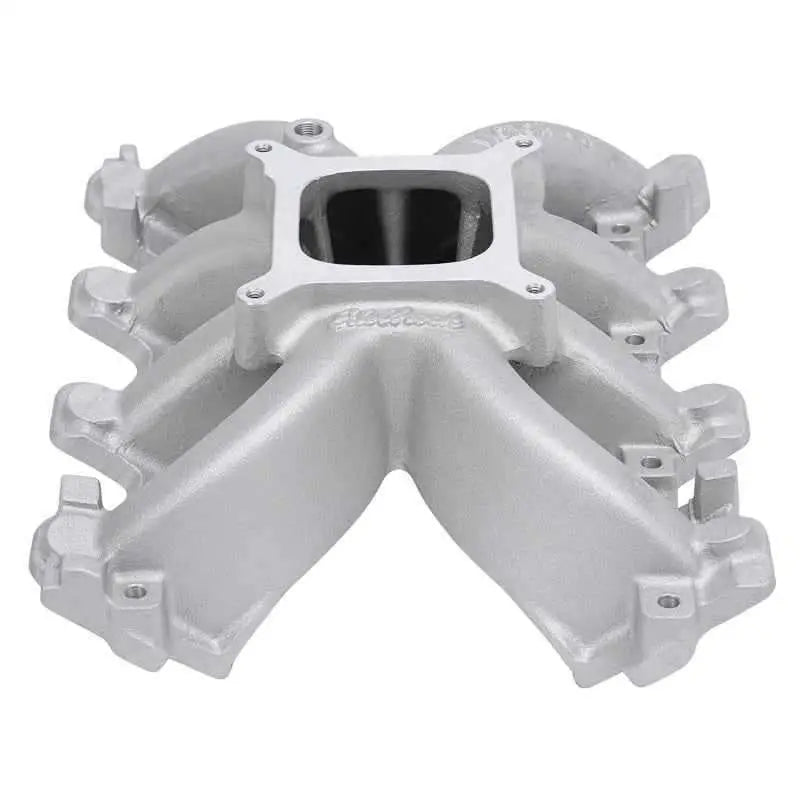

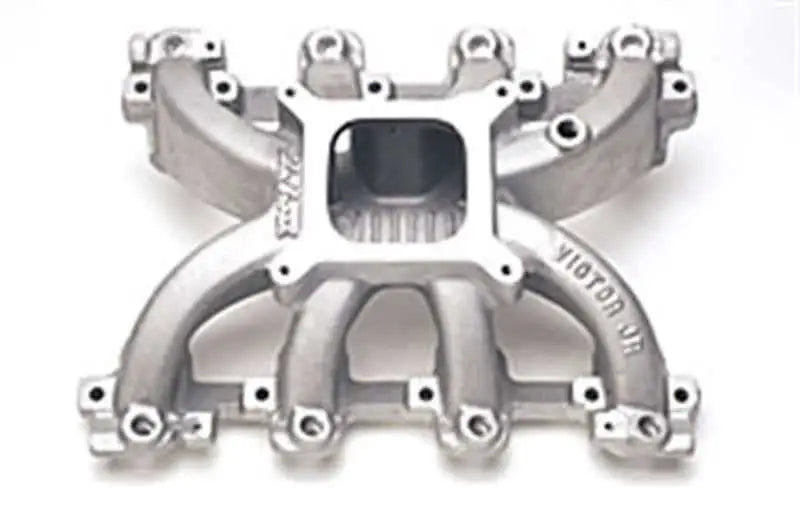

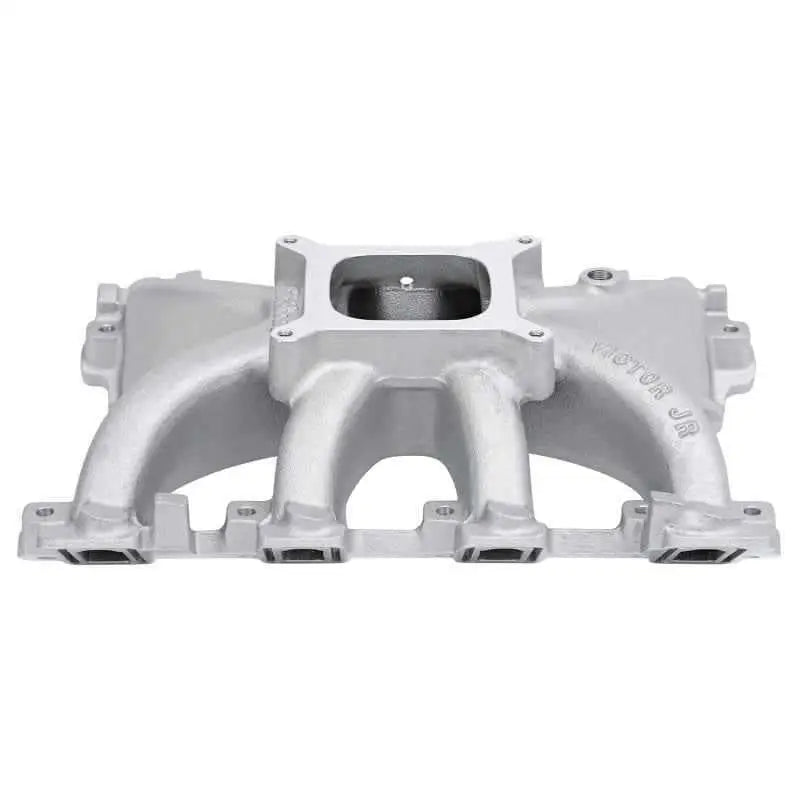

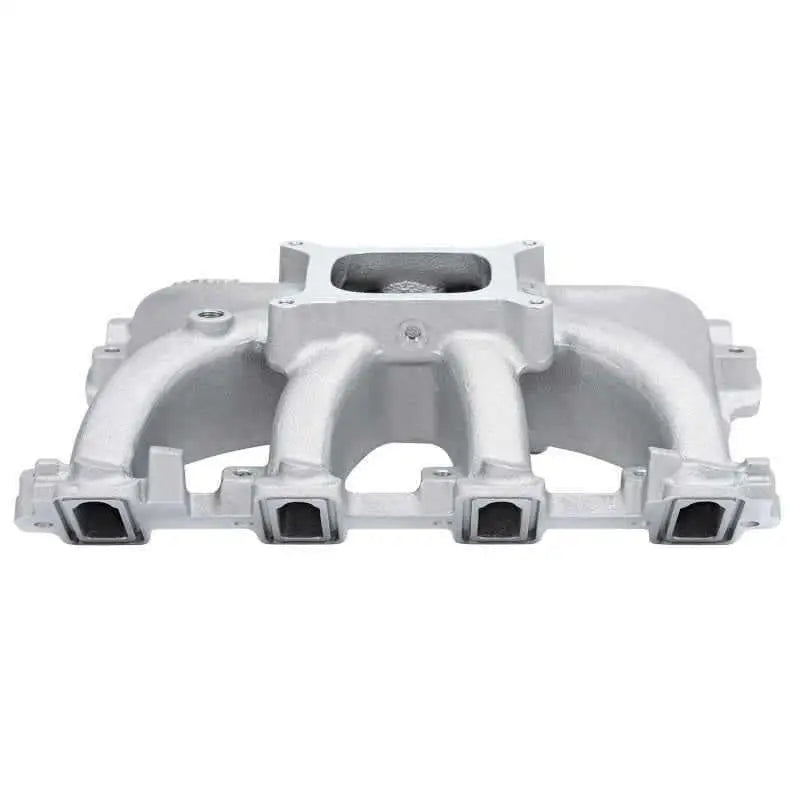

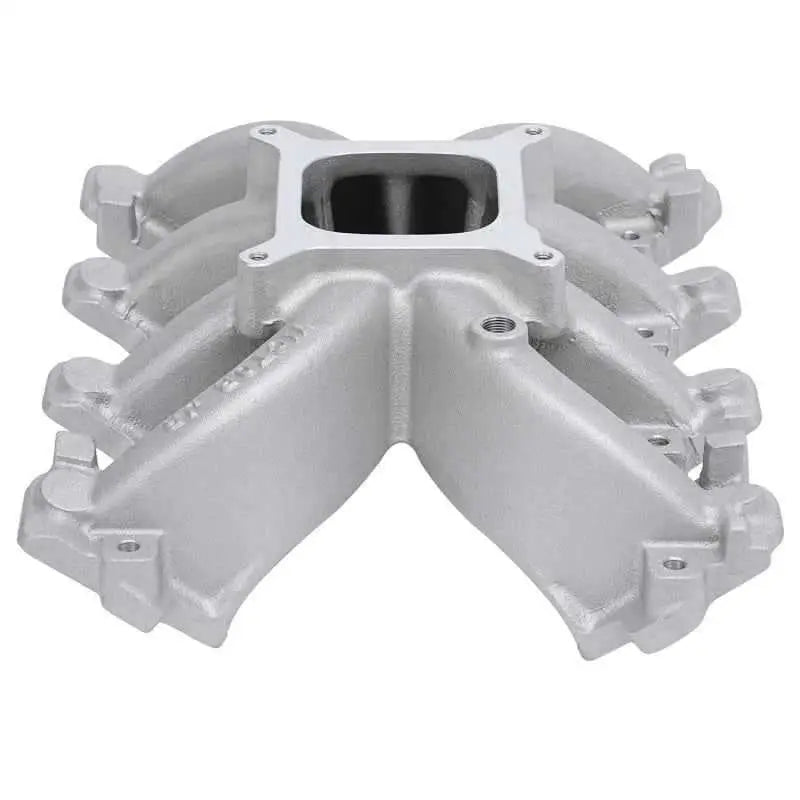

Edelbrock LS1 Carbureted Manifold Only

Unleash the full potential of your high-performance engine with the **Edelbrock LS1 Carbureted Manifold**. This high-rise single plane intake manifold is designed to support up to **600 horsepower**, making it an essential upgrade for serious enthusiasts and racers alike.

Key Features:

• High-Performance Design: Capable of handling up to 600 hp, perfect for street or racing applications.
• Electronic Timing Module: Includes a sophisticated module that integrates with MAP, crank, and cam position sensors to effectively drive the stock LS1 Coil-on-Plug ignition system.
• Customizable Timing Curves: Choose from 6 built-in timing curves tailored for various engine displacements, cam profiles, and fuel grades.
• Versatile Compatibility: The #29087 manifold can be utilized on LS2 applications when paired with MSD's #6012 LS2 ignition controller.

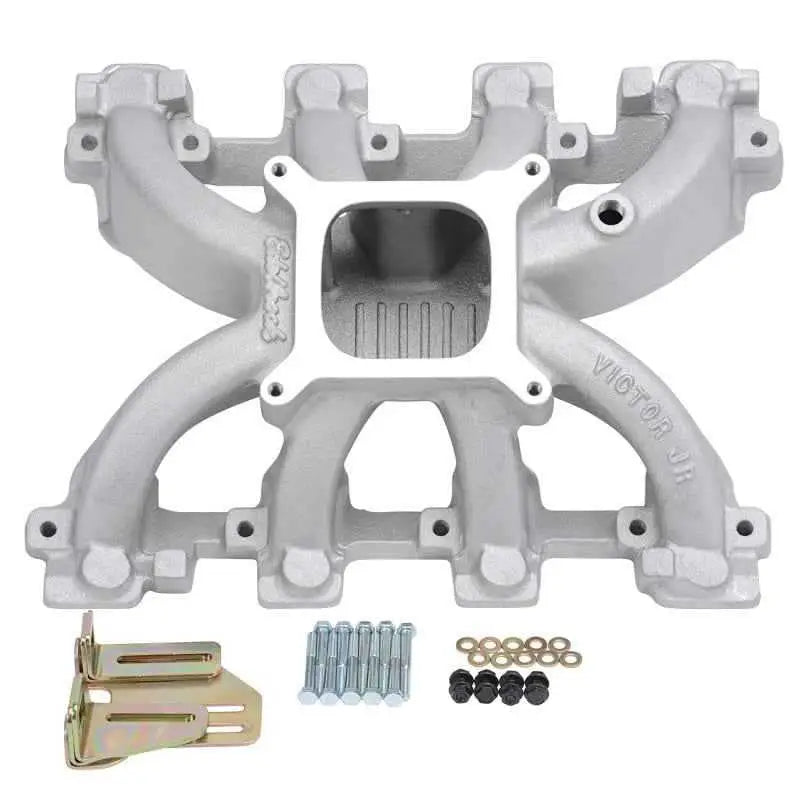

• Throttle Bracket Included: Designed to work seamlessly with 700R-4, 200R-4, and Turbo 350 transmissions.

Installation Notes:

Most applications will require hood modification for proper fitment. This manifold uses LS1/LS6 style individual port o-ring seals. Additionally, when using a TH350, TH400, or 700R4 transmission, it is recommended to utilize a crankshaft sleeve #HP3795 and flexplate #HP4004, available through Hughes Performance retailers or by contacting Hughes at 800-274-RACE.

Specifications:

• Manifold Height: A-4.95", B-4.95"
• Carb Pad Height: 4.95"

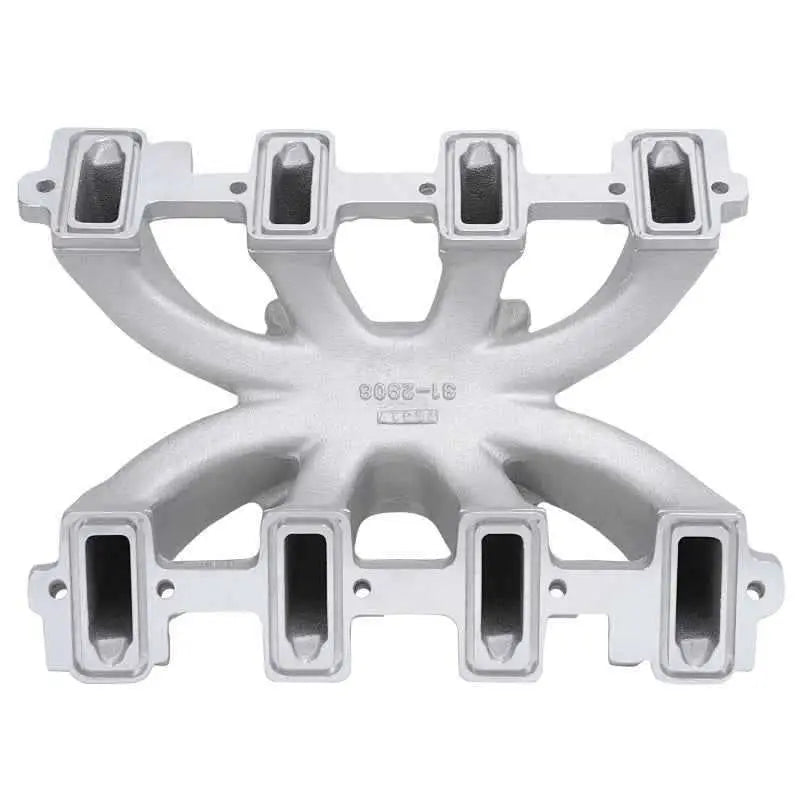

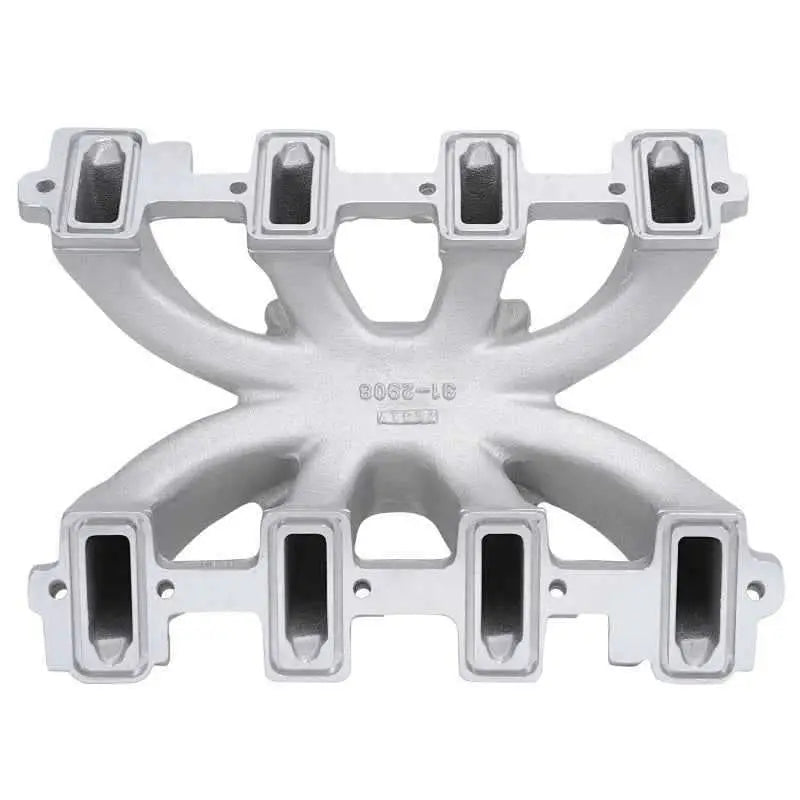

• Port Exit Dimensions: .98" x 2.74"

Elevate your driving experience and achieve unmatched power with the **Edelbrock LS1 Carbureted Manifold**. It's the ultimate choice for those seeking to maximize horsepower and torque.
