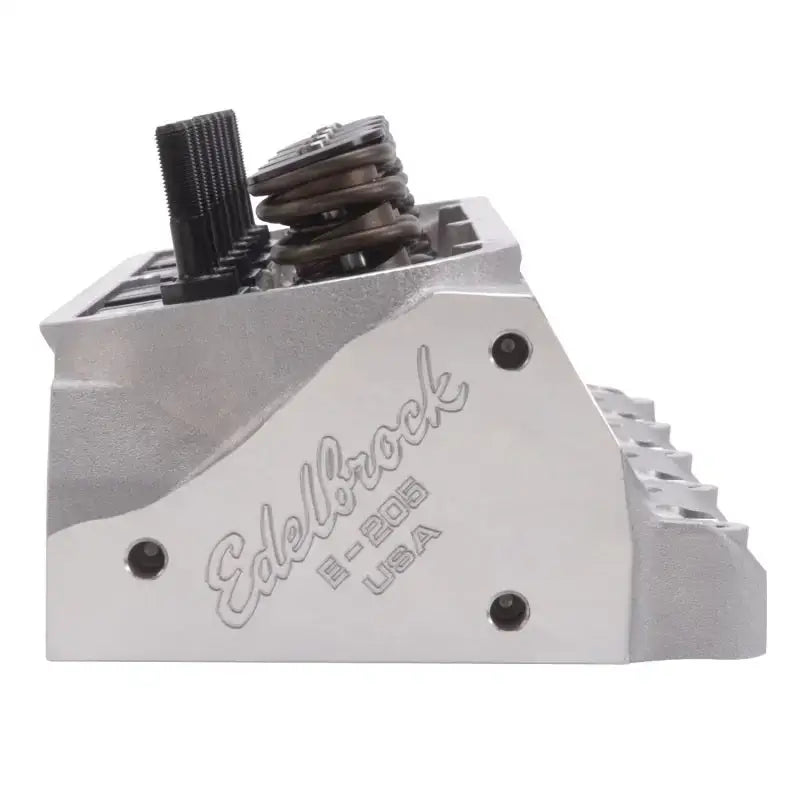

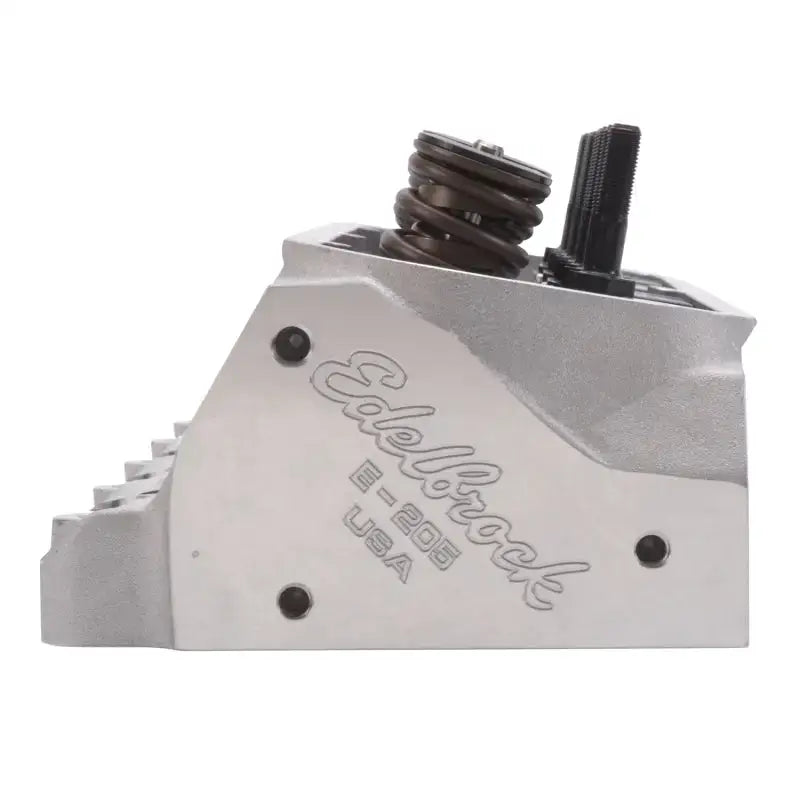

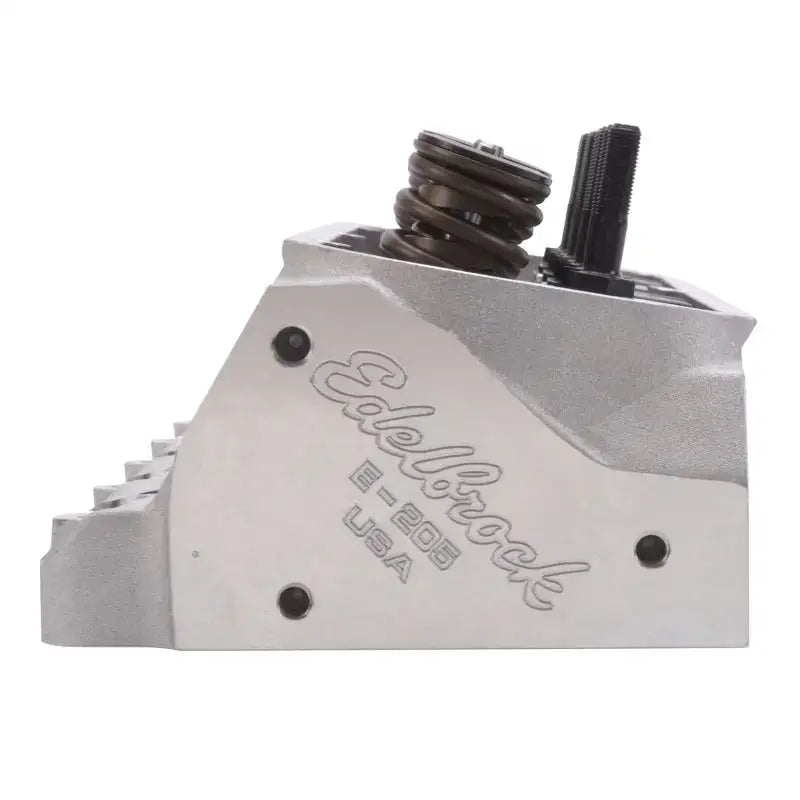

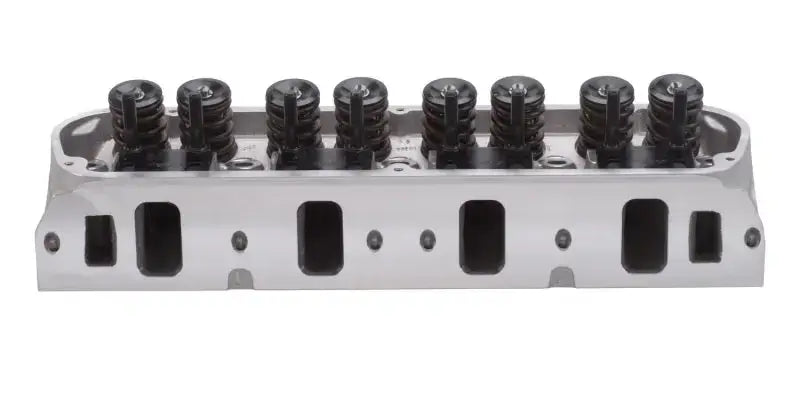

Edelbrock 1Pr SBF Cyl Head E-205 2 08 Intake Complete Assembled w/ Springs

Edelbrock 1Pr SBF Cyl Head E-205 2 08 Intake Complete Assembled w/ Springs

Elevate your engine's performance with the Edelbrock 1Pr SBF Cylinder Head E-205, designed specifically for Small Block Ford (SBF) engines. This complete assembly combines precision engineering with high-quality materials, ensuring you achieve maximum power and efficiency.

Key Features:

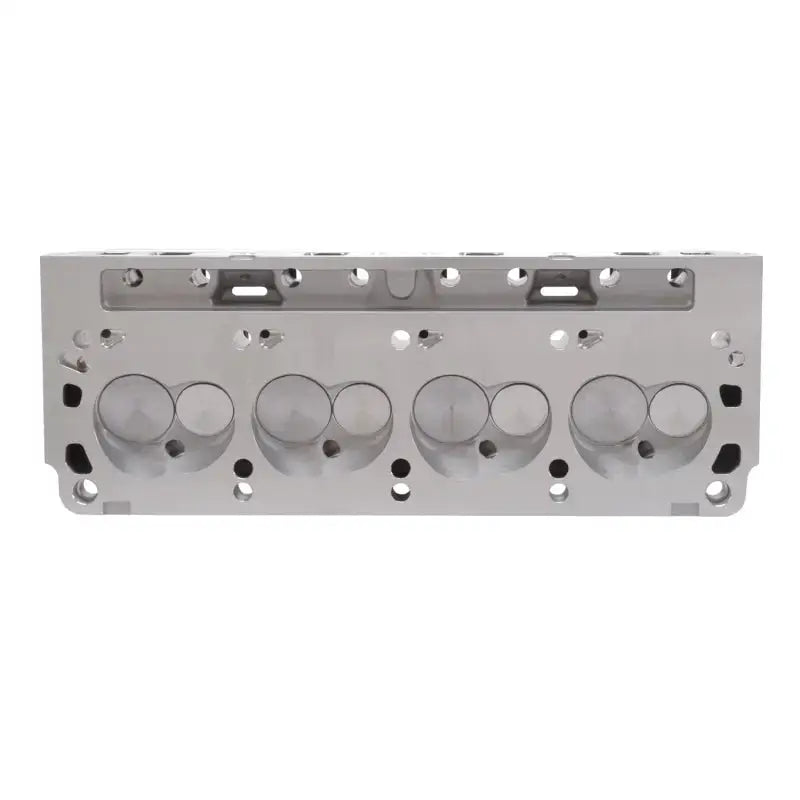

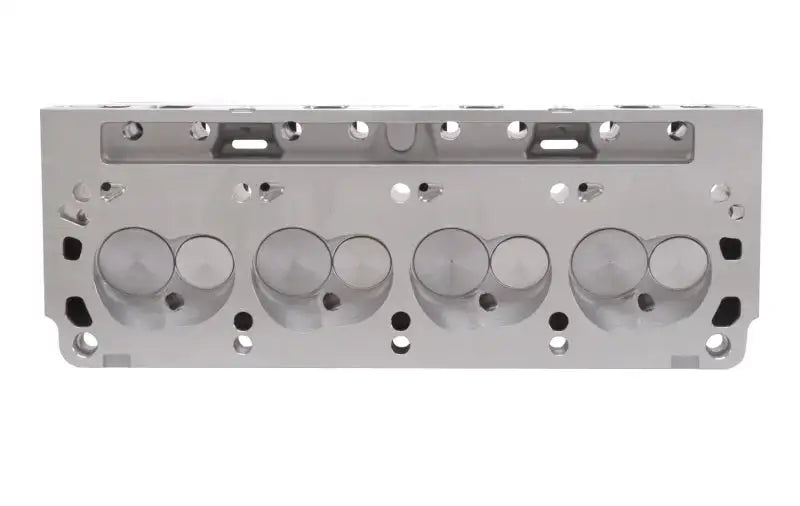

• Combustion Chamber Volume: 60cc for optimal compression

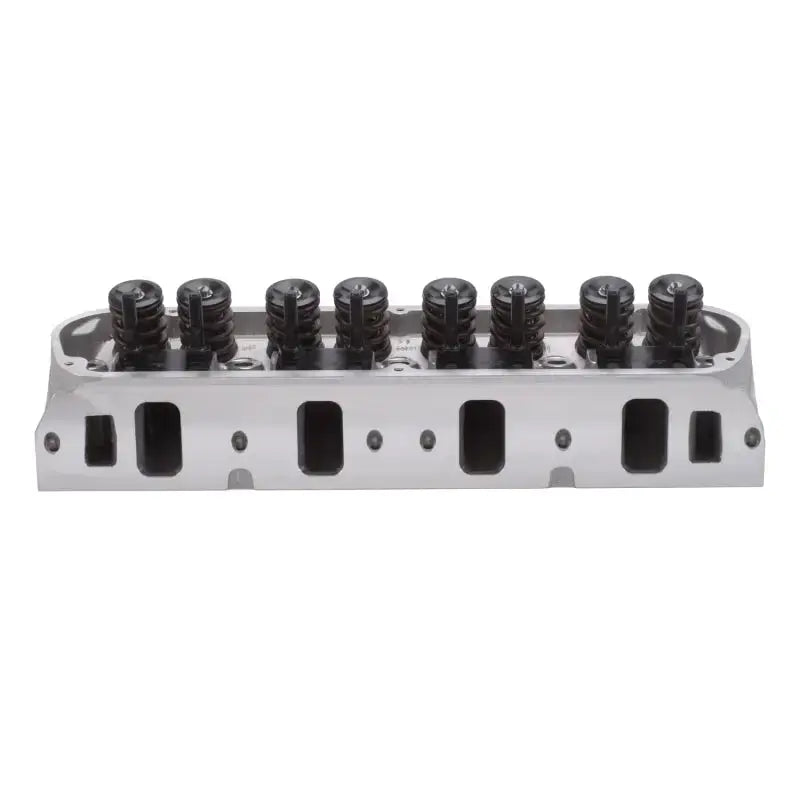

• Intake Runner Volume: 205cc for enhanced airflow

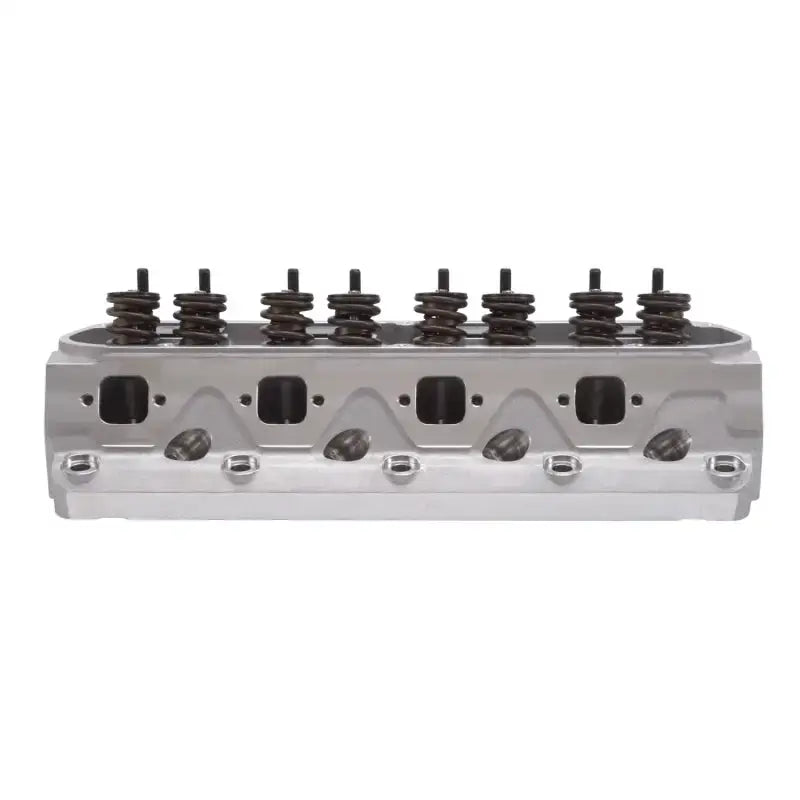

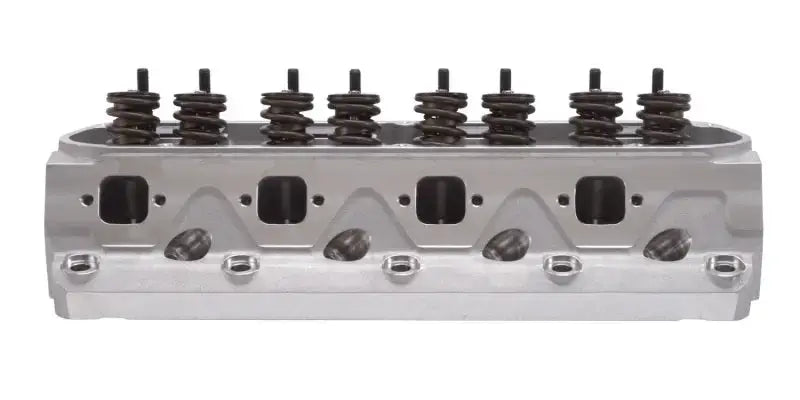

• Exhaust Runner Volume: 62cc improving exhaust efficiency
• Intake Valve Diameter: 2.08" for improved intake flow
• Exhaust Valve Diameter: 1.60" designed for better exhaust release
• Valve Spring Diameter: 1.46" with a maximum lift of .575" / .650" for versatile performance
• Valve Guides: Manganese Bronze for durability and reduced friction
• Pushrod Diameter: 5/16" ensuring proper fit and function
• Hardened Steel Guideplate: for strength and reliability

Installation Notes:

• Hardened pushrods required; use Edelbrock #9632 for flat tappet applications.
• 289-302 V8s require Head Bolt Bushings #9680 and Head Bolt Kit #8552 (7/16").
• Recommended spark plugs are Champion RC12YC or equivalent.
• Bare heads require final sizing and a valve job to match the used valves.

Compatibility:

This cylinder head is compatible with Small Block Windsor engines including:
- 289 (4.7L)
- 302 (5.0L)
- 351 (5.8L)

Enhance Your Engine's Potential:

The Edelbrock Cylinder Head E-205 is the perfect choice for those looking to upgrade their engine performance. With its complete assembly and high-quality components, it's designed to handle mechanical flat tappet and hydraulic roller camshaft applications effectively. Upgrade your setup today and experience the difference!
