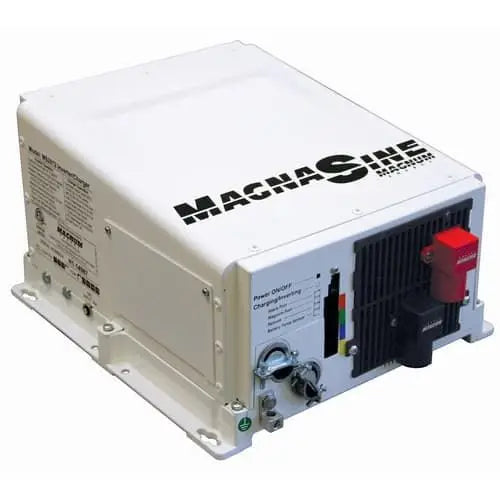

DMX Power MS4024-L Power Inverter/ Battery Charger
DMX Power MS4024-L Power Inverter/ Battery Charger
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
DMX Power MS4024-L
For 24 Volt Batteries featuring 18 To 33.6 Volt DC Input Voltage and 5800 Watt Peak Power/ 4000 Watt Output Power/ 33.3 Amp Output Current.
Features & Benefits
- Battery profile presets: using the me-rc, me-arc or me-mr remote controls, easily choose from and set standard battery profiles, including lithium iron phosphate (lfp)
- Power factor corrected(pfc) charger is built into all of inverter and chargers. It uses less energy from a generator than a standard charger- using 25-30 percent less ac current than standard charger
- Expanded transfer relay: 60 amp transfer service on all models
- Power on or off switch: a momentary pushbutton switch that alternately turns the inverter on or off
- Led indicator: this green led illuminates to provide status information on inverter or charger operation
- Its die cast baseplate with one-piece aluminum cover ensures maximum durability with minimum weight, as well as a cooler, more efficient operation
- Limited 3 year warranty
- 18 to 33.6 volt dc input voltage
- 5800 watt peak power/ 4000 watt output power/ 33.3 amp output current
- 93.7 Percent Efficiency
- -20 degree celsius to 60 degree celsius operating temperature
- Aluminum Cover
- ETL Listed To UL/cUL 458/ CSA C22.2 No. 107.1-01/ Meet KKK-A-1822E
- Lithium iron phosphate (lfp) battery setting
- Remote On/Off Capable
- Over current protection/ over temperature protection on transformer/ mosfet and battery
- On/ off invertor mounted switch with easy to read led indicator
- 13-3/4 inch Length x 12.65 inch Width x 8 inch Height
- With red and black dc terminal covers with phillips screw/ ac access cover with phillips screw/ two 5/16 inch flange nuts
Specifications
| Color | Green/Red/Black |
| Material | Aluminum Cover |
| Weight | 60 lb |
| Dimensions | 19 x 15 x 13 in |
| Brand | DMX Power |
| Manufacturer Part Number | MS4024-L |
| UPC | 892608001127 |
