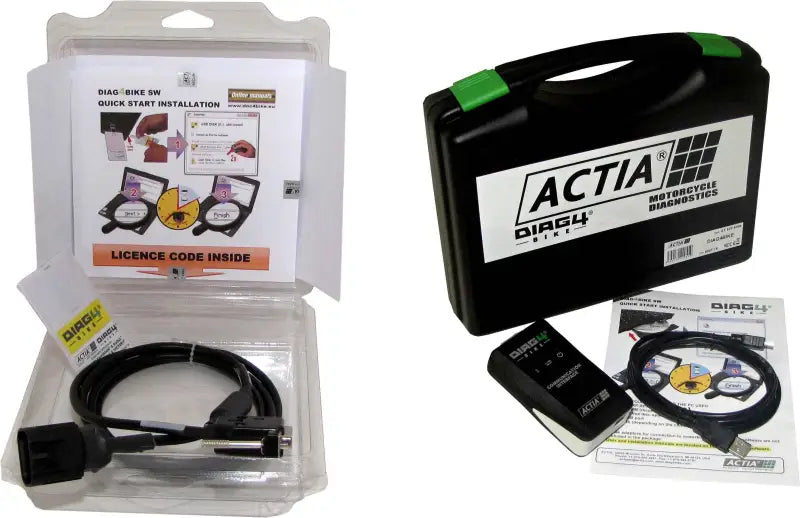

AT 531 5095 Diag4 Bike Serial Diagnostic System Ind Software W/Bluetooth Interface

Professional diagnostic tool for Harley Davidson & Buell workshops and tuning centers. Diagnoses electronic fuel injection module (EFI) and others (Security modules, ABS, etc.) through the diagnostic connector. The system consists of a communication interface with Harley-Davidson adapter, USB cable for connection to your Laptop (PC) and software compatible with Windows XP, Vista, 7, 8 and 10. A wireless Bluetooth version of the interface is also available. An adapter for CAN-BUS models is included. The system performs the following functions and more. Software for Indian and Victory is also available.
Features:

• Ignition Module


• EFI (Electronic Fuel Injection Module) - All models


• TSSM (Turn Signal Security Module)..............Key FOB with button


• HFSM (Hands Free Security Module).............Key FOB without button


• BCM (Body Control Module).............Key FOB without button


• Gauges (Speedo, Tach and Instrument Module) - All models


• ABS Module (Delphi + CAN models) - All models


• Radio and Audio all models


• Thunder MAX EFI


• Read and Clear Diagnostic Trouble Codes......................All models


• Read Identification data (part numbers, VIN number)......All models


• Monitoring real-time data (throttle position, temperature, oxygen sensors, turn signals etc.)


• Test actuators (injectors, coils, main relay, fuel pump, idle, turn signals, tachometer, lamps etc.)


• Buell diagnostics are incorporated in Harley-Davidson diagnostics


• Unit of measure selection metric/standard


• Communication interface is CAN ready (models with 6-pin connector)


• Module replacement –TSM, TSSM, HFSM, BCM,


• ABS Service (Bleeding and configuration, Delphi + CAN models) - All models


• ACR (Automatic compression release during starting)


• Cruise Control, Exhaust actuator, EITMS......enable/disable


• Side Stand Switch Configuration - All Models


• Intake Solenoid Valve Configuration on CAN Models


• Radio customization-region code and speaker configuration, radio pairing


• J&M Audio Configuration


• ABS Telltale Configuration on CAN Models


• Idle speed adjustment 800 - 1200 rpm (models with Delphi Electronic Fuel Injection Module)


• TSSM Customization......PIN read/change, Auto arming disable/enable etc.


• HFSM Customization......Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change, Side car and Service Mode (disable/enable)


• BCM Customization........Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change, Lights configuration, keyless ignition


• Disarming (HFSM/BCM module)........PIN read/FOB assignment on armed bike (for BCM modules a CAN disarming cable is needed)


• Buell TPS adjustment


• Dataloging


• ABS Module (embedded/not embedded)


• Speedo module pairing


• Wheel size adjustment (Speedo calibration)


• Odometer unit setting
