260-8555 Wilwood Brakes Brake Master Cylinder Tandem

260-8555 Wilwood Brakes Brake Master Cylinder Tandem

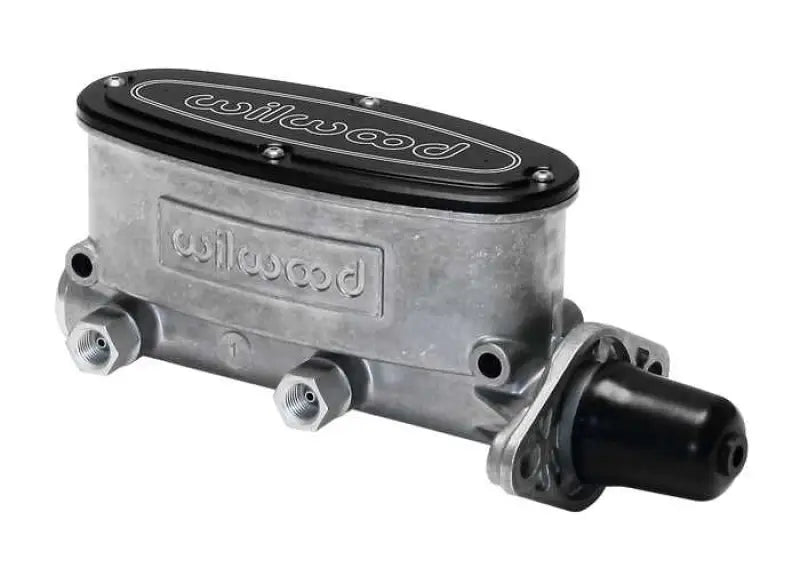

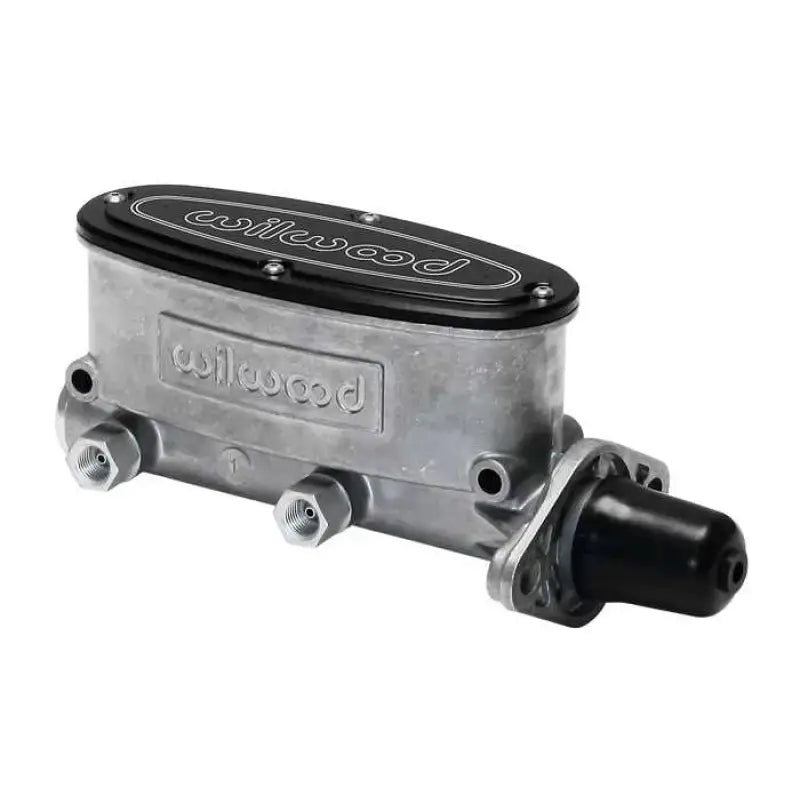

Experience the ultimate in braking performance with the Wilwood Tandem Aluminum Master Cylinder. Designed to meet the needs of both manual and power-assisted braking systems, this master cylinder offers unmatched versatility and efficiency.

Key Features:

• Three Bore Sizes: Available in 7/8 inch, 1 inch, and 1.125 inch to suit various applications.
• Lightweight Design: Weighs only 3 lbs, achieving a 75% weight reduction compared to traditional cast iron master cylinders.
• Durable Construction: Machined from high-pressure die castings for reliability and longevity.
• Fluid Outlet Ports: Features fluid outlet ports on both sides of the bore for enhanced adaptability.
• Stroke and Volume Ratio: Stroke is set at 1.10 inches with a volume ratio of 2:1 between the primary and secondary chambers.
• Mount Compatibility: Designed for mount flanges from 3.22 inches to 3.40 inches, fitting most domestic cars and trucks from the mid-1960s to present.
• Reservoir Included: Comes with a reservoir for easy installation and operation.

Bore Size Options:

• 7/8 Inch: Ideal for manual applications and includes a pushrod.
• 1 Inch: Suitable for both manual and power-assisted applications; does not include a pushrod.
• 1.125 Inch: Primarily designed for power brake applications, compatible with vacuum or hydraulic assist systems.

Upgrade your braking system with the Wilwood 260-8555 Brake Master Cylinder and enjoy improved performance and reliability. Whether you're driving a classic car or a modern truck, this master cylinder is engineered to elevate your vehicle's braking capabilities.
