00-00803-300 Intellitec Power Transfer Switch Relay Used To Transfer
00-00803-300 Intellitec Power Transfer Switch Relay Used To Transfer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Check with Manufacturers Guides
Delivery and Shipping
Delivery and Shipping
At our website, we pride ourselves on swift delivery and shipping. Our standard processing time is by 12 PM Pacific Standard Time, ensuring most orders ship out on the same day when processed before noon. Plus, enjoy the added benefit of free ground shipping on all orders. For those who need their items even faster, we offer expedited shipping options, and you can also opt for convenient in-store pickup.
00-00803-300 Intellitec Power Transfer Switch Relay Used To Transfer
Intellitec
Number one Selling Products

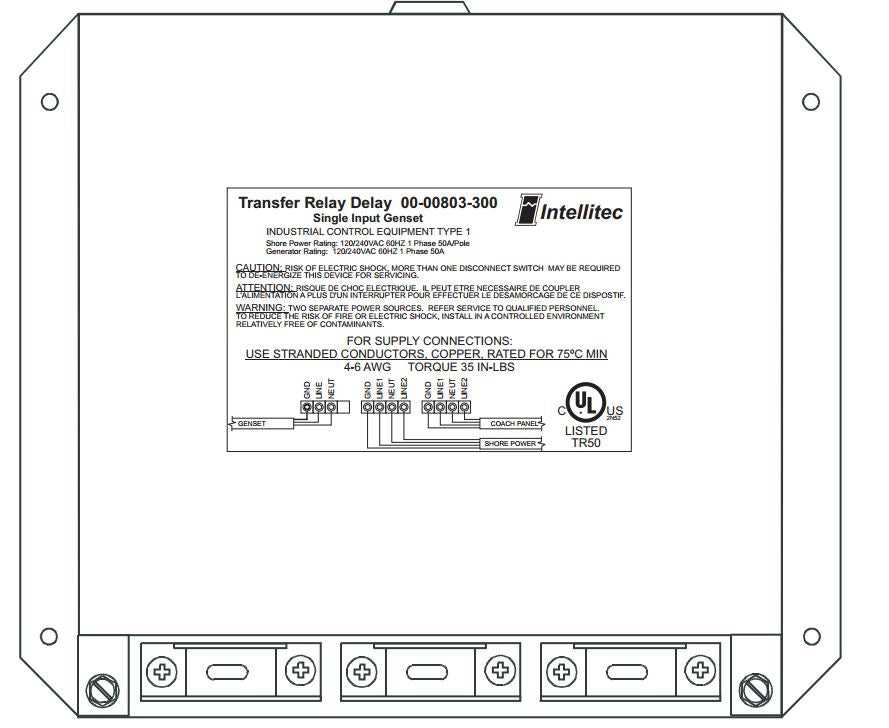

00-00803-300 Intellitec Power Transfer Switch Relay
The 50 Ampere Transfer Relay is used to transfer the power source of a coach between the shore power and the generator. Power from the shore power cord is fed to the normally closed contacts of two contactors. This allows the power from both lines of the shore cord to pass through into the coach distribution panel. Power from the generator is fed to the normally open contacts and to a delay circuit on the printed circuit board. When the power from the generator is applied, the delay circuit senses the power from Line 1 and applies DC power to the contactor coils, after approximately 15 Seconds. This pulls in the two contactors, applying the power from the generator to the coach.
Used To Transfer The Power Source Of A Coach Between The Shore Power And The Generator
Power From The Shore Power Cord Is Fed To The Normally Closed Contacts Of Two Contactors
Allows The Power From Both Lines Of The Shore Cord To Pass Through Into The Coach Distribution Panel
Power From The Generator Is Fed To The Normally Open Contacts And To A Delay Circuit On The Printed Circuit Board
Limited 90 Day Warranty
